General |
|
| Transducer beamwidth | 20° x 135° |
|---|---|
| Transducer cable length | 20 ft |
| Transducer number of pins | 21 |
| Dimension | GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LiveScope Plus LVS34-IF transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm) |
| Weight | GLS 10 sonar black box: 4.3 lbs (2.0 kg) |
| Water rating | IPX7 |
| Temperature range | GLS 10 black box: Operating: -15° C to 70° C LiveScope Plus LVS34-IF transducer: Operating: 0° C to 40° C |
Electrical Features |
|
| Power input | 10-32 V |
|---|---|
| Power usage | 21 W typical, 58 W max |
| Fuse | 10 A |
| Compass-safe distance | 4" (0.1 m) |
Sonar Features |
|
| Frequency | 530 - 1,100 kHz |
|---|---|
| Transmit power | 500 W |
| Maximum depth | Down and Forward: 200’ (61.0 m) |
| Sonar Type | Live |
| Target Separation @ 100' | 14" |
Networking & Connections |
|
| Garmin Marine Network Ports | 1 (small connector) |
|---|---|

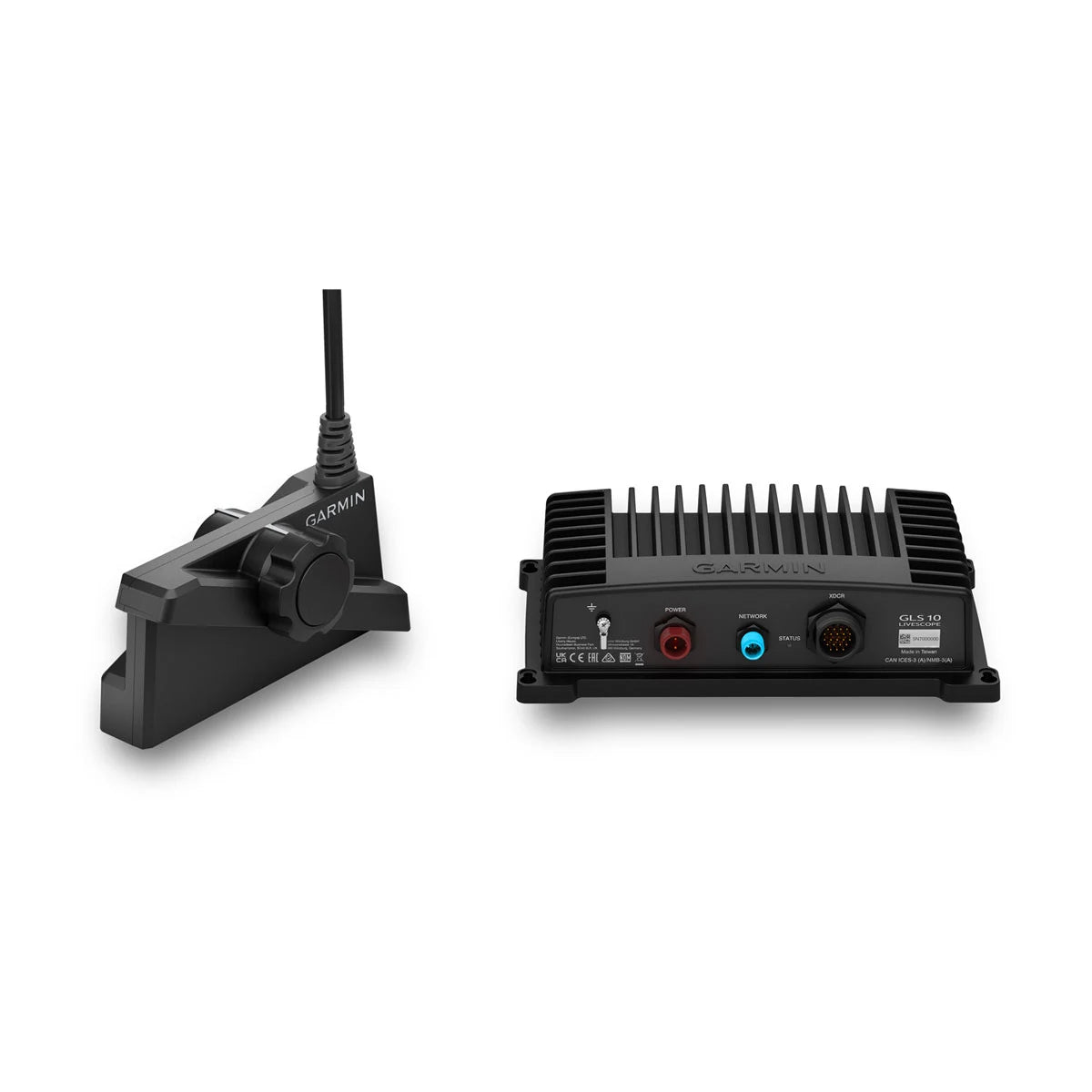

LiveScope™ Plus Ice Fishing System
