General |
|
| Dimension | 10.4" x 6.5" x 3.2" (26.4 x 16.6 x 8.0 cm) |
|---|---|
| Weight | 2.9 lbs (1.3 kg) |
| Water rating | IPX7 |
| Touchscreen | |
| Display Type | WSVGA, TN |
| Display Size | 7.8" x 4.5", 9.0" (19.8 x 11.5 cm, 22.9 cm) |
| Display resolution | 1024 x 600 pixels |

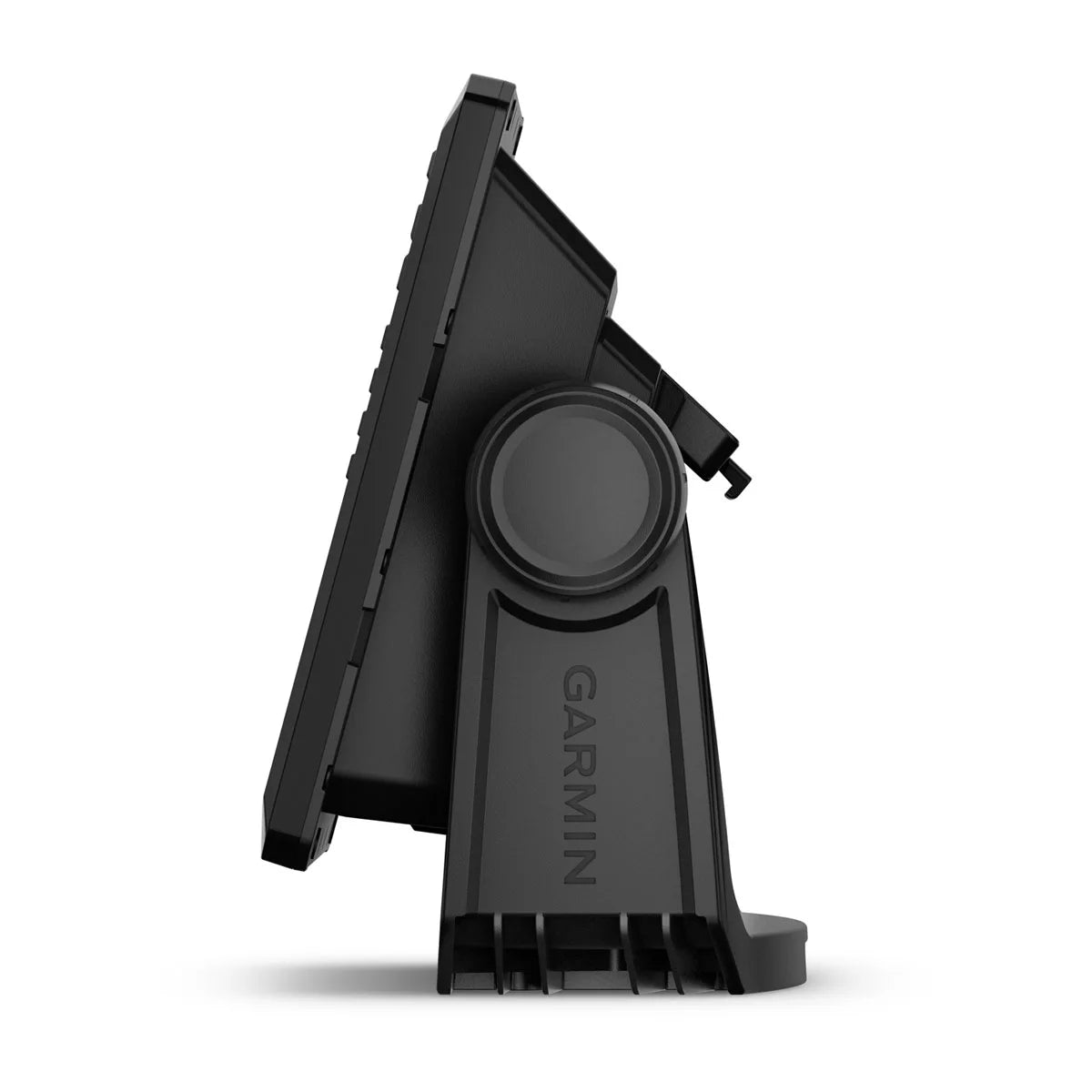

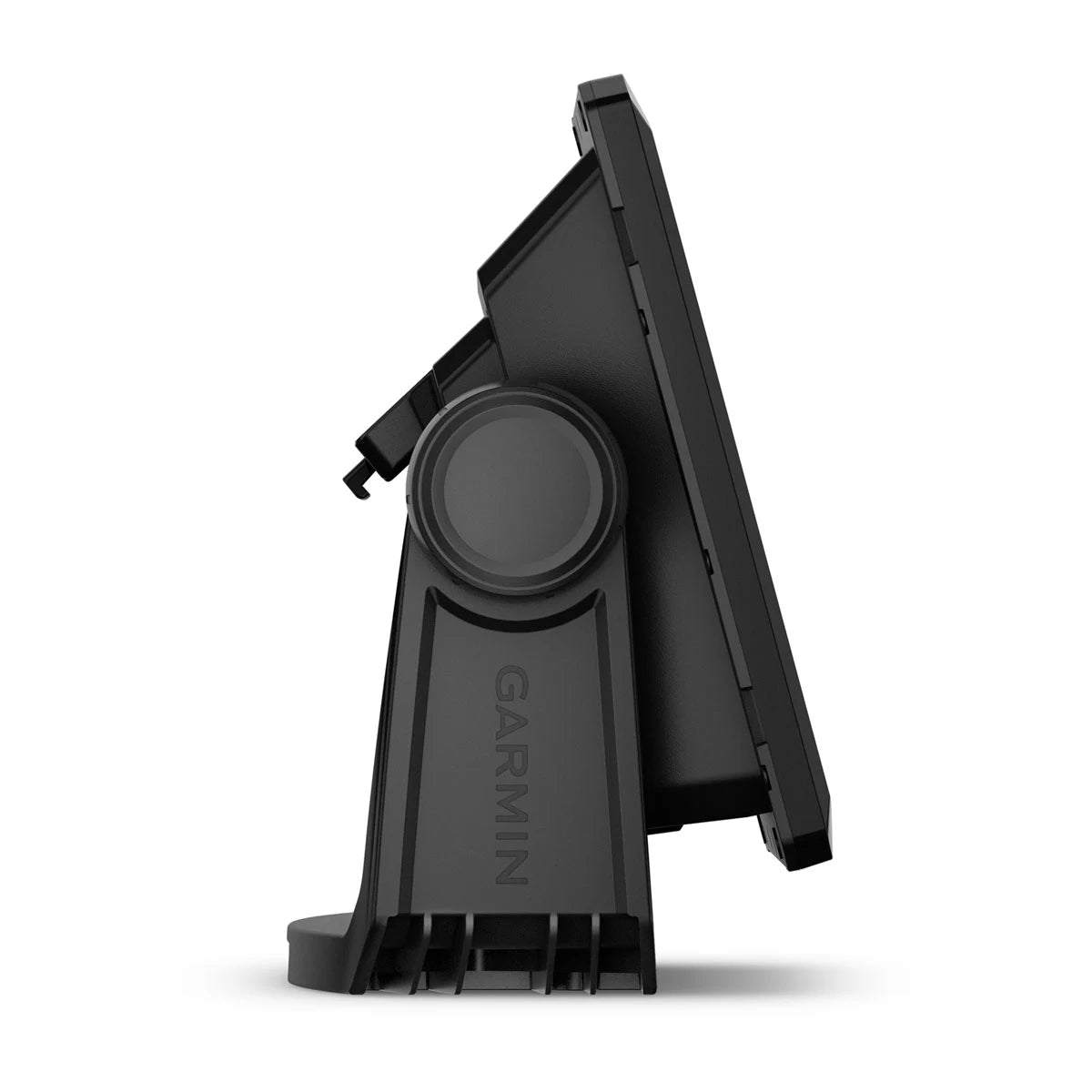

| Mounting Options | Bail or flush |
| Input | Touchscreen with keyed assist |
Maps & Memory |
|
| Accepts Data Cards | 1 microSD™ card; 32 GB maximum size |
|---|---|
| Waypoints | 5,000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors |
|
| GPS | |
|---|---|
| GLONASS | |
| Galileo | |
| BeiDou | |
| Has built-in receiver | |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | |
| Supports WAAS | |
| Supports multi-band, multi-constellation GPS | |

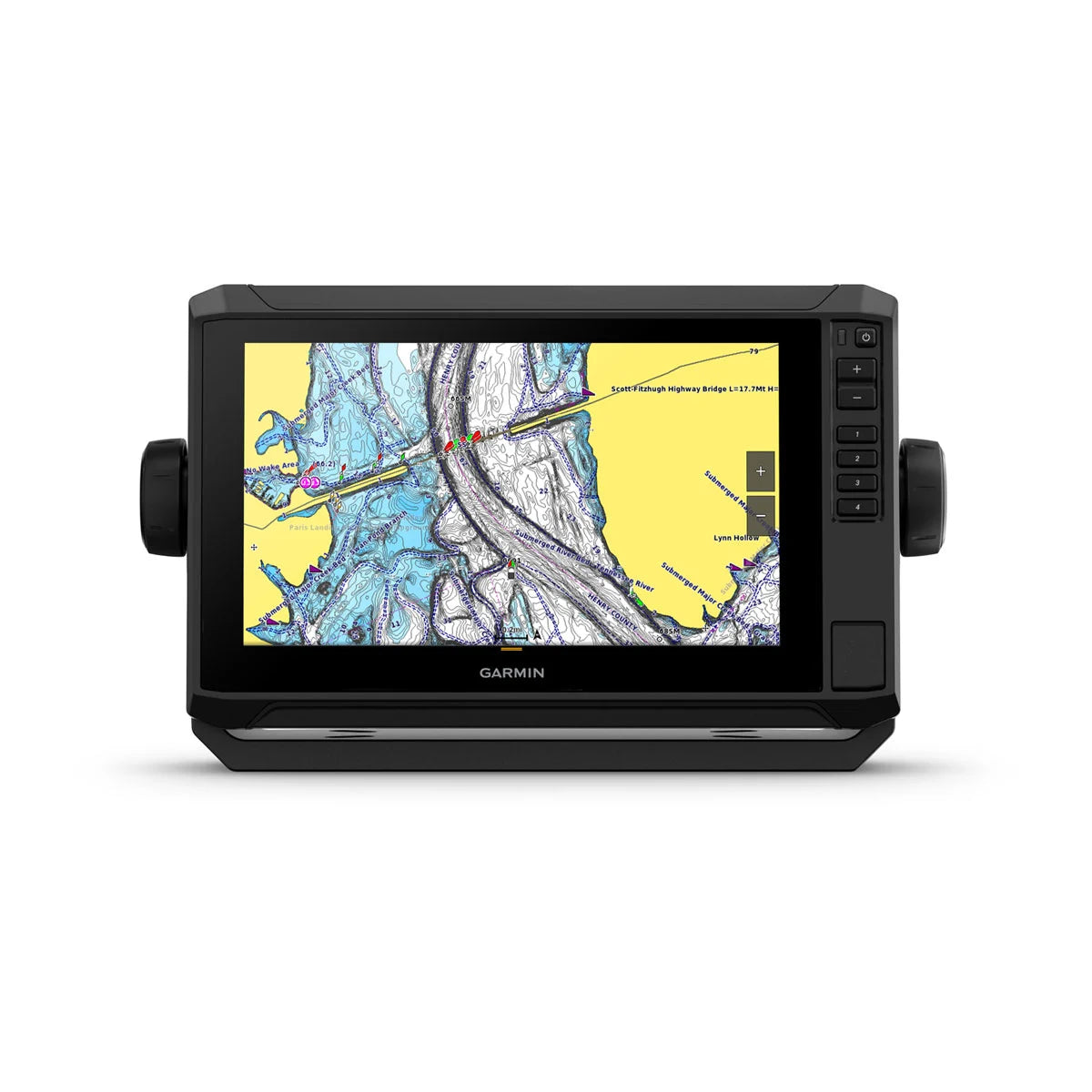

Built-in Maps |
|
| Built-in Auto Guidance+ | yes (downloadable via ActiveCaptain app) |
|---|---|
| Garmin Navionics+ Inland & Coastal | yes (see Additional) |
| Garmin Navionics+ (Coastal) | yes (see Additional) |
| Garmin Navionics+ (Inland) | yes (see Additional) |
| Tide tables | yes (see Additional) |
Optional Map Support |
|
| BlueChart g3 | |
|---|---|
| BlueChart g3 Vision | |
| LakeVü g3 | |
| LakeVü g3 Ultra | |
| Garmin Navionics+™ | |
| Garmin Navionics Vision+™ | |
| TOPO 100K | |
| Standard Mapping | |
| Garmin Quickdraw Contours | |
Chartplotter Features |
|
| AIS | |
|---|---|
| DSC | |
| Supports Fusion-Link™ compatible radios | |
| ActiveCaptain® compatible | |
| Sailing Features | |
Electrical Features |
|
| Power Input | 9 to 18 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 1.72 A |
| Maximum current draw at 12 Vdc | 3.5 A |
| Maximum power usage at 10 Vdc | 20.7W |
Sonar Features |
|

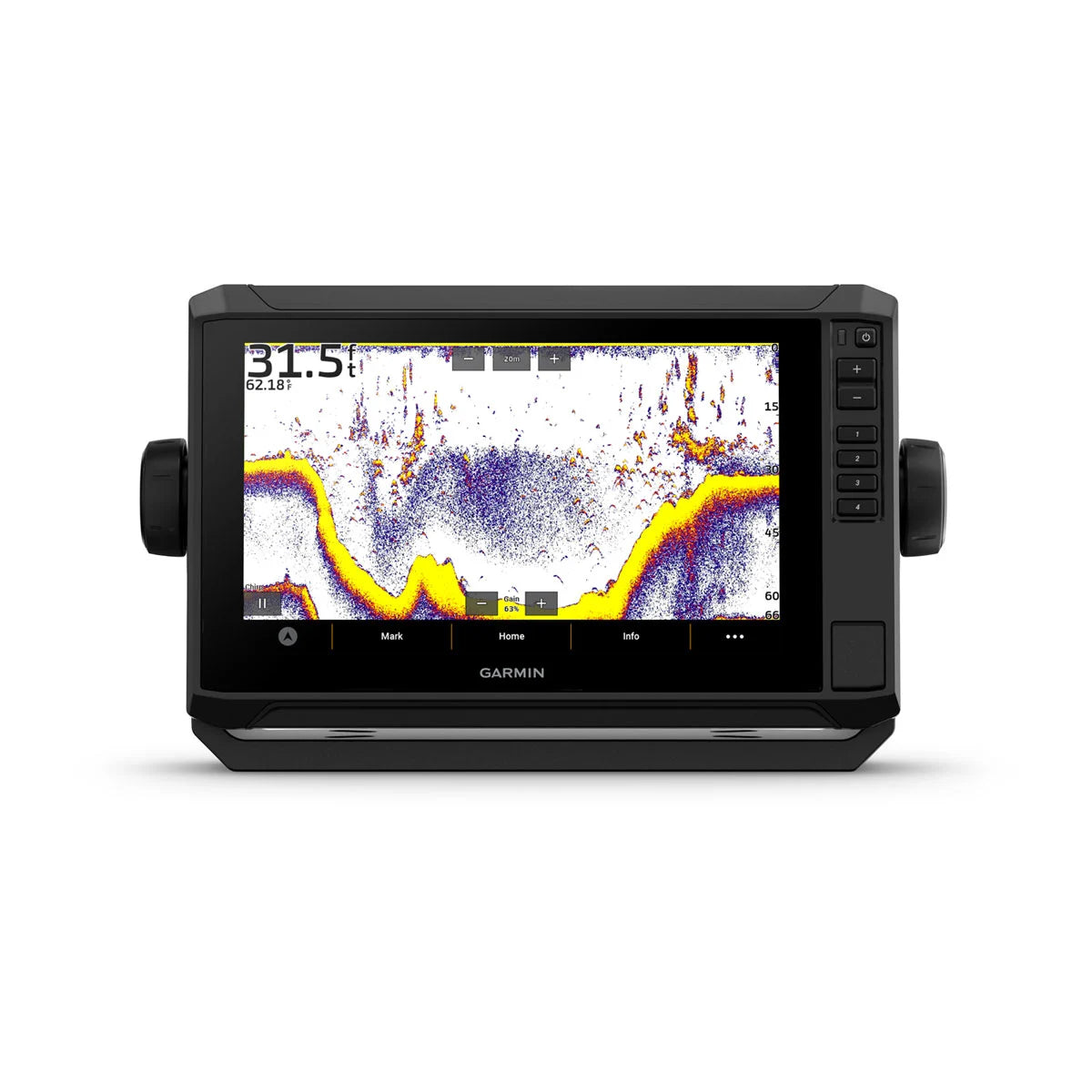

| Displays sonar | |
|---|---|
| Power output | 500 W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |

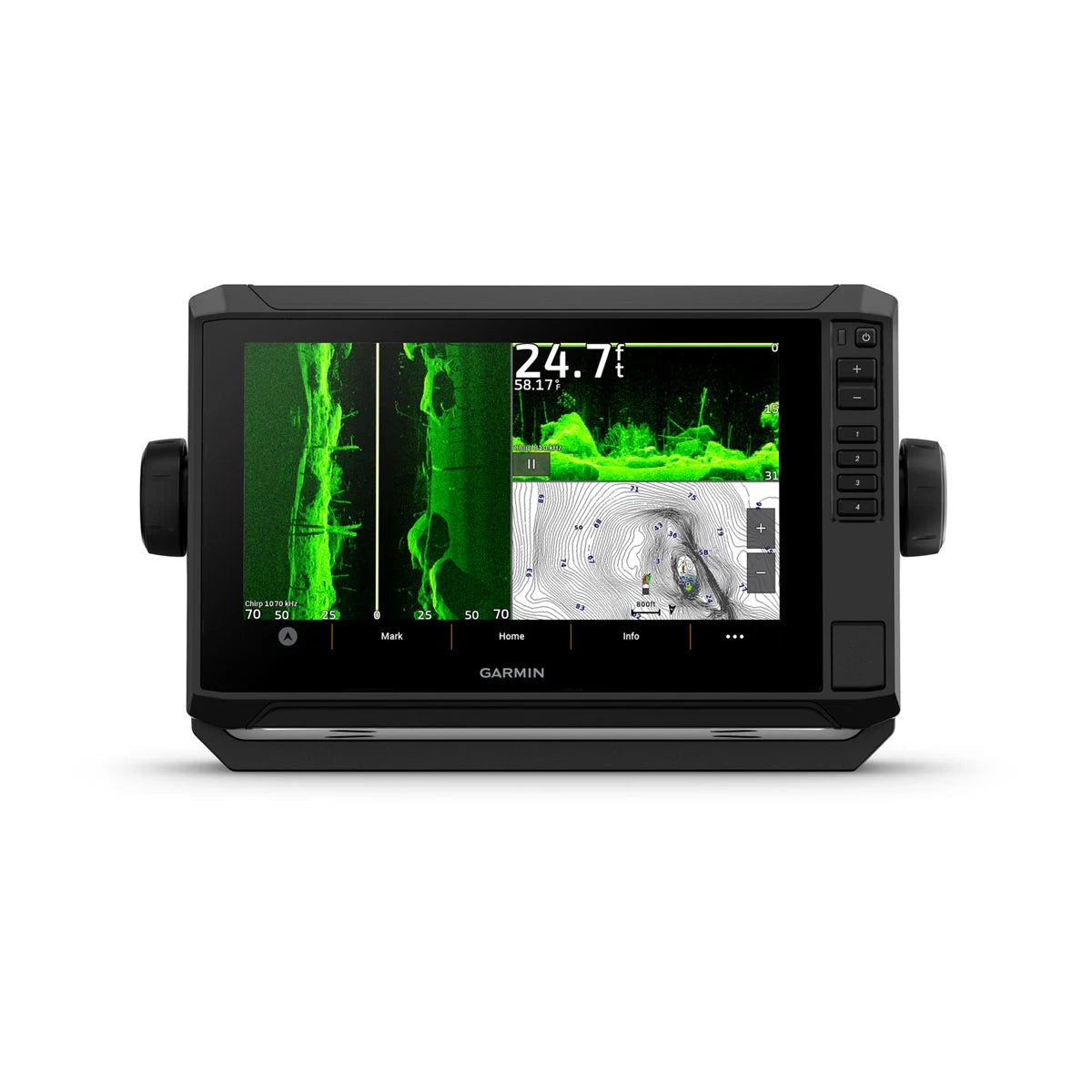

| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | |
| LiveScope | |

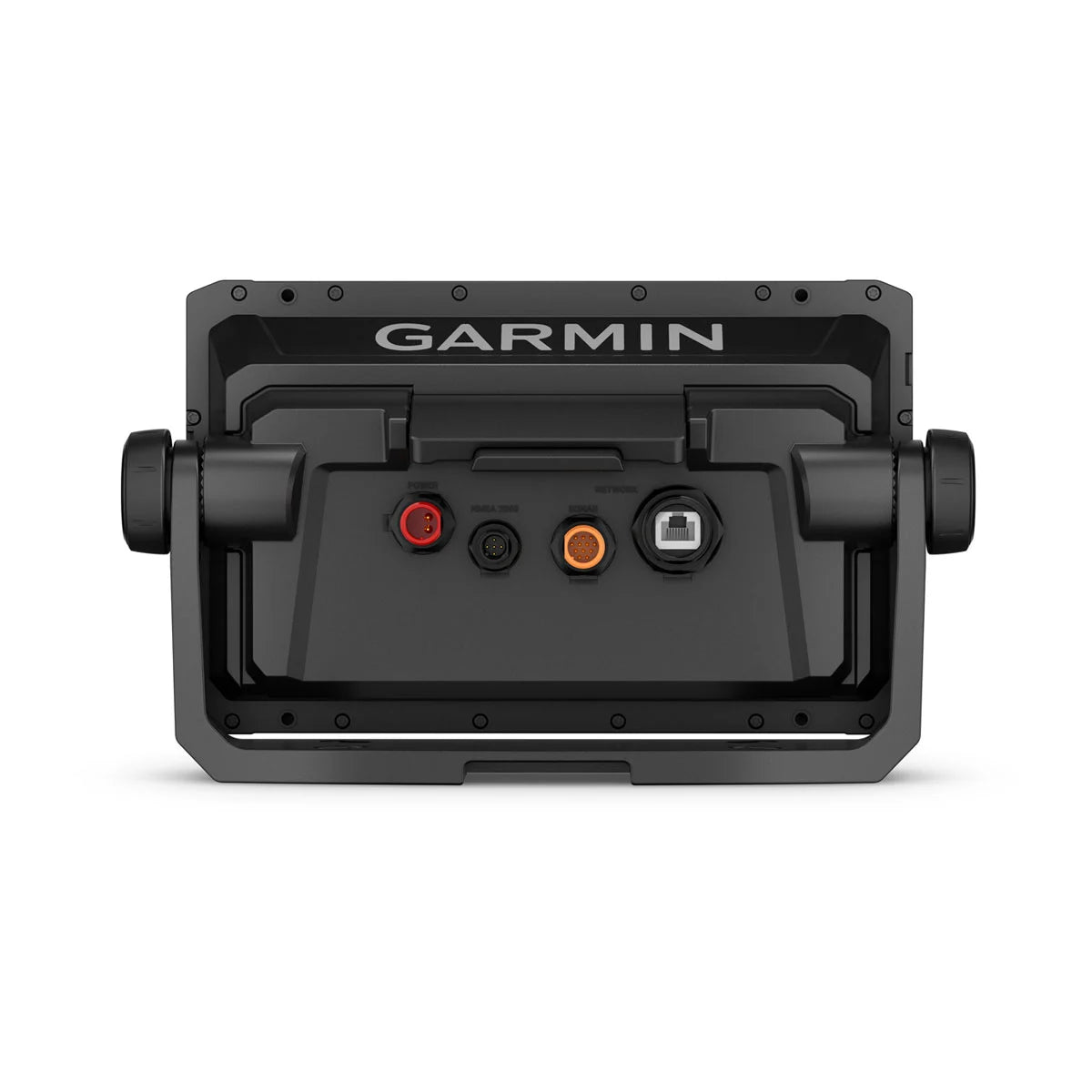

Networking & Connections |
|
| NMEA 2000® ports | |
|---|---|
| Garmin Marine Network Ports | 1 |
| 12-pin transducer ports | 1 |
| Bluetooth® pairing | |
| ANT® (Connectivity) | |
| Garmin Wi-Fi network (local connection) | |
Additional |
|
| Additional |
|
|---|---|

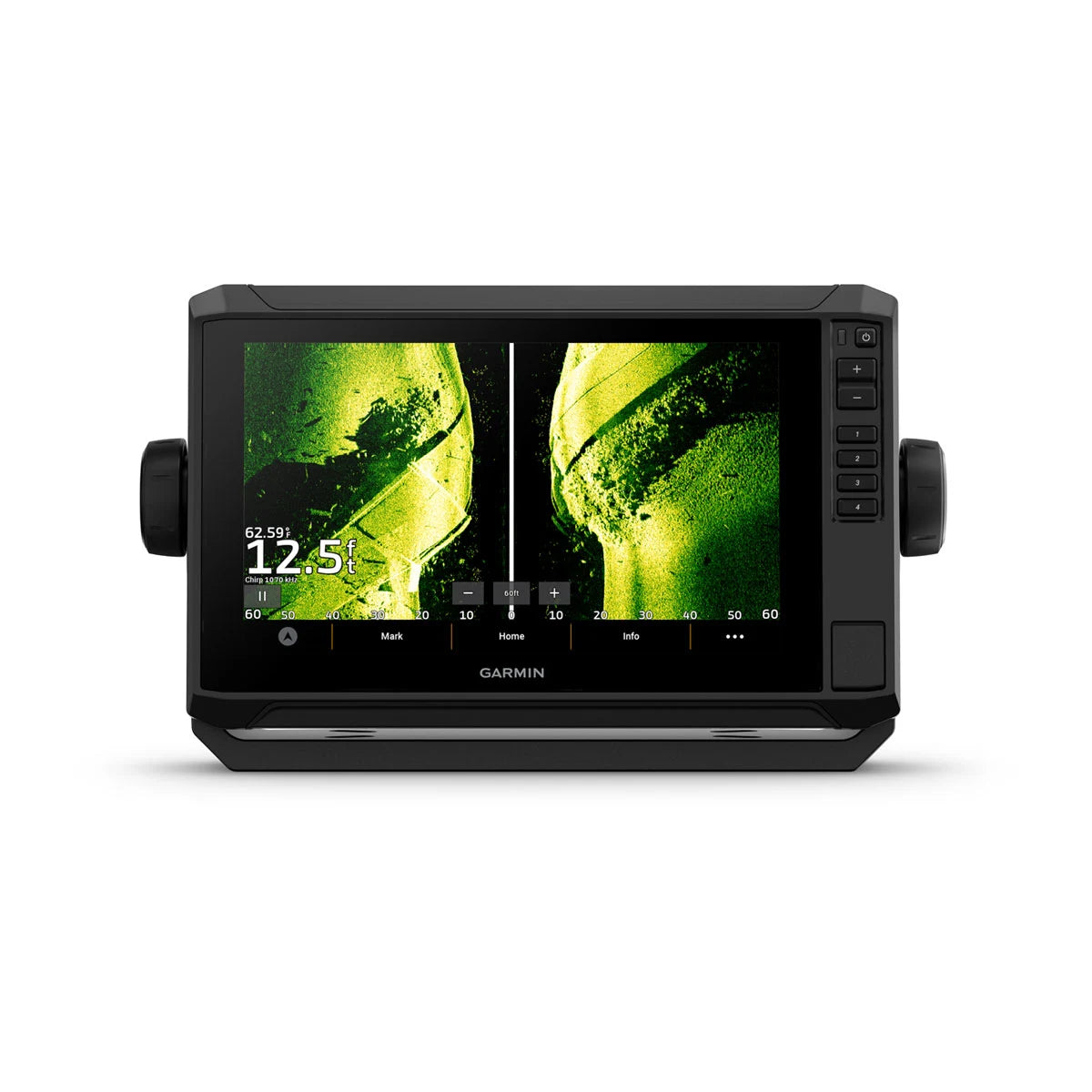

93sv with GT56UHD-TM Transducer and Garmin Navionics+ U.S. Inland Mapping
