General |
|
| Dimension | 10.5" × 9.5" × 10.5" (26.7 × 22.9 × 26.7 cm) |
|---|---|
| Weight | 11.0 lbs (5.0 kg) |
| Water rating | IPX7 |
| Touchscreen | |
| Display Type | WVGA, TN |
| Display Size | 6.1" x 3.4", 7.0" (15.5 x 8.7, 17.8 cm) |
| Display resolution | 800 x 480 pixels |
| Input | Touchscreen with keyed assist |
Maps & Memory |
|
| Accepts Data Cards | 1 microSD™ card; 32 GB maximum size |
|---|---|
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Ice Fishing Details |
|
| Battery type, size | SLA, 7Ah |
|---|---|
| Bag size | S |
| Included transducer | GT10HN-IF |
| Transducer holding feature | Foam float |
Sensors |
|
| GPS | |
|---|---|
| GLONASS | |
| Galileo | |
| BeiDou | |
| Has built-in receiver | |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | |
| Supports WAAS | |
| Supports multi-band, multi-constellation GPS | |
Built-in Maps |
|
| Built-in Auto Guidance+ | yes (downloadable via ActiveCaptain app) |
|---|---|
| Garmin Navionics+ Inland & Coastal | yes (see Additional) |
| Garmin Navionics+ (Inland) | yes (see Additional) |
Optional Map Support |
|
| Garmin Navionics+™ | |
|---|---|
| Garmin Navionics Vision+™ | |
| TOPO 100K | |
| Standard Mapping | |
| Garmin Quickdraw Contours | |
Chartplotter Features |
|
| ActiveCaptain® compatible | yes |
|---|---|
Electrical Features |
|
| Power Input | 9 to 18 Vdc |
|---|---|
Sonar Features |
|
| Displays sonar | |
|---|---|
| Power output | 500 W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | |
| LiveScope | |
Networking & Connections |
|
| NMEA 2000® ports | |
|---|---|
| Garmin Marine Network Ports | 1 |
| 12-pin transducer ports | 1 |
| Bluetooth® pairing | |
| ANT® (Connectivity) | |
| Garmin Wi-Fi network (local connection) | |
Additional |
|
| Additional | Garmin Navionics+ Inland & Coastal: 75sv Canada Garmin Navionics + (Inland): 73sv U.S. Lakes |
|---|---|

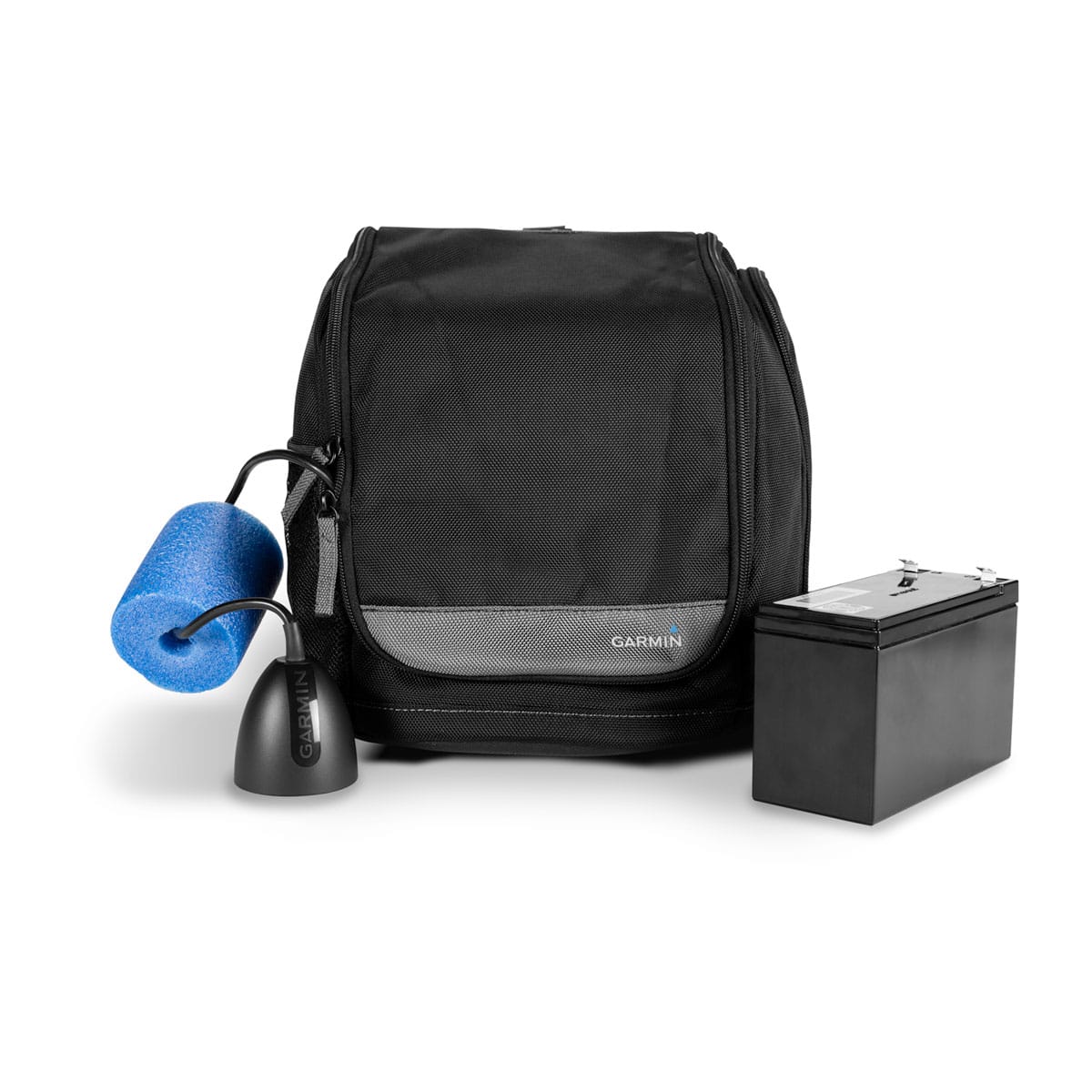

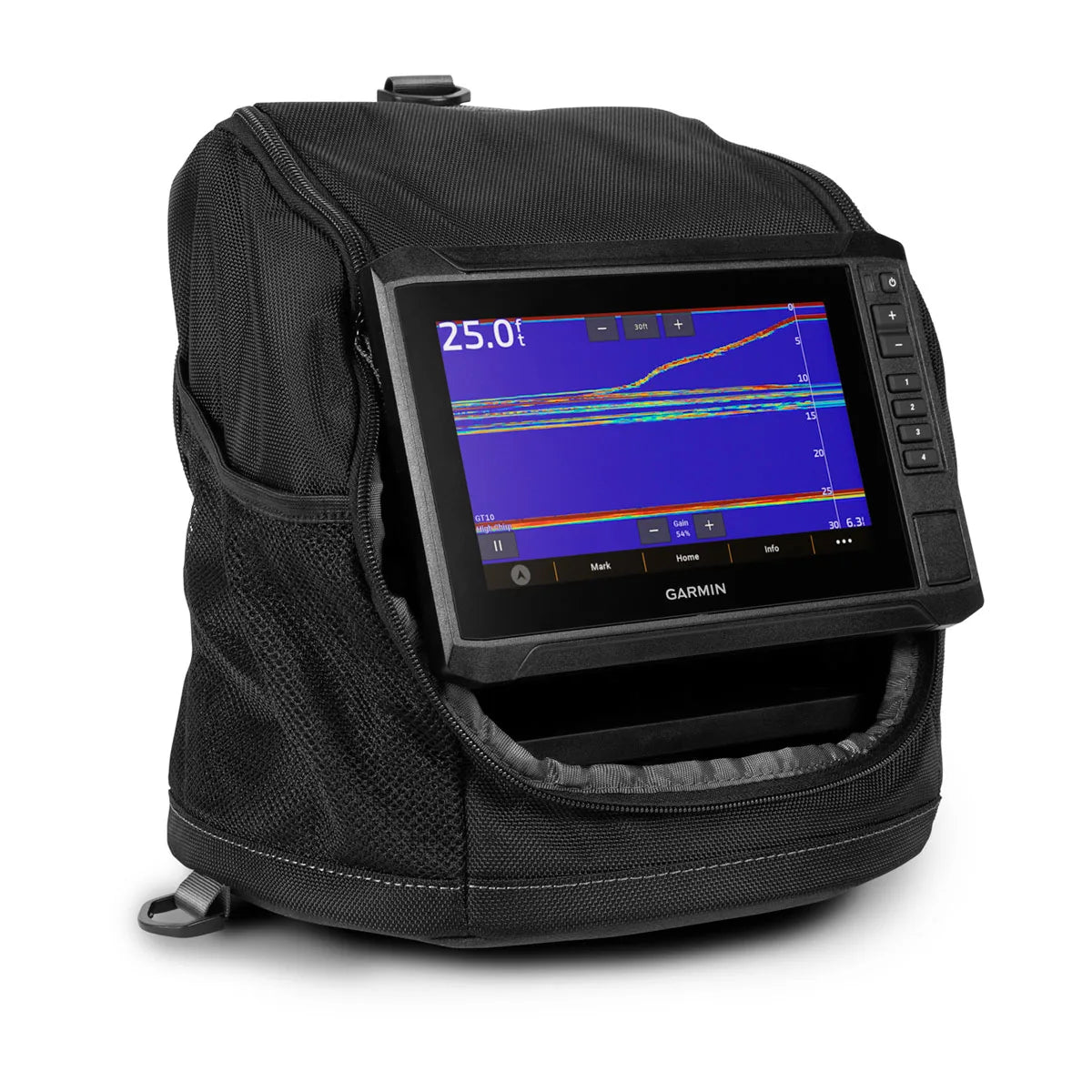

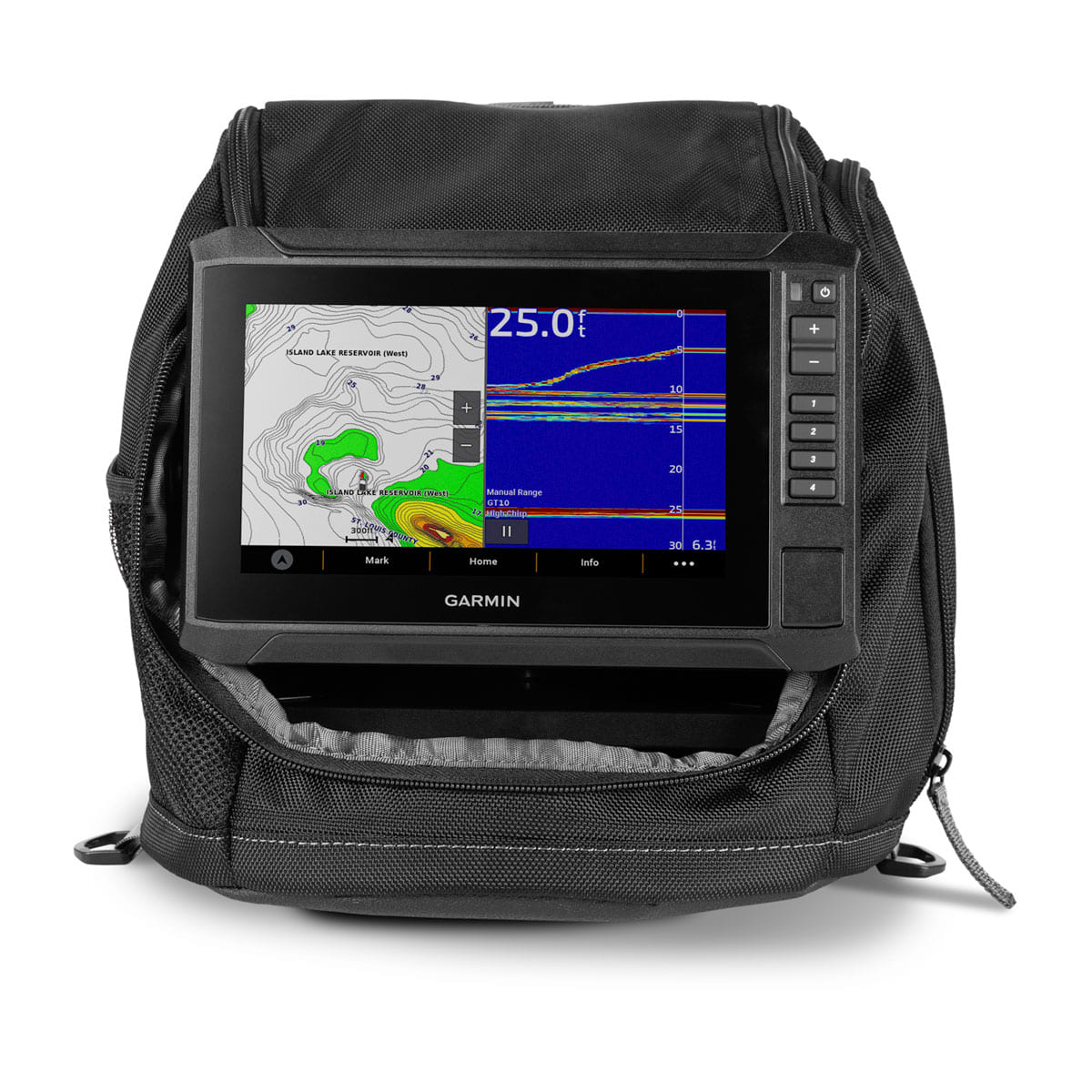

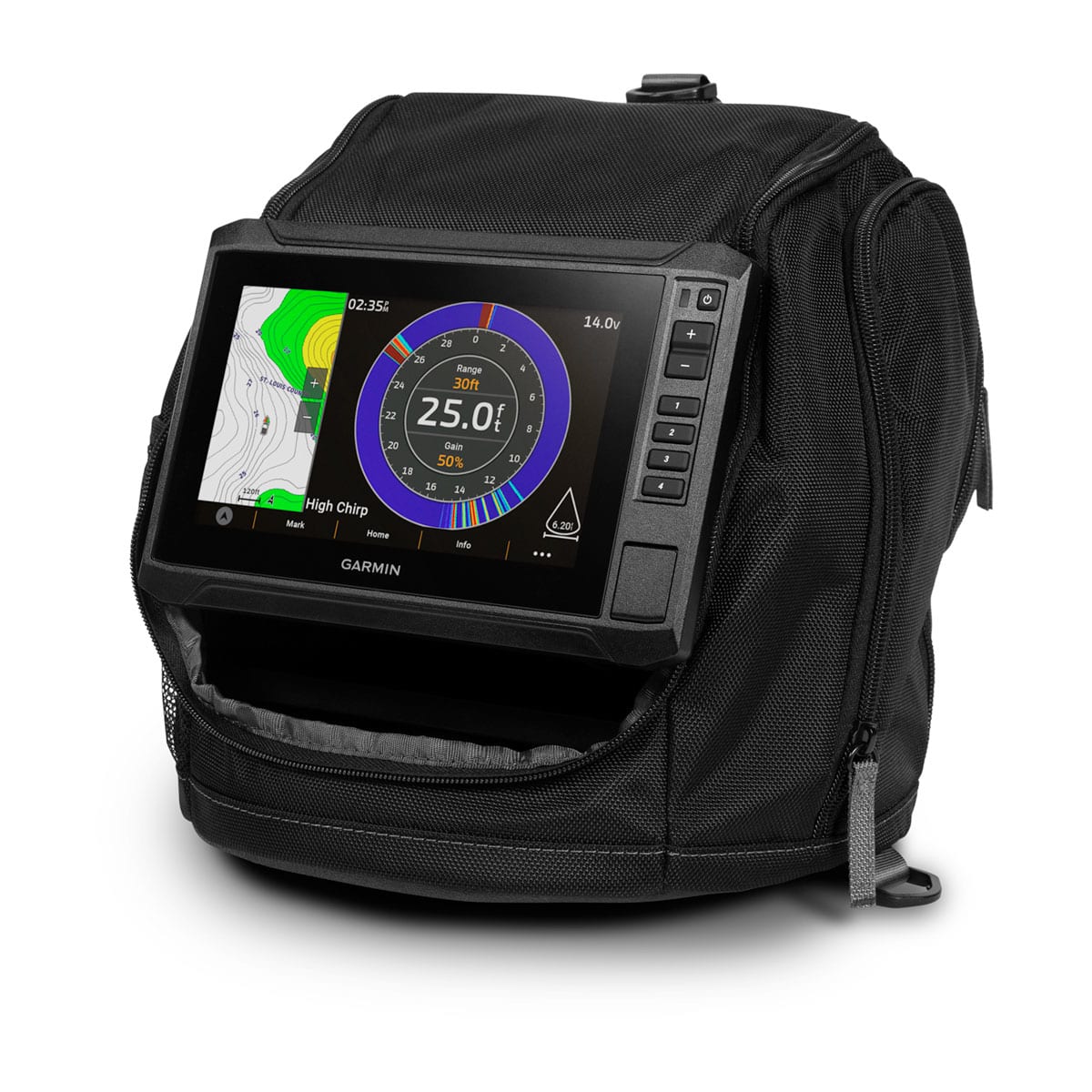

Includes ECHOMAP™ UHD2 73sv and GT10HN-IF Transducer
