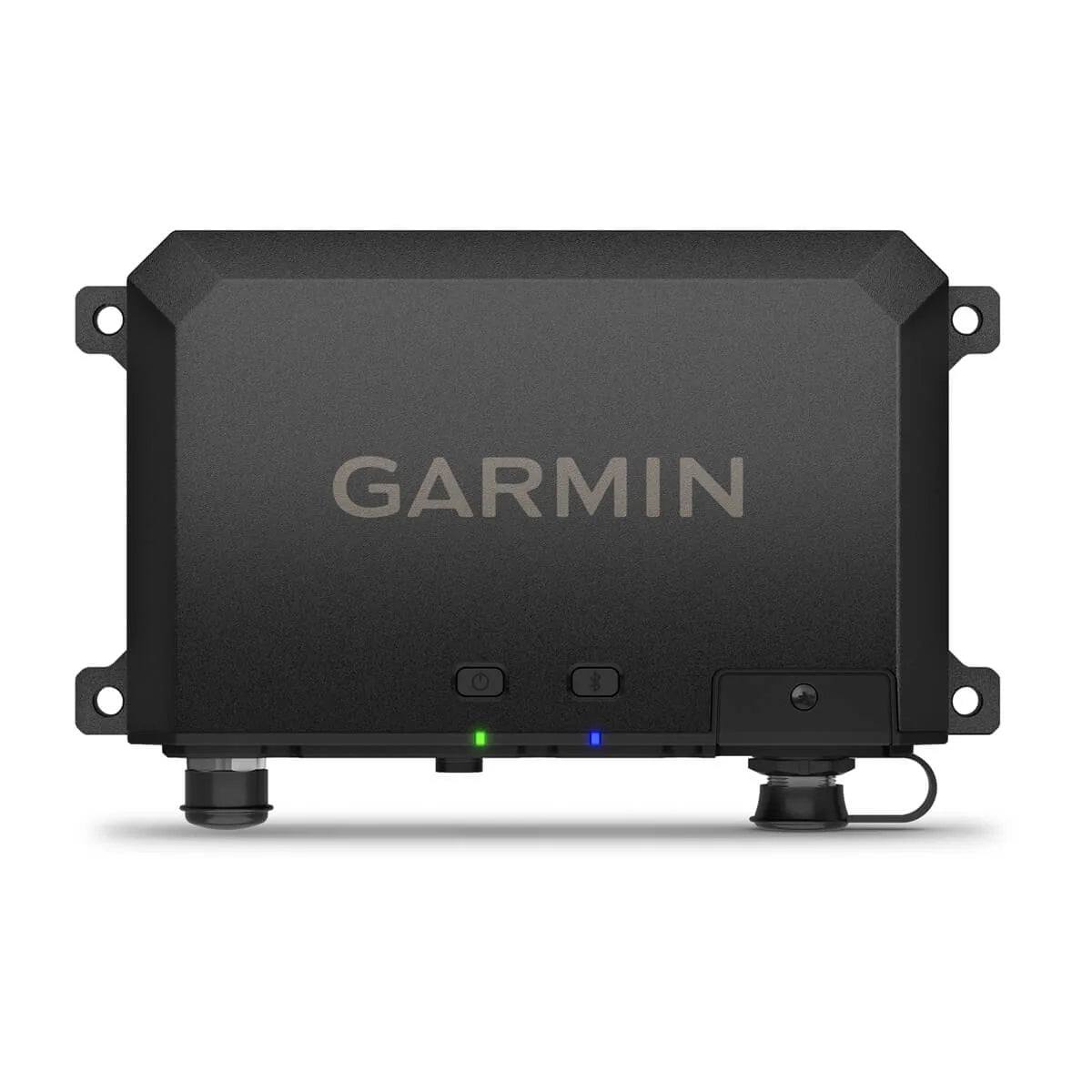

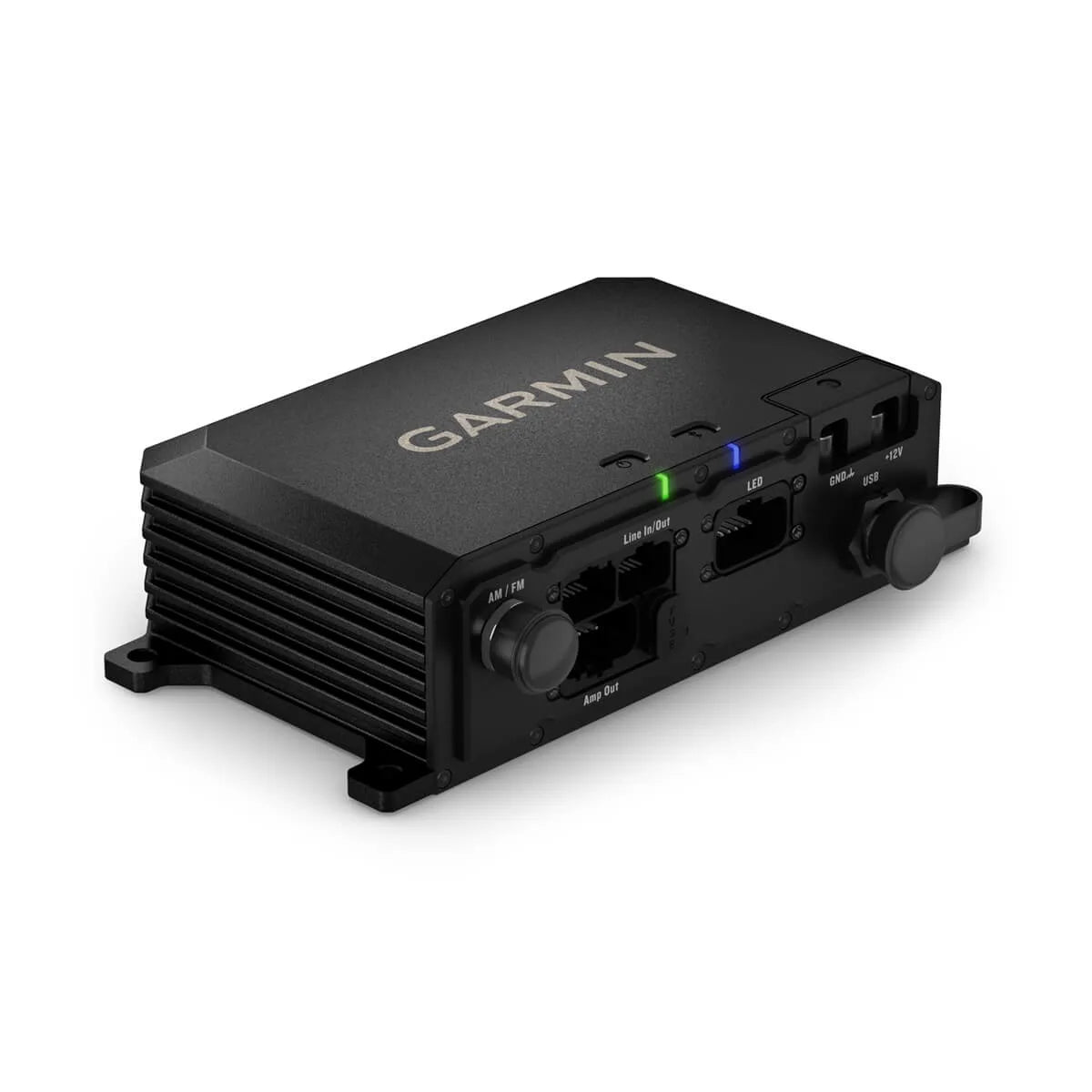

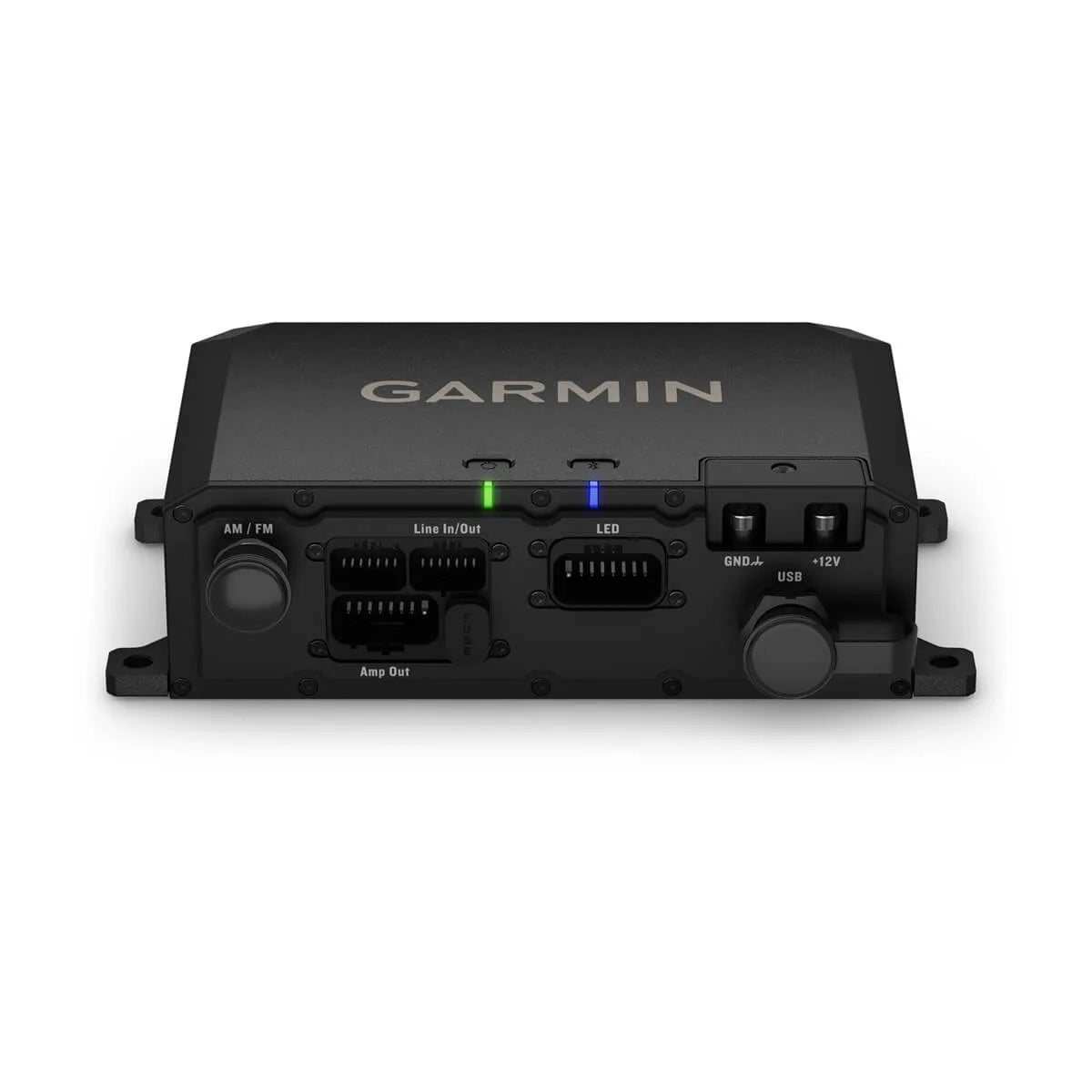

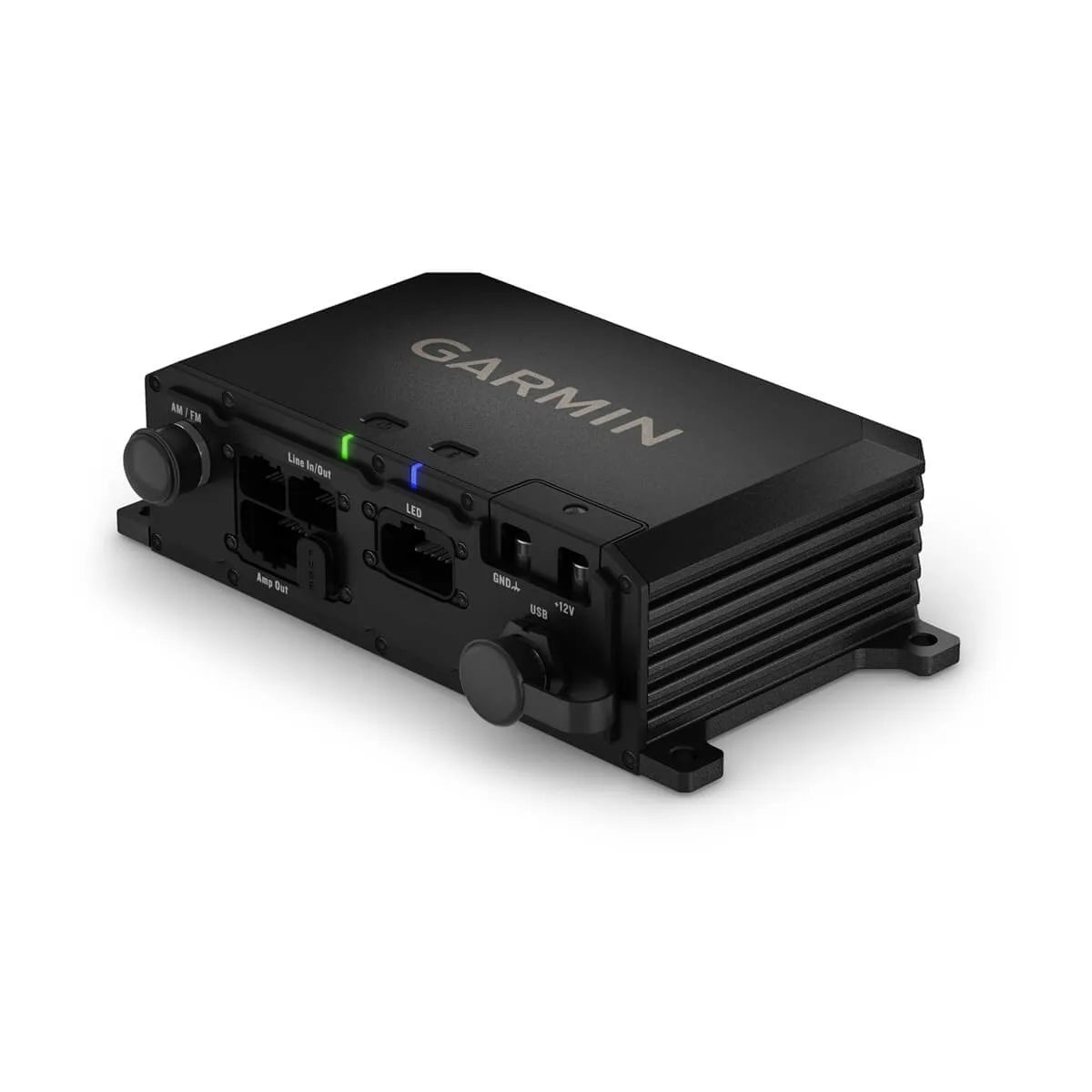

Audio Box |
|
| Weight | 997 g (2.2 lbs) |
| Physical Dimensions (LxWxH) | 210 mm x 130 mm x 55 mm (8.27" x 5.12" x 2.165") |
| Water and dust rating | IP67 |
| Input voltage | 8 to 14.4 Vdc |
| Current (max) | 40 A |
| Current (muted) | less than 650 mA |
| Operating temperature range | -4° F to 158° F (-20° to 70° C) |
| Storage temperature range | -40° F to 185° F (-40° to 85° C) |
| Compass safe distance | 203 mm (8") |
| BLUETOOTH wireless range | up to 10 m (30 ft) |
| ANT wireless range | up to 10 m (30 ft) |
| Fuse | 15 A mini-blade type |
| Peak power (Watts) | Four 200 W per channel |
| RMS power (Watts) | Four 100 W RMS at 14.4 Vdc input, 4 ohm |
| Warranty | 1 year |
Speakers |
|
| Weight | 2.49 kg (5.5 lbs) |
| Physical Dimensions | 177 mm x 233 mm (6.97" x 8.78") |
| Water and dust rating | IP67 |
| Operating temperature range | 32° - 122° F (0° to 50° C) |
| Speaker size | 6.5" |
| Peak power (Watts) | 200 W per speaker |
| RMS power (Watts) | 50 W |
| Sensitivity (1 W/1 m) | 91 db |
| Frequency response | 80 Hz - 18kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 20 - 150 W |
| LED lighting | yes (RGB) |
| LED supply voltage | 10.8 - 16 Vdc |
| LED load current @ 14.4 VDC | 150 mA |
| Voice coil diameter | 30 mm (1.18") |
| Cone material | polypropylene (PP) cone with cloth surround |
| Tweeter type | aluminum dome |
| Supported roll bar sizes | 33.4 mm (1.31") to 50.8 mm (2.00") outer diameter |
| Warranty | 1 year |
| Wiring | 3 m |

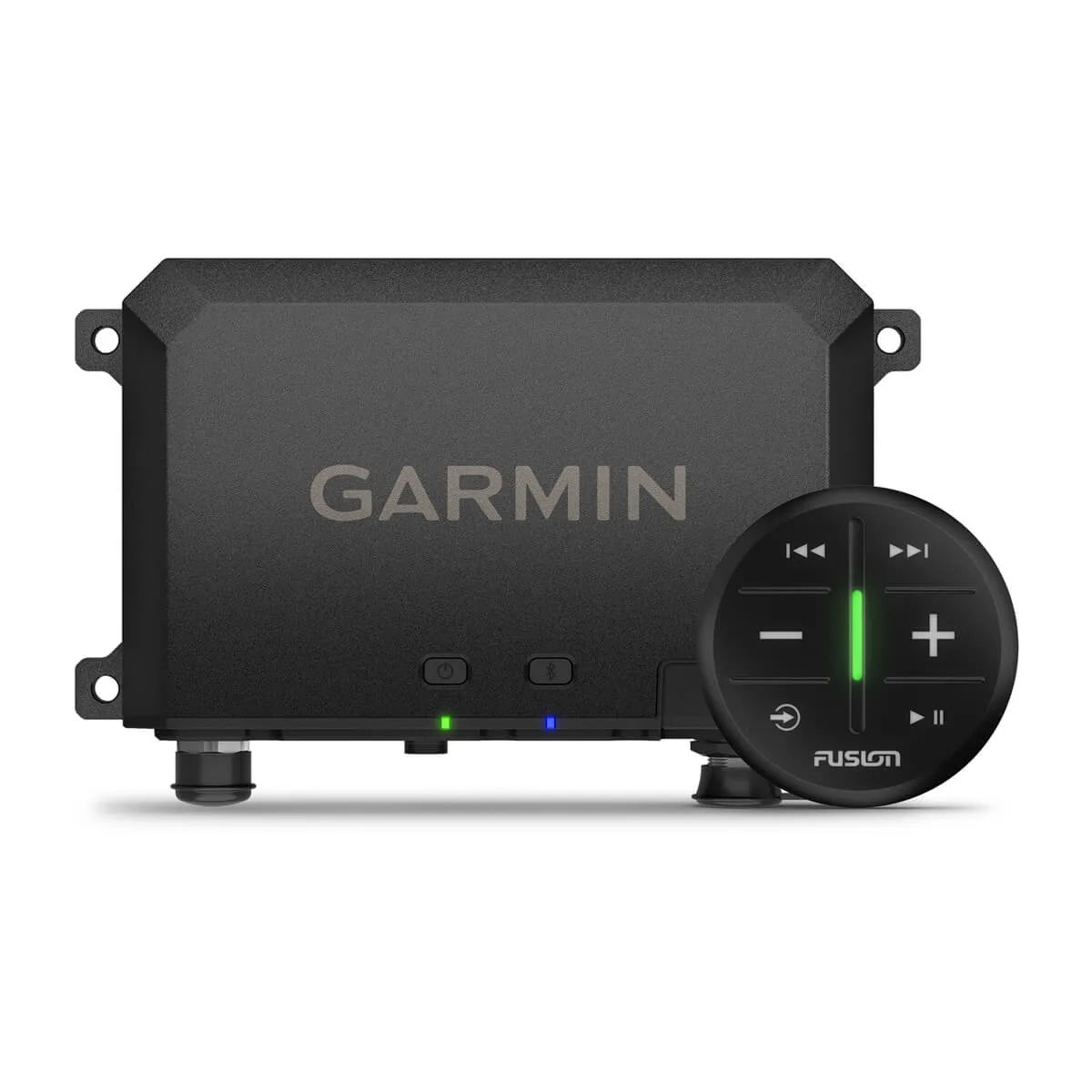

Audio Box with LED Controller
