General |
|
| Operational temperature range | -45° C to +70° C |
| Maximum operating altitude | 55,000 ft |
Physical |
|
| Installed height (including rack) | 3.11" (79.0 mm) |
| Installed width | 3.46" (87.9 mm) |
| Installed depth to connector backshell | 13.32" (338.8 mm) |
| Installed depth to straight connector backshell | 12.84" (326.1 mm) |
| Weight (unit only) | 3.63 lbs (1.65 kg) |
| Weight (with install rack, connector kit, and configuration module) | 4.21 lbs (1.91 kg) |
Power Specifications |
|
| 14 V Typical/Tx | 0.6 A |
| 14 V Maximum/Tx | 0.8 A |
| 28 V Typical/Tx | 0.3 A |
| 28 V Maximum/Tx | 0.4 A |
Performance |
|
| Minimum sensitivity level | -90 dBm |
| Maximum range (line of sight) | 300 nautical miles |
| DME channels | 5 (with compatible avionics) |
| Nominal Transmit Power | 250 watts |
Interfaces |
|
| ARINC 429, RS-232, HSDB, King Serial, Audio Out | |
Certifications |
|
| TSO-C66c DME/N | |
| ETSO-2C66b DME/N Class 1 | |

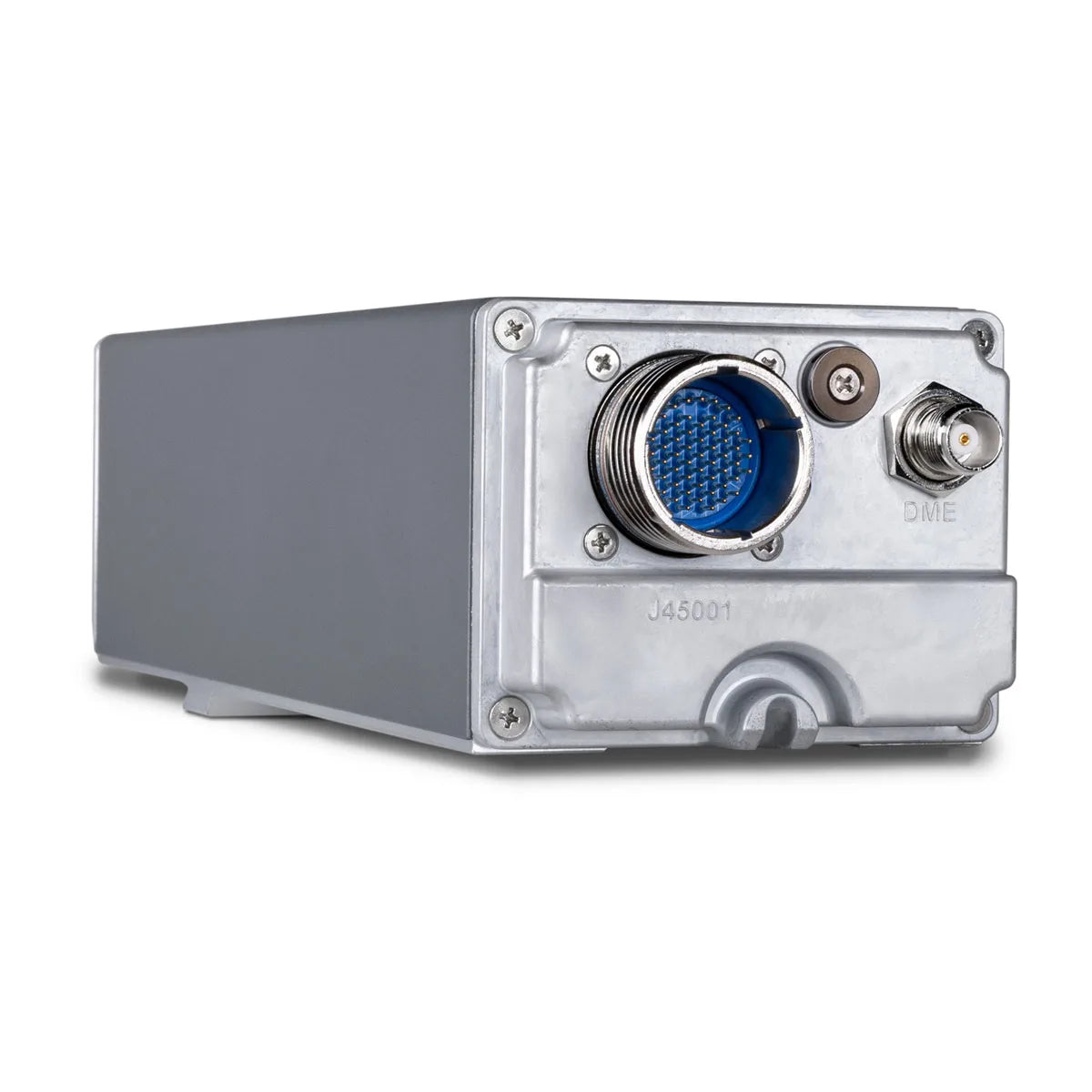

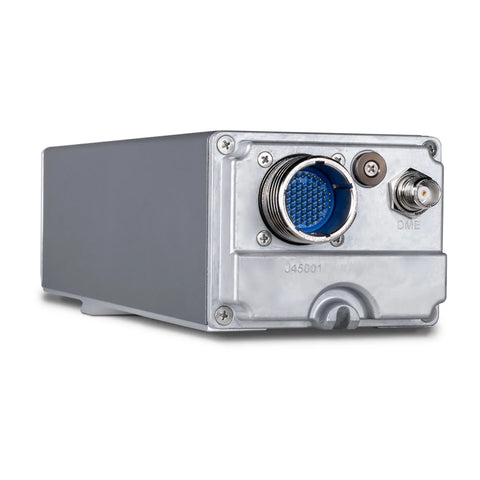

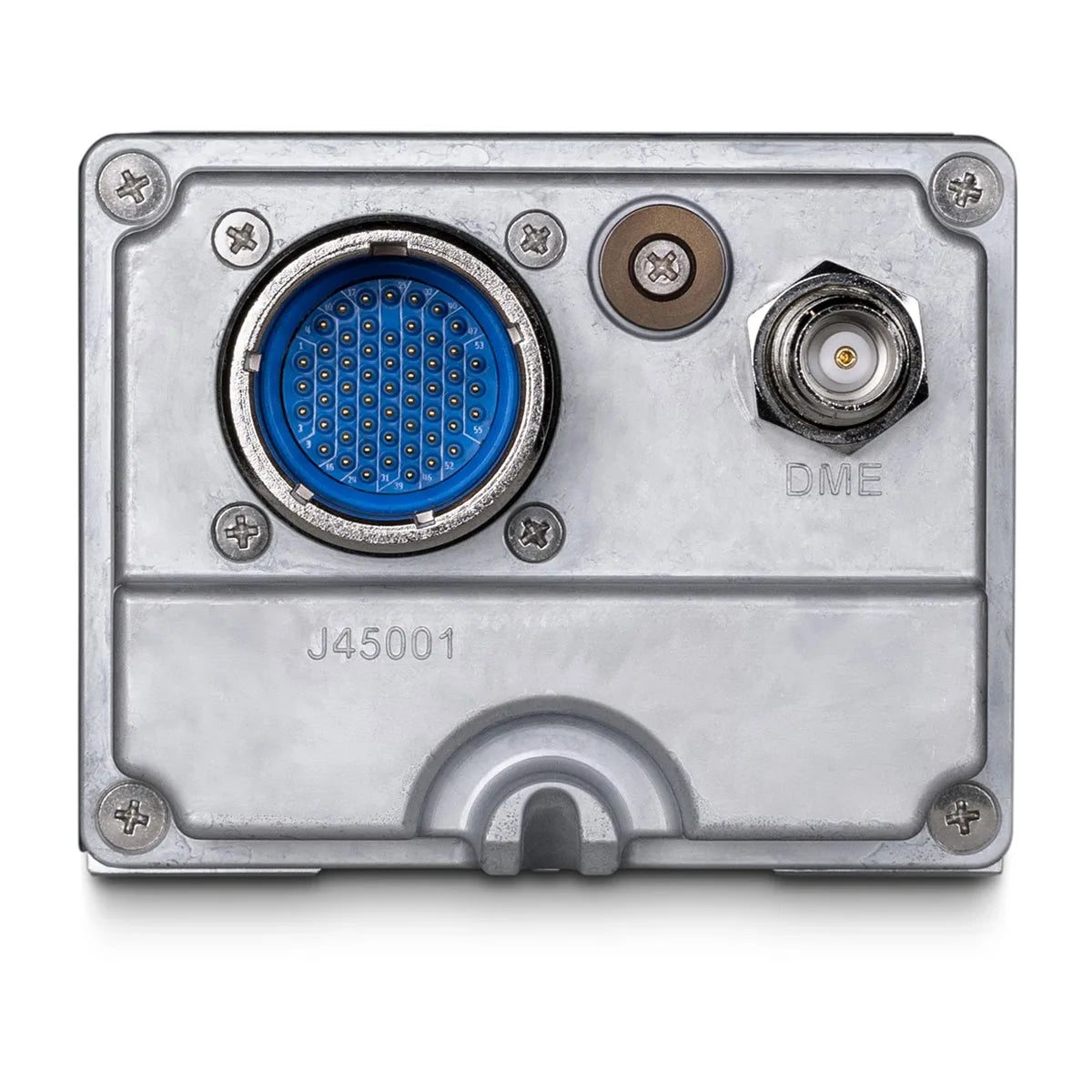

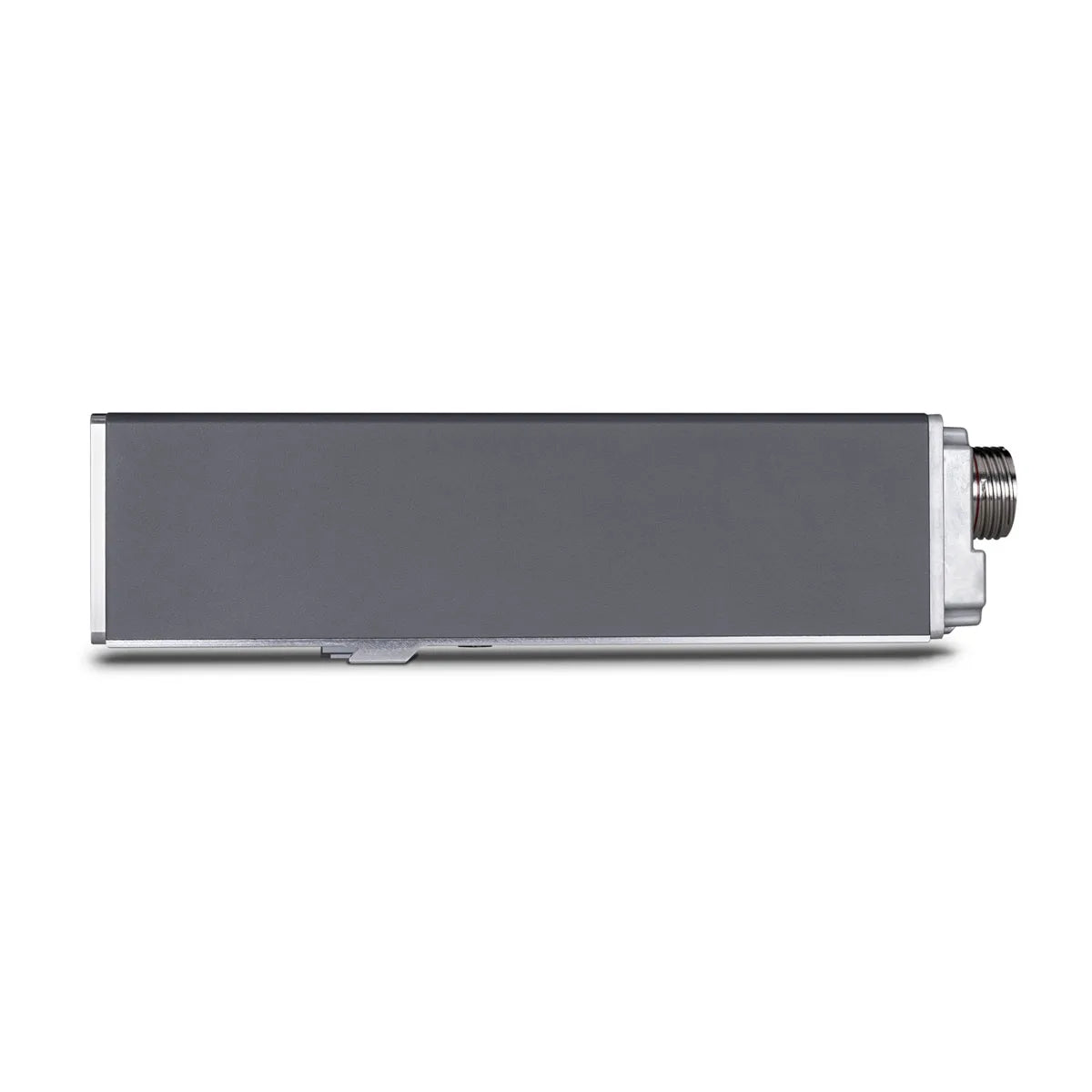

Digital Remote-mount DME Radio
