General |
|
| Dimension | 9.1" x 5.6" x 2.6" (23.2 x 14.3 x 6.7 cm) |
|---|---|
| Weight | 1.5 lbs (0.7 kg) |
| Water rating | IPX7 |
| Display Type | WVGA, TN |
| Display Size | 6.1" x 3.4" (15.5 x 8.7 cm) |
| Display resolution | 800 x 480 pixels |
| Mounting Options | Bail or flush |
| Input | Keyed |
Maps & Memory |
|
| Accepts Data Cards | 1 microSD™ card; 32 GB maximum size |
|---|---|
| Waypoints | 5,000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors |
|
| GPS | |
|---|---|
| Galileo | |
| Has built-in receiver | |
| Receiver | 5 Hz |
| Supports WAAS | |
Built-in Maps |
|
| Built-in Auto Guidance+ | yes (downloadable via ActiveCaptain app) |
|---|---|
| Garmin Navionics+ Inland & Coastal | yes (see Additional) |
| Garmin Navionics+ (Coastal) | yes (see Additional) |
| Garmin Navionics+ (Inland) | yes (see Additional) |
| Tide tables | yes (see Additional) |
Optional Map Support |
|
| BlueChart g3 | |
|---|---|
| BlueChart g3 Vision | |
| LakeVü g3 | |
| LakeVü g3 Ultra | |
| Garmin Navionics+™ | |
| Garmin Navionics Vision+™ | |
| TOPO 100K | |
| Standard Mapping | |
| Garmin Quickdraw Contours | |
Chartplotter Features |
|
| ActiveCaptain® compatible | |
|---|---|
Electrical Features |
|
| Power Input | 9 to 18 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 1.0 A |
| Maximum current draw at 12 Vdc | 1.5 A |
| Maximum power usage at 10 Vdc | 18W |
Sonar Features |
|
| Displays sonar | |
|---|---|
| Power output | 500 W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
Networking & Connections |
|

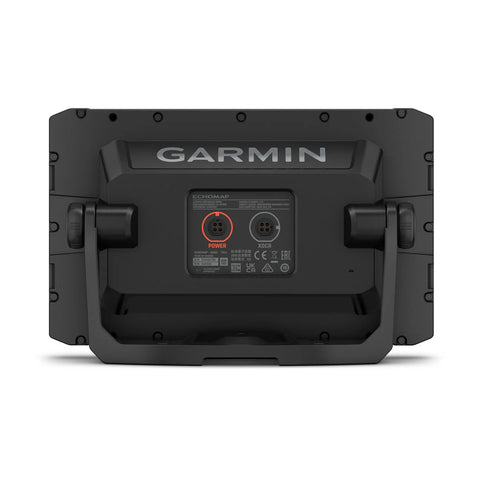

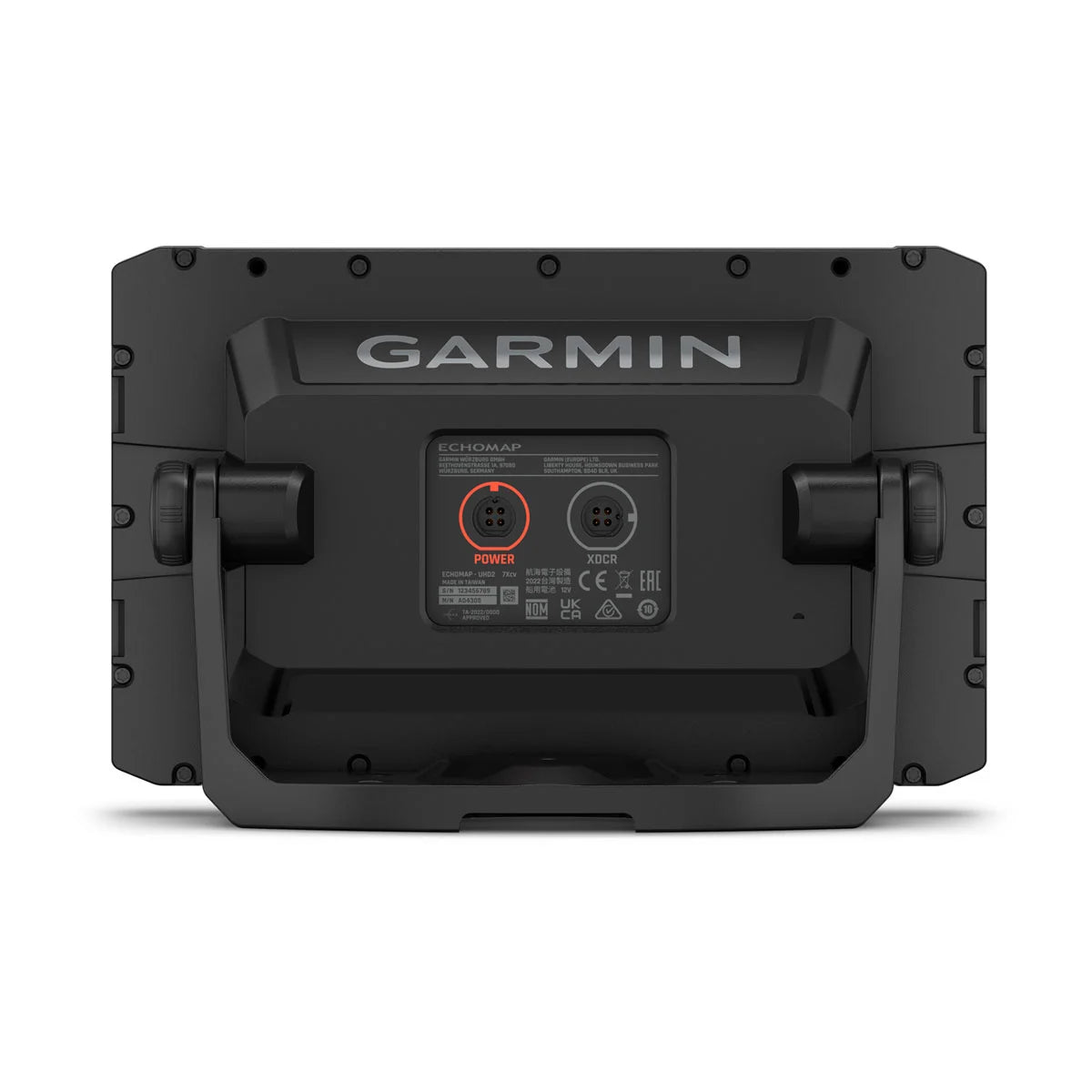

| 4-pin transducer ports | 1 |
|---|---|
| Garmin Wi-Fi network (local connection) | |
Additional |
|
| Additional |
|
|---|---|
74cv with GT20-TM Transducer and Garmin Navionics+ U.S. Coastal & Great Lakes Mapping
