General |
|
| Dimension | 7.4" x 4.8" x 2.4" (18.8 x 12.2 x 6.2 cm) |
|---|---|
| Weight | 9.5 lbs (4.3 kg) |
| Water rating | IPX7 |
| Display Type | WVGA, IPS |
| Display Size | 4.3" x 2.6" (10.9 x 6.6 cm) |
| Display resolution | 800 x 480 pixels |
| Input | Keyed |
Maps & Memory |
|
| Accepts Data Cards | 1 microSD™ card; 32 GB maximum size |
|---|---|
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |

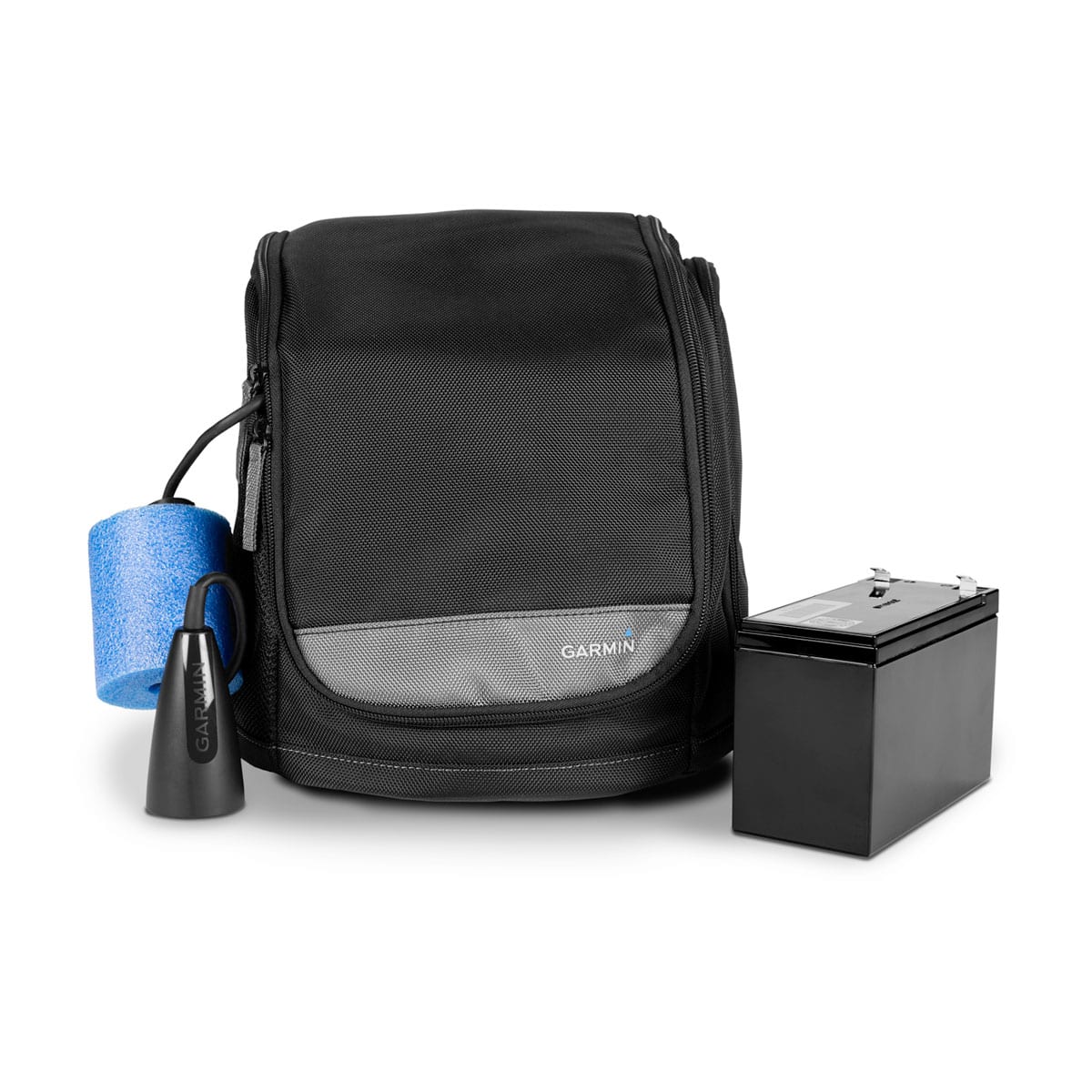

Ice Fishing Details |
|
| Battery type, size | SLA, 7Ah |
|---|---|
| Bag size | S |
| Included transducer | DB-IF |
| Transducer holding feature | Foam float |
Sensors |
|
| GPS | |
|---|---|
| GLONASS | |
| Galileo | |
| Has built-in receiver | |
| Receiver | 5 Hz |
| NMEA 2000 Compatible | |
| Supports WAAS | |
Built-in Maps |
|
| Built-in Auto Guidance+ | yes (downloadable via ActiveCaptain app) |
|---|---|
| Garmin Navionics+ Inland & Coastal | yes (see Additional) |
| Garmin Navionics+ (Inland) | yes (see Additional) |
Optional Map Support |
|
| Garmin Navionics+™ | |
|---|---|
| Garmin Navionics Vision+™ | |
| TOPO 100K | |
| Standard Mapping | |
| Garmin Quickdraw Contours | |
Chartplotter Features |
|
| ActiveCaptain® compatible | yes |
|---|---|
Electrical Features |
|
| Power Input | 9 to 18 Vdc |
|---|---|
Sonar Features |
|
| Displays sonar | |
|---|---|
| Power output | 500 W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
Networking & Connections |
|
| 4-pin transducer ports | 1 |
|---|---|
| Garmin Wi-Fi network (local connection) | |
Additional |
|
| Additional | Garmin Navionics+ Inland & Coastal: 55cv Canada Garmin Navionics + (Inland): 53cv U.S. Lakes |
|---|---|

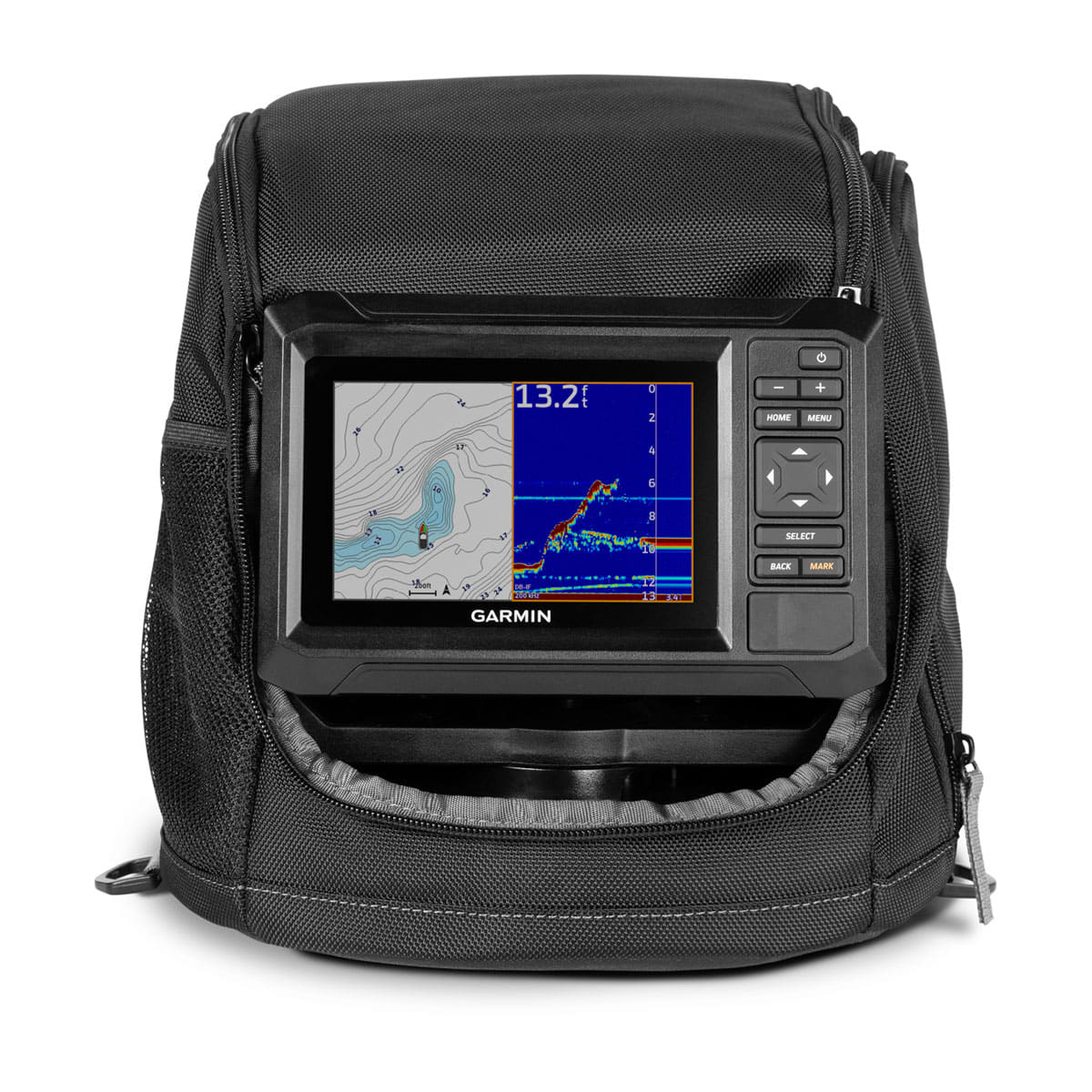

Includes ECHOMAP™ UHD2 53cv and Dual Beam-IF Transducer
