General |
|
| Antenna Length | 18x: 17" (43.18 cm) 24x: 23" (58.42 cm) |
|---|---|
| Rotation speed (RPM) | Up to 60 rpm, depending on settings |
| Dimension | 18x: 20" x 9.8" (50.8 cm x 24.8 cm) 24x: 25.4" x 9.8" (64.5 cm x 24.9 cm) |
| Weight | 18x: 14.0 lbs (6.4 kg) |
| Water rating | IPX7 |
| Beam width | 18x: 5.2° horizontal, 25° vertical 24x: 3.7° horizontal, 25° vertical |
| Maximum range | 48 nm |
| Minimum range | 6 meters |
| Radar type | Radome |
Electrical Features |
|
| Power Input | 10-32 V DC |
|---|---|
| Power Consumption (standby) | 4 W |
| Max power consumption, transmitting (power save) | 24 W |
| Max power consumption, transmitting (normal mode) | 33 W |
| Transmit power | 50 W |
Radar Features |
|
| Dual range | |
|---|---|
| Overlay | |
| Dual radar support | |
| Auto Bird Gain | |
| Auto Gain | Dynamic |
| MARPA target tracking | yes (requires heading sensor, sold separately) |
| Echo Trails | |
| MotionScope | |
| Target size | |
| Scan averaging | |

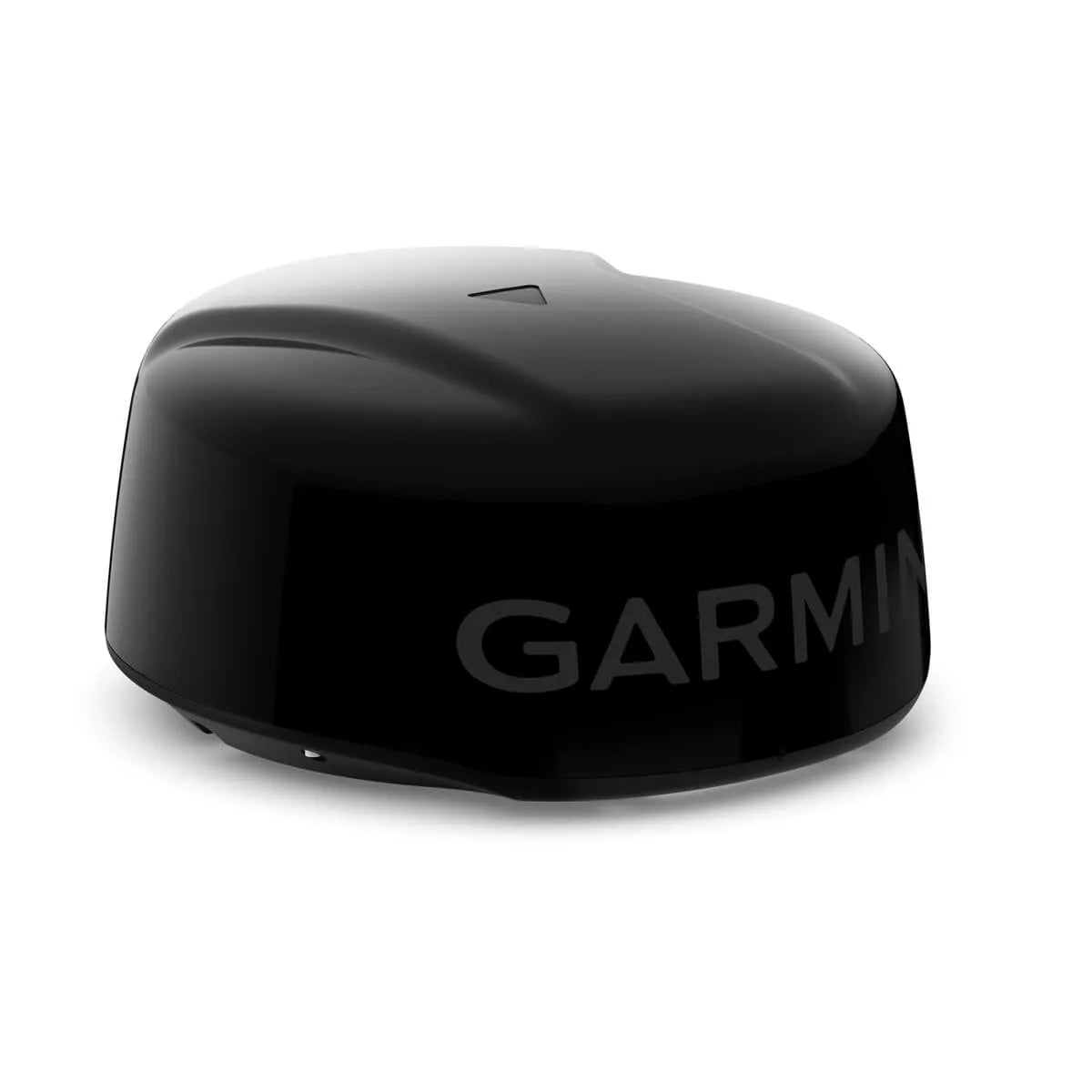

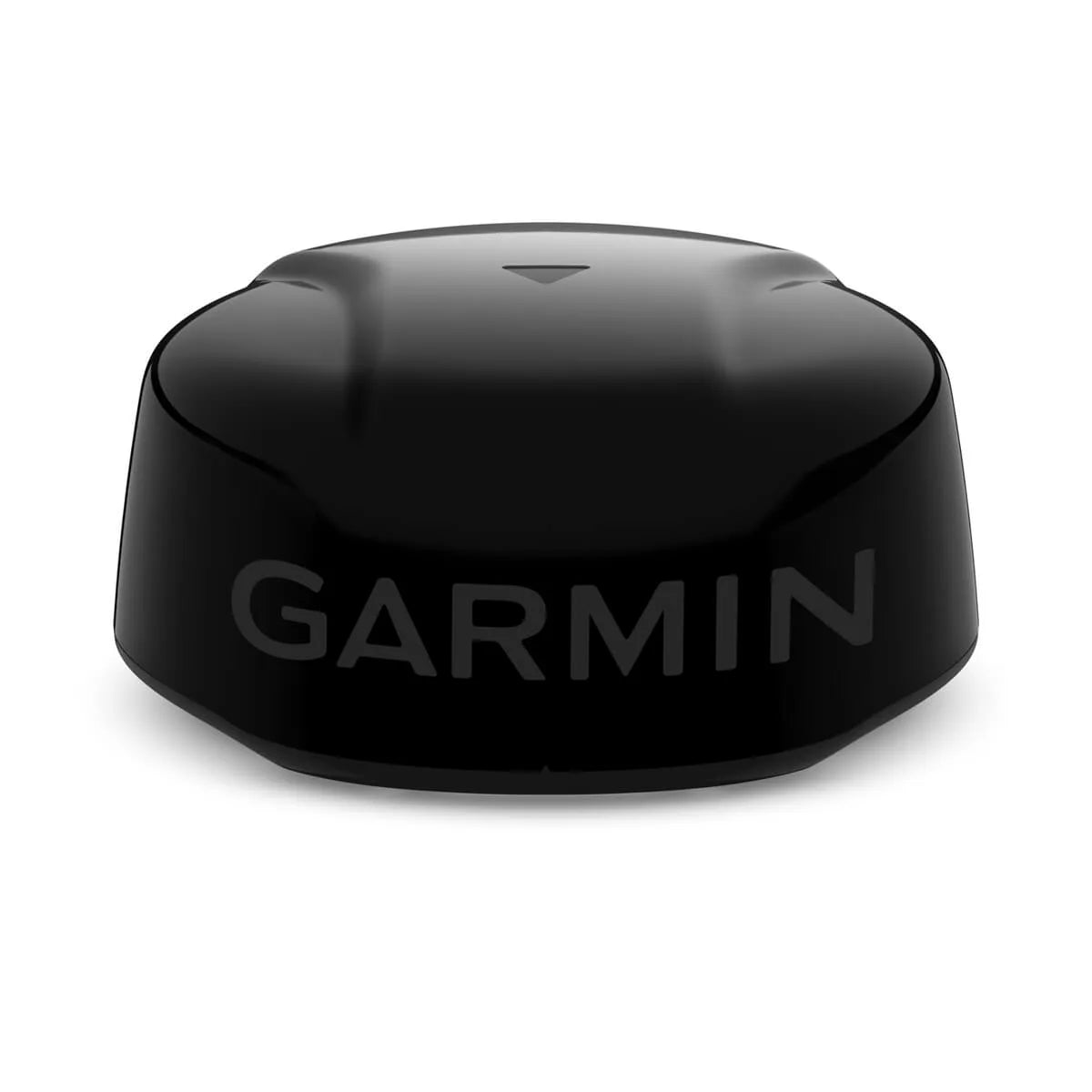

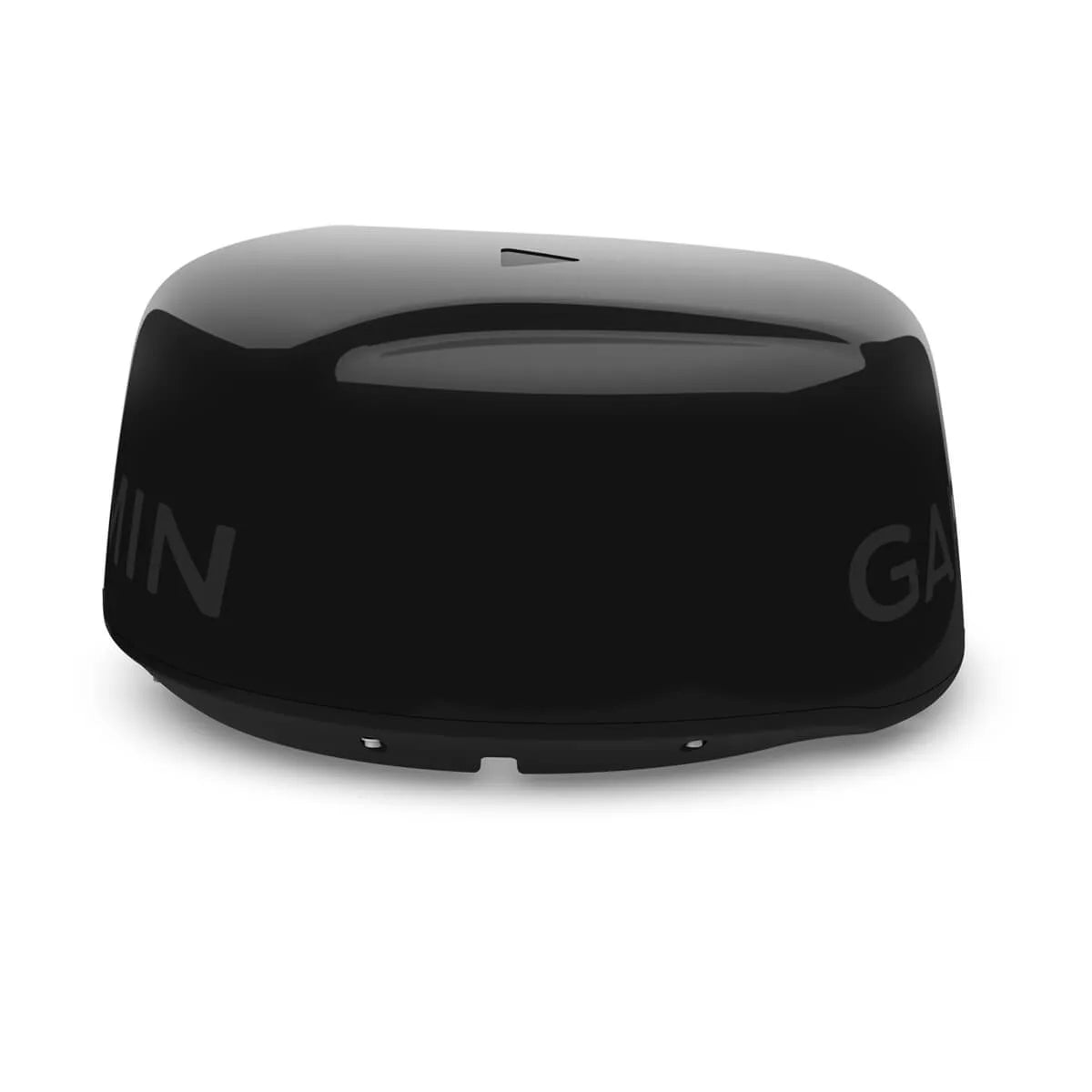

Radome, Black
