General |
|
| Warranty | 3-year, limited lifetime on shaft |
|---|---|
| Color | black |
| For use in | freshwater, brackish water and saltwater |
| Mount style | pivot-style mount |
| Max thrust | 100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 V |
| Voltage | 24 V or 36 V |
| Electric steering | |
| Built-in heading sensor | |
| Built-in GPS | yes (dual frequency GPS) |
| Water rating | IPX7 |
| Mounting location | bow |
| Wireless remote | yes (included) |
| Foot pedal compatible | |
| Battery indicator | |
| Variable speed control | yes (20 steps) |
| Lighted direction indicator | |
| quatix remote control supported | |
| Manual reverse control | |
Sonar Features |
|
| Frequencies supported | Traditional: High-wide CHIRP (150-240 kHz) |
|---|---|
| Transmit power | Traditional: 350 W ClearVü/SideVü: 500 W |
| Maximum depth | CHIRP sonar: 800 ft freshwater ClearVü: 400 ft; SideVü: 500 ft |
| Depth/speed/temperature | depth and temperature |
| Number of pins | 12-pin (orange connector) |

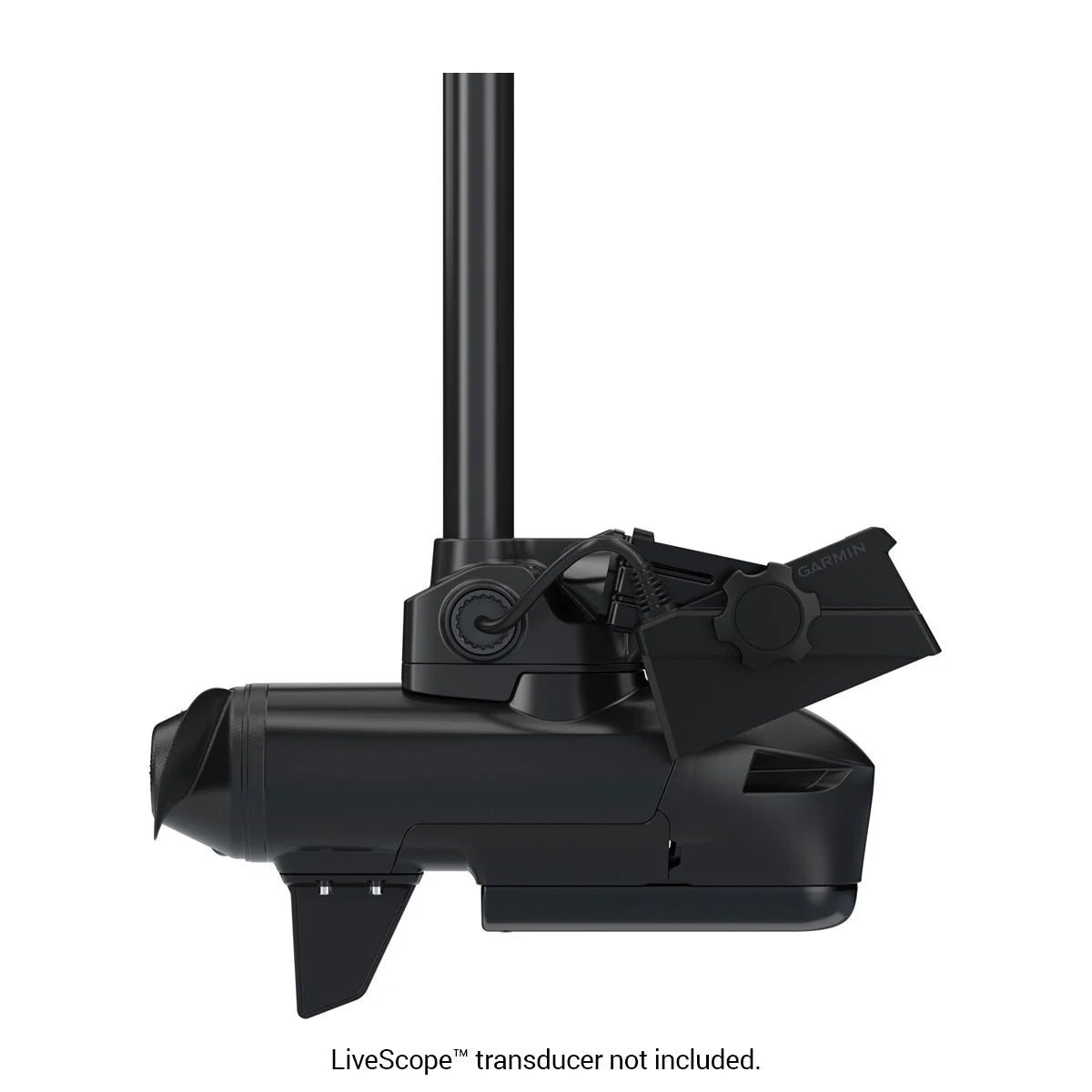

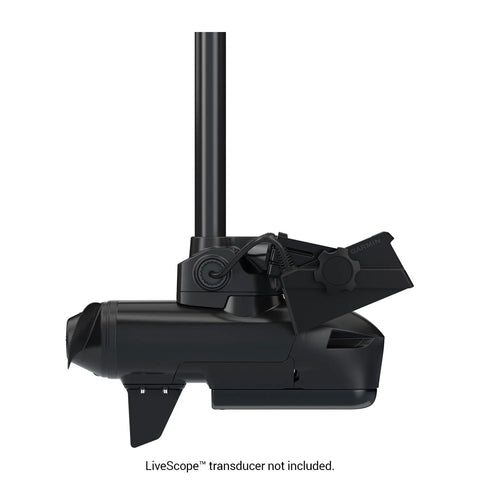

| LiveScope cable integration | yes (LiveScope transducer and Kraken Mounting Bracket purchases required) |
Autopilot Features |
|
| Route following | |
|---|---|
| Anchor lock | |
| Smart Anchor Lock features | |
| Anchor lock jog | |
| Heading hold | |
| Cruise control | |
| Gesture features | yes (manual+, heading hold+, jog+) |
Remote Features |
|
| Display size | 1.2" (30.2 mm) diameter |
|---|---|
| Display resolution | 240 x 240 pixels |
| Display type | color, sunlight-visible, transflective memory-in-pixel (MIP) |
| Chartplotter user-programmable keys | |
| Autopilot feature control | |
| Water rating | IPX7 |
| Battery life | typical use with backlight at low, 43 weeks |
| Floats | |

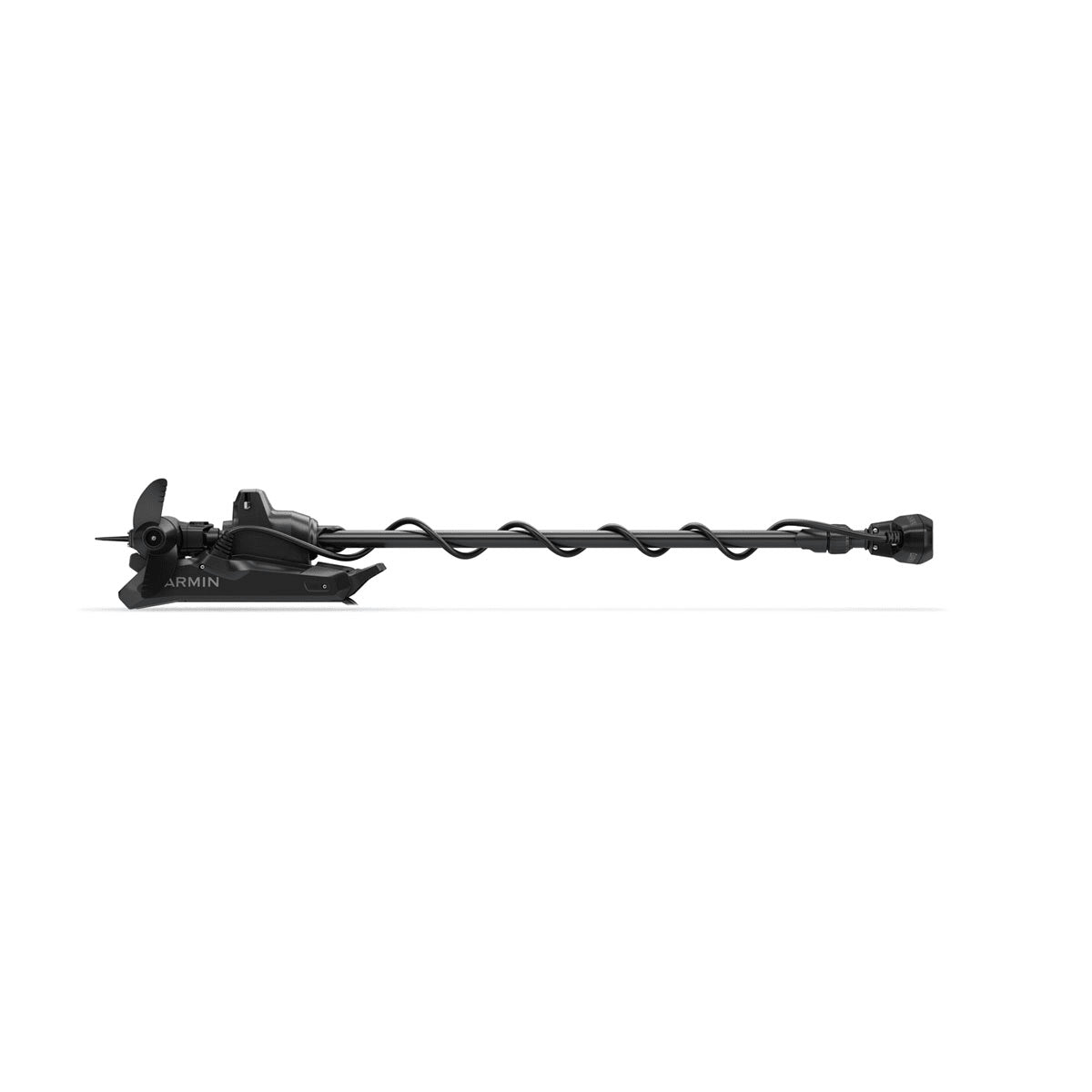

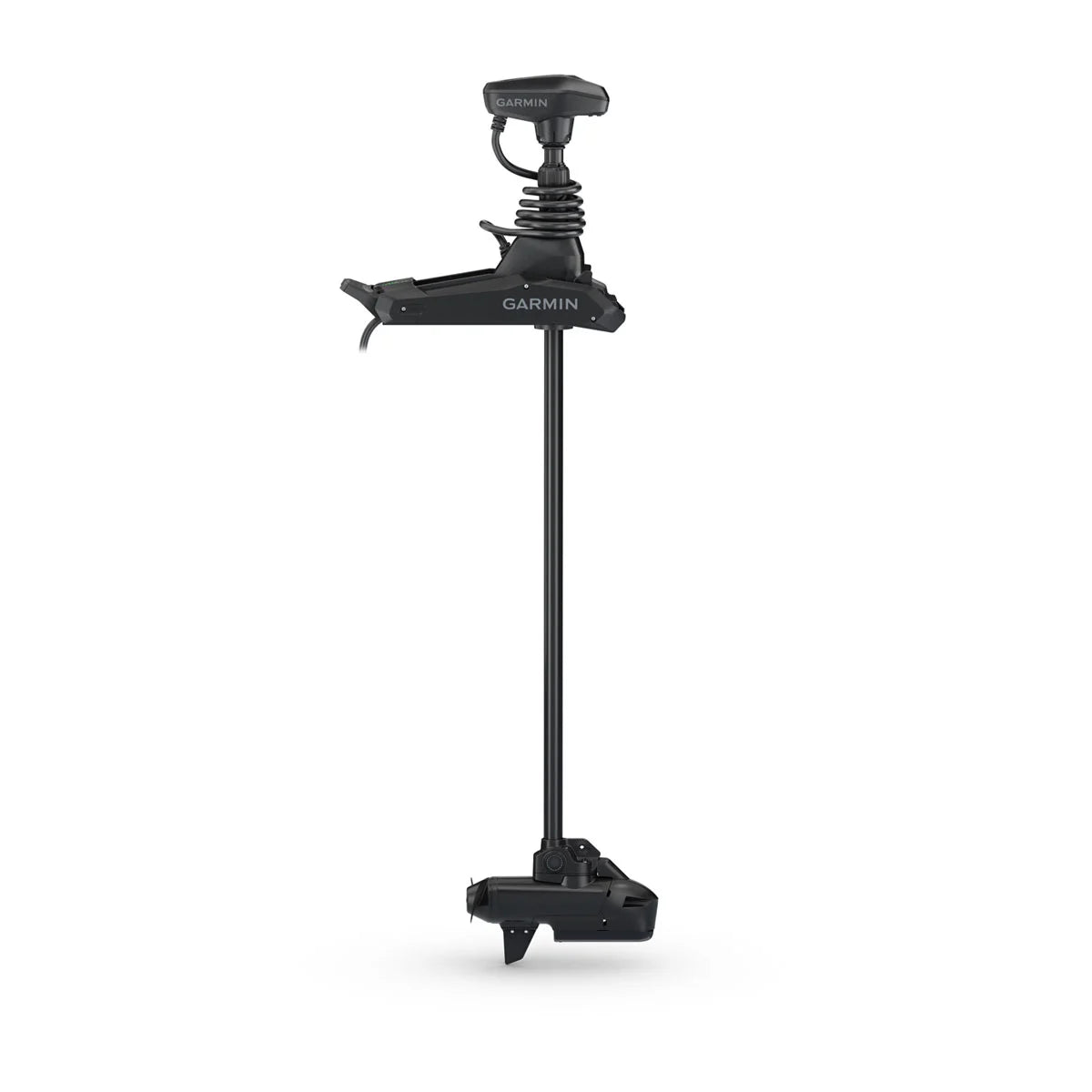

63" with Remote Control and Built-in GT56UHD-TR Transducer
