General |
|
| Dimension | 54.7" x 29.5" (1390 x 750 mm) |
|---|---|
| Height | 46.1" (1170 mm) |
| Weight | 110 lbs (50 kg) |
| Q-factor | 148 mm |
| Display Size | 4.5" diagonal |
| Accuracy (+/-) | <1% |
Connectivity |
|
| Wireless communication | ANT+ connectivity, BLUETOOTH wireless technology |
|---|---|
| Control by | Smartphone, tablet, ANT+ bike computers, stand alone, computer connection via ANT+ antenna |
| Read out on | Integrated display, smartphone, tablet, bike computer, computer with ANT+ antenna |
| Connection indicator (ANT+/Bluetooth) | 3 LEDs |
| Power indicator | multicolor LED, spot on floor |
Indoor Training Features |
|
| Magnets | 32 neodymium magnets |
|---|---|
| Electrical requirement | 110-240 Volts |
| Gear ratio | Customizable to Shimano, SRAM and Campagnolo system operation. Chainring set-up: up to 3 sprockets, teeth per sprocket adjustable between 22 and 53; rear cassette: up to 12 sprockets, teeth per sprocket adjustable between 11 and 40. |
| Max power | 2200 W |
| Max incline | 25% |
| Simulation of descent | |
| Max torque | 88 Nm |
| Max brake force | 260 N |
| Flywheel | virtual |
| Mass inertia | variable to 275.6 lbs (125 kg) |
| Calibration | no calibration needed |
| Output | speed, cadence, power |
| Measured Speed | |
| Measured Cadence | |
| Measured Power | |
| Crank lengths | 165/167.5/170/172.5/175 |

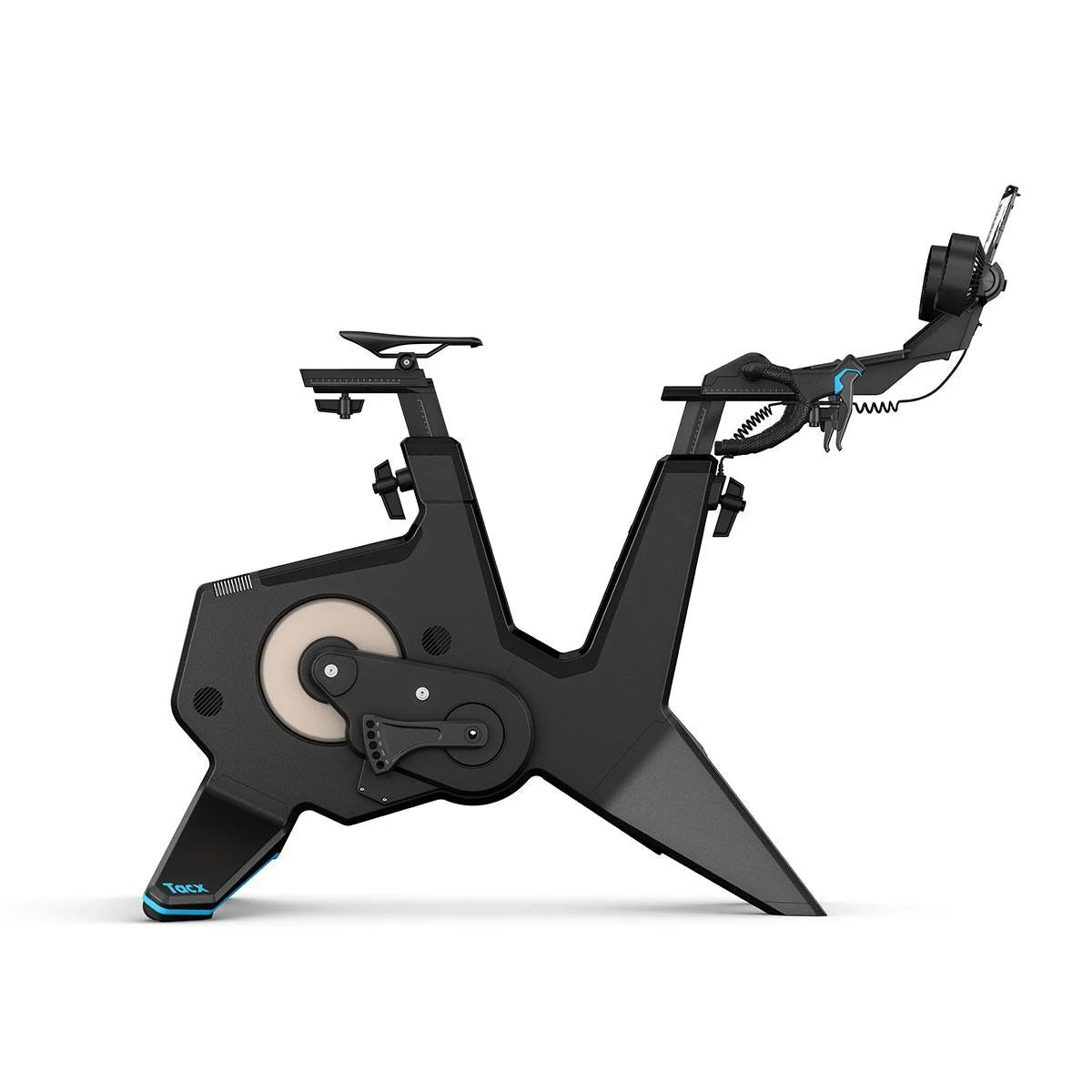

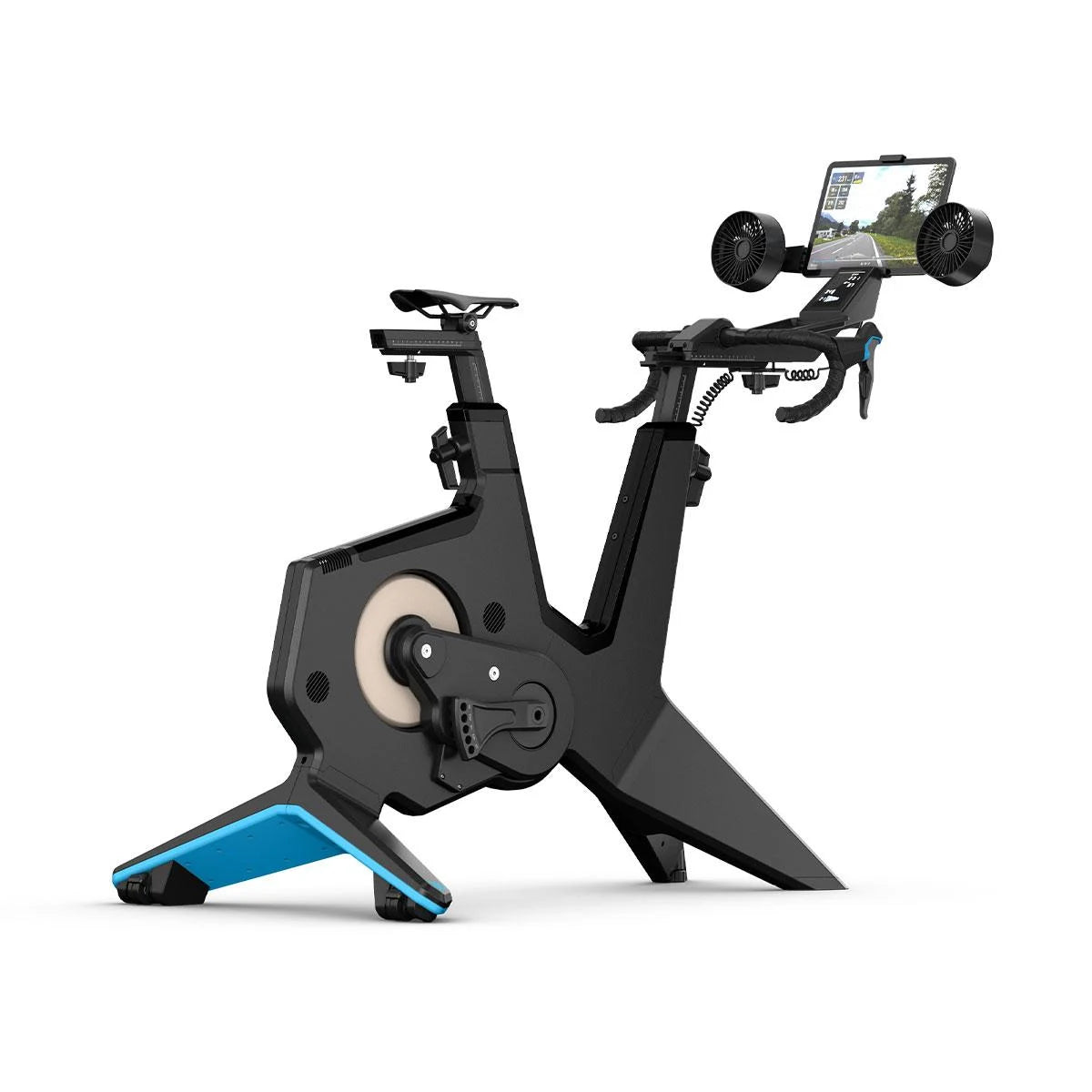

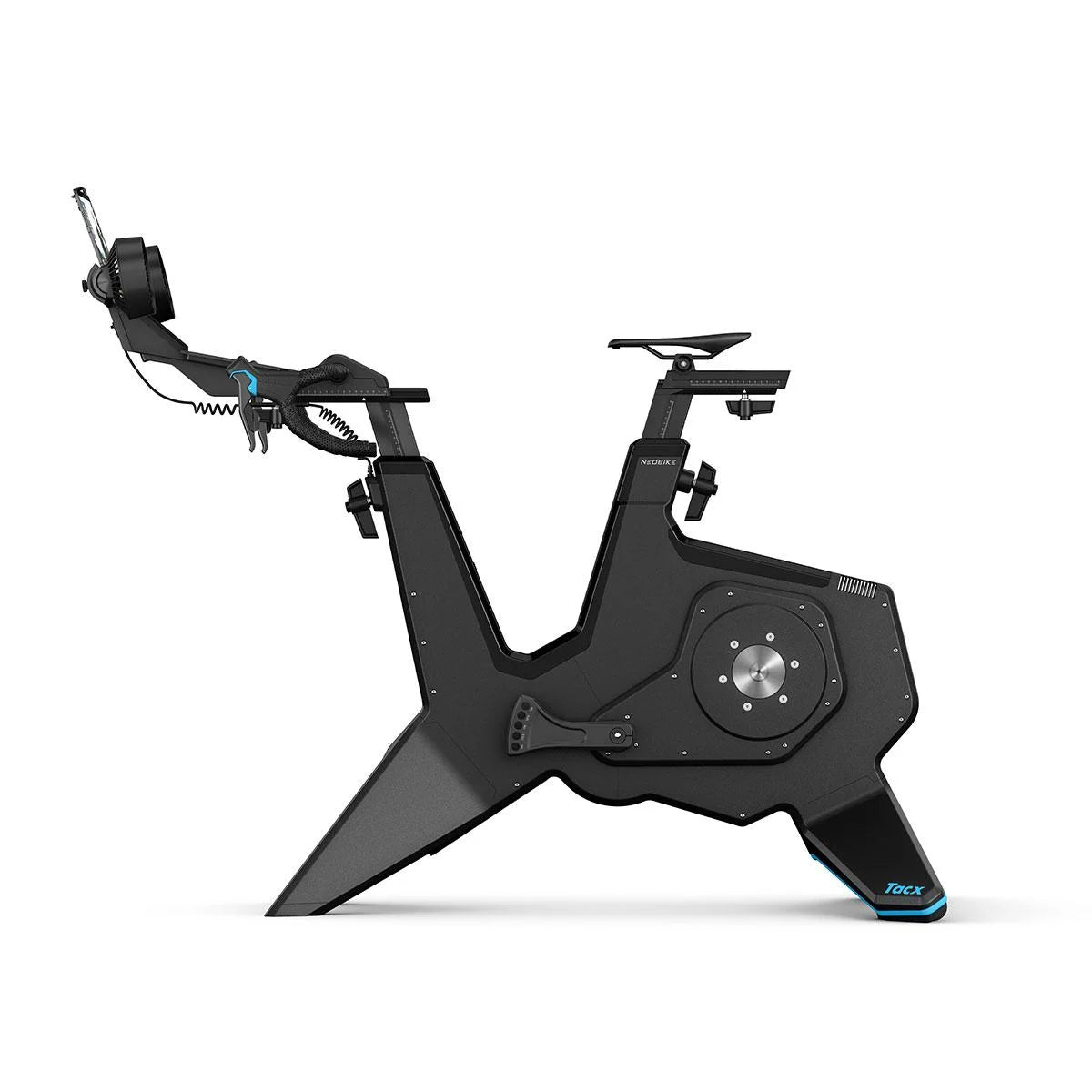

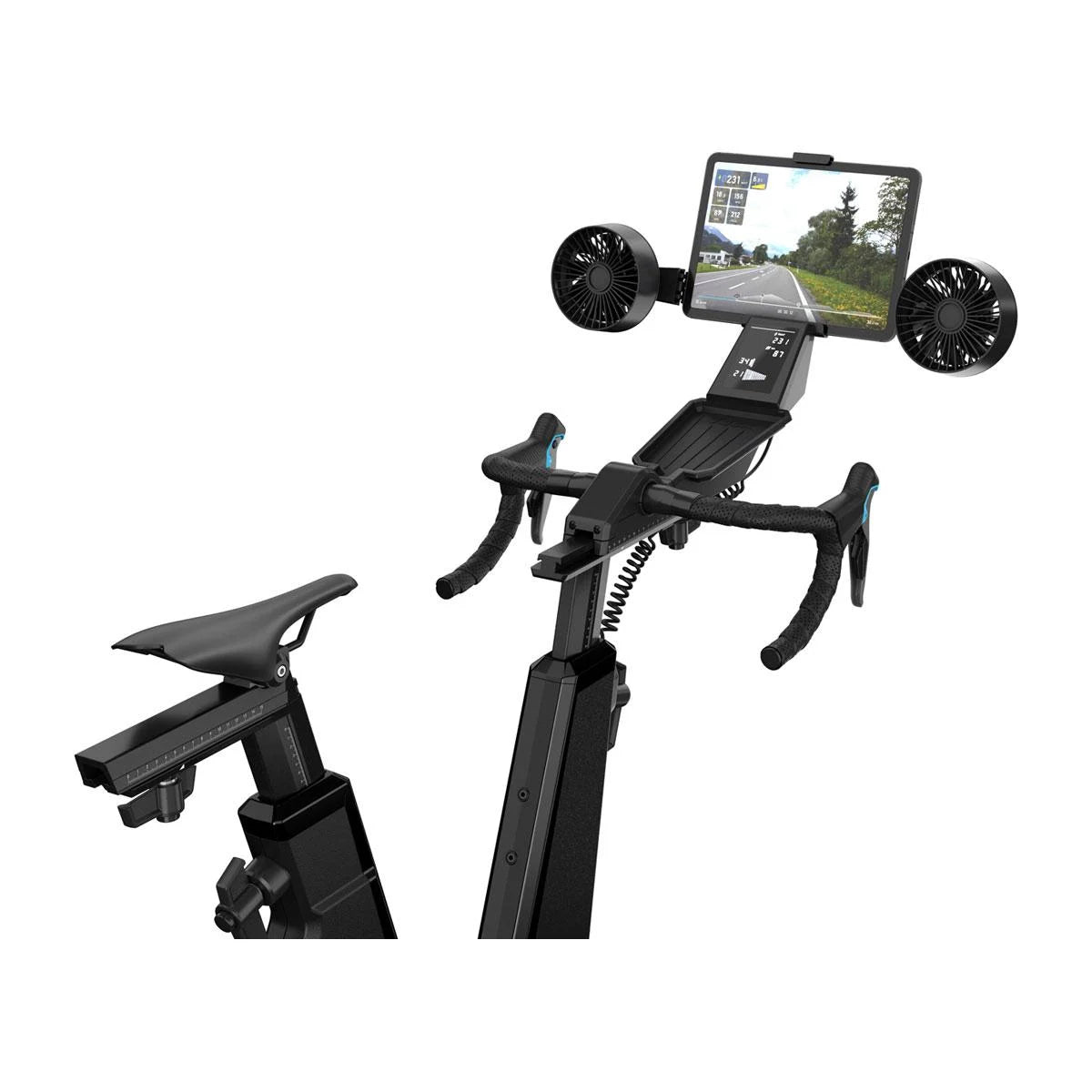

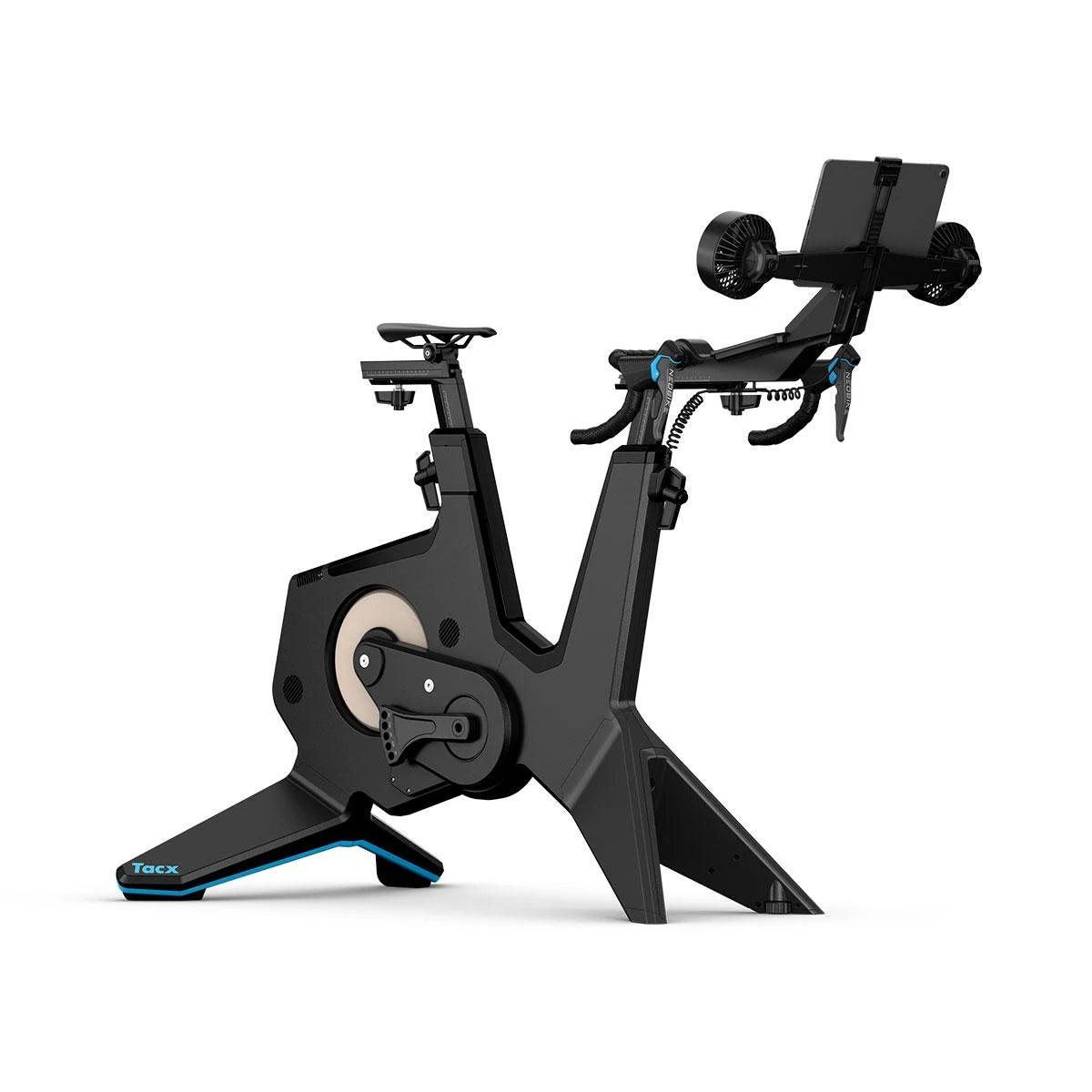

Tacx® NEO Bike Plus Trainer
