General |
|
| Dimension | 9.9"W x 7.8"H x 1.2"D (25.2 x 19.9 x 3.1 cm), device only 11.4"W x 7.6"H x 2.5"D (29 x 19.3 x 6.4 cm), device and dock |
|---|---|
| Weight | 32.8 oz (930 g), device only |
| Water rating | IPX7 |
| Display Type | multi-touch, glass, high brightness HD color TFT with white backlight |
| Display Size | 8.5"W x 5.3"H (21.7 cm x 13.6 cm); 10.1" diagonal (25.7 cm) |
| Display resolution | 1280 x 800 pixels |
| Dual-orientation display | |

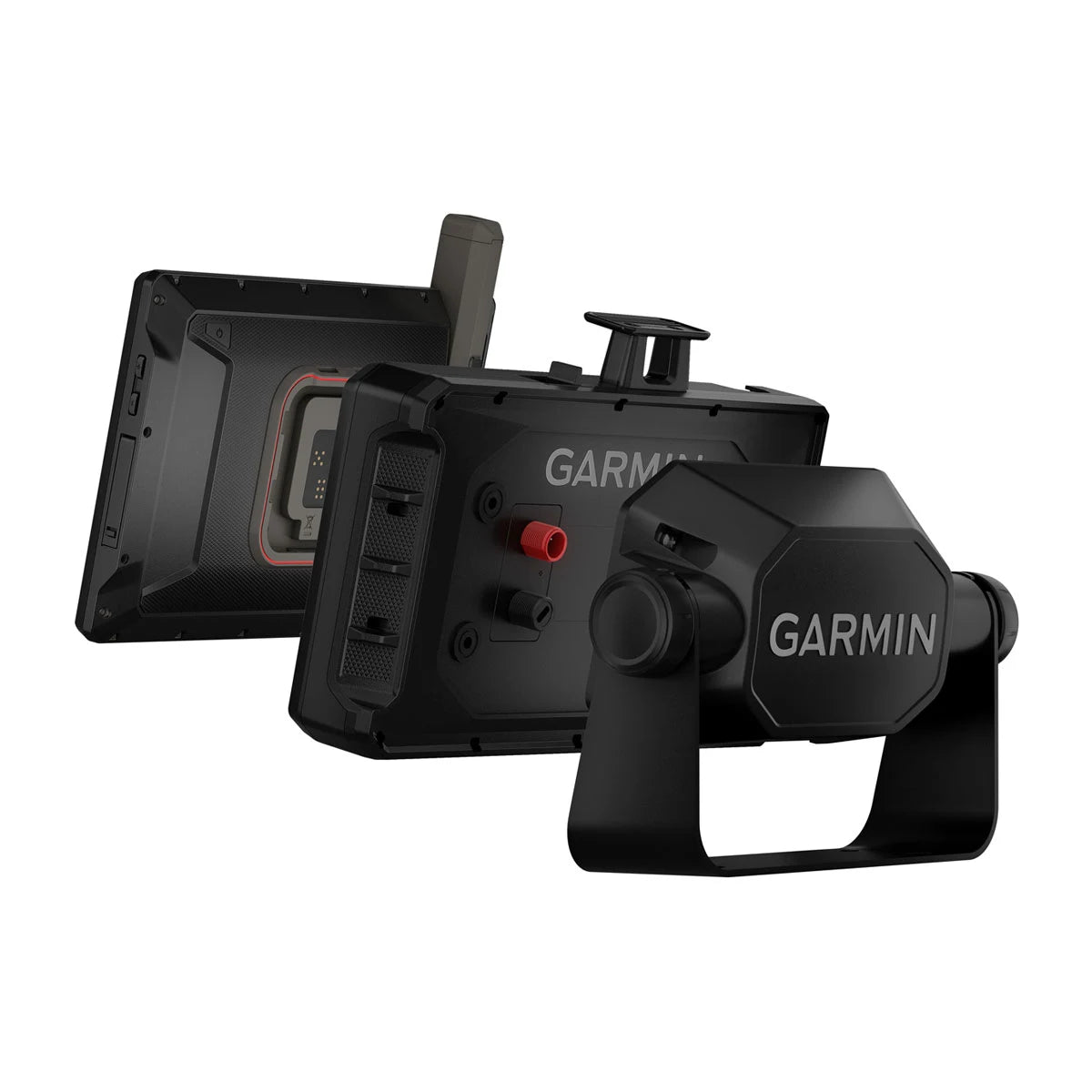

| Magnetic Mount | locking magnet-assisted mount |
| Mount type | bail mount |
| 1.5" ball adapter with AMPS plate | |
| Drop rating | MIL-STD-810 |
| Dust rating | IP6X |
| Battery Type | rechargeable lithium-ion |
| Battery life | Up to 6 hours at 50% backlight |
| Compatible with Tread XL Baja Dock accessory | yes (included) |
Maps & Memory |
|
| Data cards | microSD™ card (not included) |
|---|---|
| Preloaded street maps | |
| High Definition 3D terrain | |
| 3D Terrain | |
| Internal storage | 128 GB |
| Ability to add maps | |
| External memory storage | yes (256 GB max microSD™ card) |
| Includes map updates | |
| Downloadable Satellite Imagery | yes (BirdsEye) |
| BirdsEye Direct Satellite Imagery | |
Sensors |
|
| GPS | |
|---|---|
| Galileo | |
| Barometric altimeter | |
| Compass | |
| 10 Hz multi-GNSS positioning | |
Outdoor Recreation |
|
| Point-to-point navigation | |
|---|---|
| Preloaded topographical maps | |
| Preloaded US public land boundaries | |
| Preloaded private land parcel maps | yes (parcels greater than 4 acres) |
| Preloaded USFS Roads and Trails, including motor-vehicle-use-maps for motorcycle, ATV, SXS and full-size 4x4 | |
| Navigate-a-track navigation | |
| Turn-by-turn trail navigation | |
Camera Features |
|
| Backup camera compatible | yes (BC™ 50) |
|---|---|
Advanced Features |
|
| Wi-Fi® map and software updates | |
|---|---|
Adventure Features |
|
| Built-in inReach® Technology (requires active subscription; subject to regulations or prohibitions in some jurisdictions) | |
|---|---|
| Pair with Garmin PowerSwitch™ digital switch box | |
| Compatible with Group Ride Radio | |
| Compatible with external GPS antenna with mount | yes (included) |
| Compatible with external inReach® satellite antenna | yes (included) |
| Group Ride Mobile | yes (with Garmin Tread app) |
| Track recorder (breadcrumbs) | |
| iOverlander™ points of interest | |
| Ultimate Public Campgrounds | |
| Birdseye Satellite Imagery (download via Wi-Fi) | |
| Glove-friendly touchscreen | |
10" Off-Road Race Navigator
