General |
|
| Physical dimensions (Diameter x Depth) | 8.8": 8.82" x 15.16" (224 x 385 mm) 7.7": 7.72" x 12.91" (196 x 328 mm) 6.5": 6.93" x 11.97" (176 x 304 mm) |
| Water and dust rating | IP65 |
| Configuration | coaxial |
| Speaker size | 6.5", 7.7" and 8.8" |
| Peak power (Watts) | 8.8": 330 W 7.7": 280 W 6.5": 230 W |
| RMS power (Watts) | 8.8": 130 W 7.7": 100 W 6.5": 75 W |
| Sensitivity (1 W / 1 m) | 8.8": 91 dB 7.7": 91 dB 6.5": 90 dB |
| Frequency response | 8.8": 50 Hz-20 kHz 7.7": 60 Hz-22 kHz 6.5": 70 Hz-22 kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 8.8": 25-140 W/Ch 7.7": 25-120 W/Ch 6.5": 30-90 W/Ch |
| LED lighting | yes (CRGBW) |
| LED supply voltage | 10.8-16 VDC |
| LED load current @ 14.4 VDC | 300 mA |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 8.8": 1.5" 7.7": 1.4" 6.5": 1.2" |
| Cone material | CURV cone with rubber surround |
| Tweeter type | Silk dome |
| Compass-safe distance | 8.8": 162" (412 cm) 7.7": 141" (358 cm) 6.5": 122" (310 cm) |
| Warranty | 3 years |

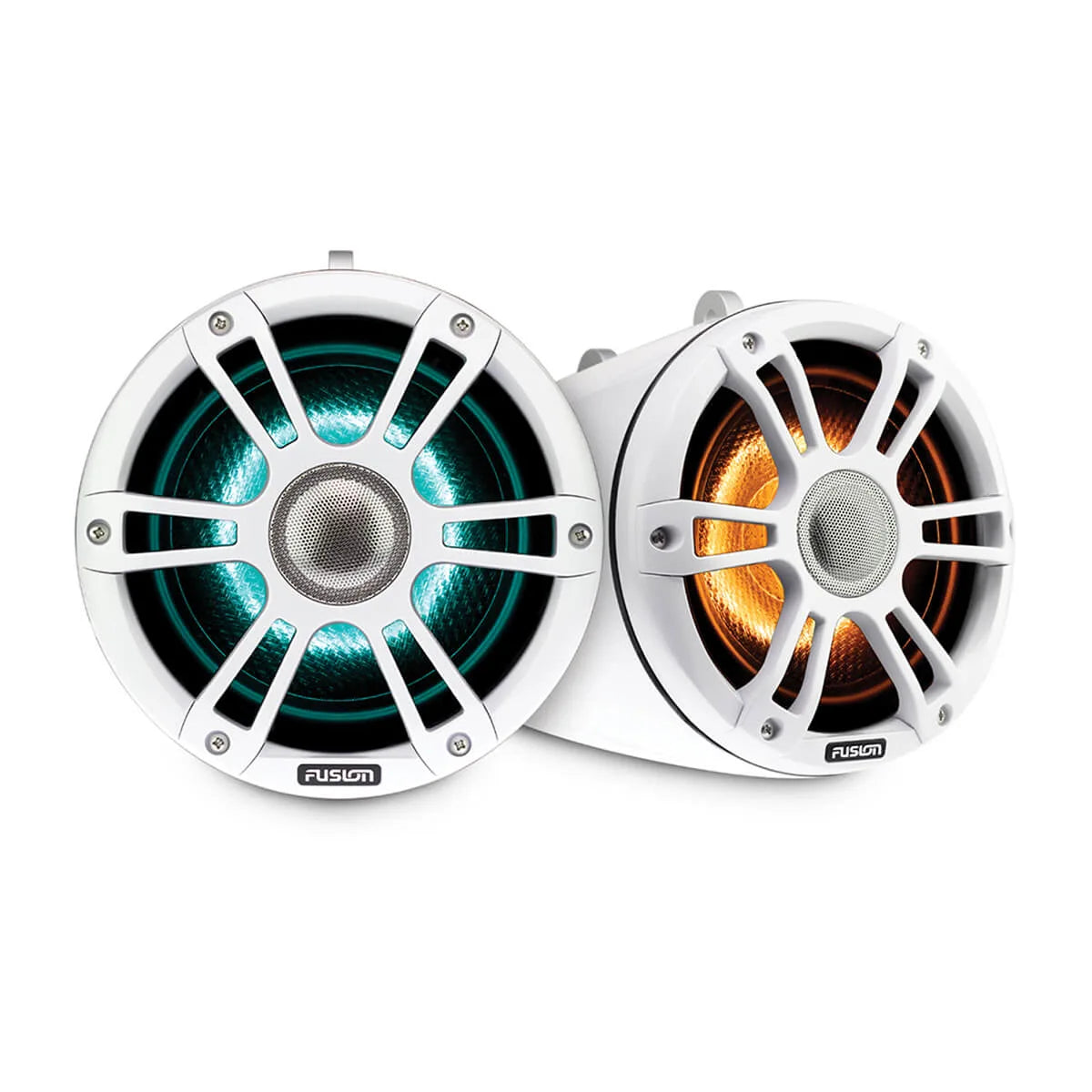

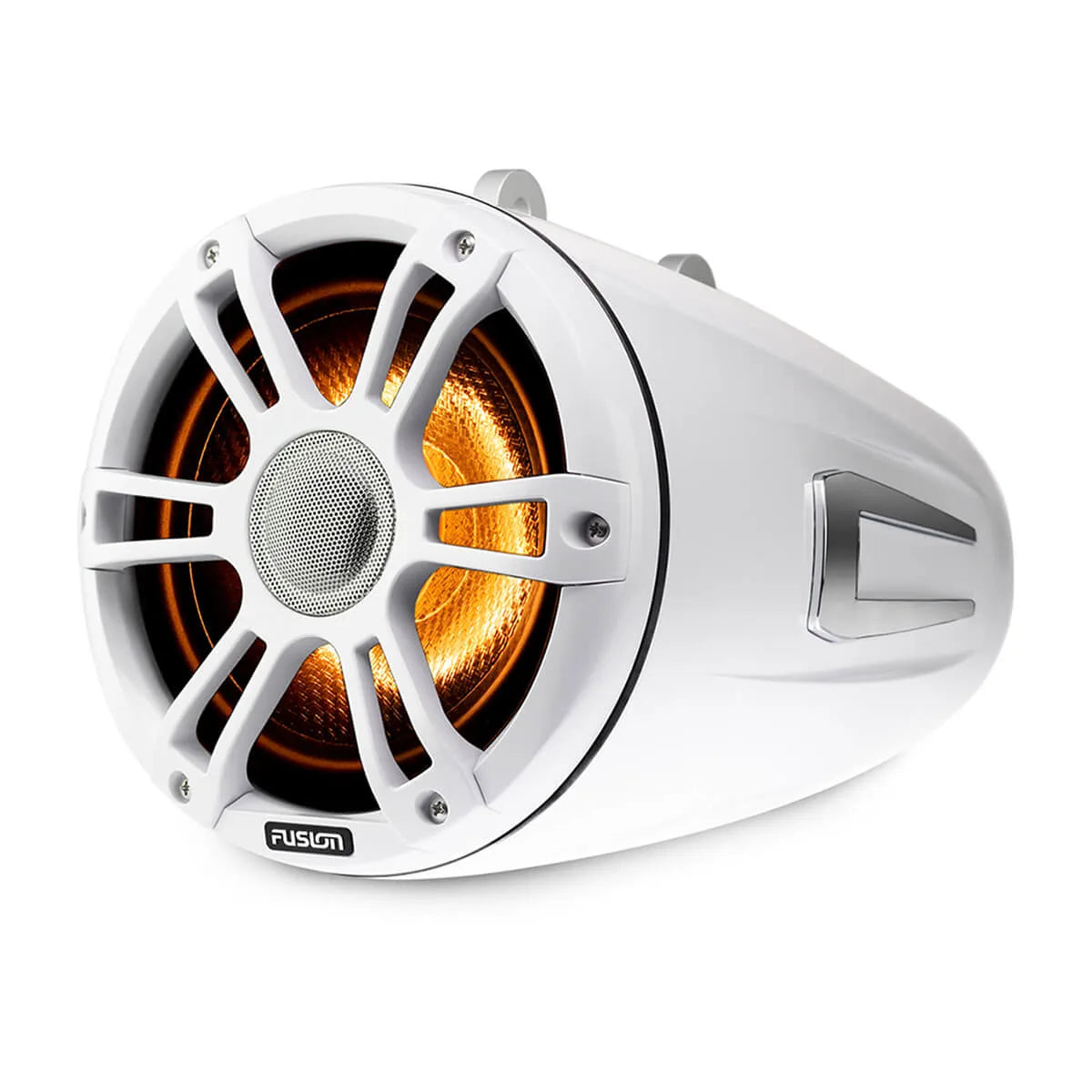

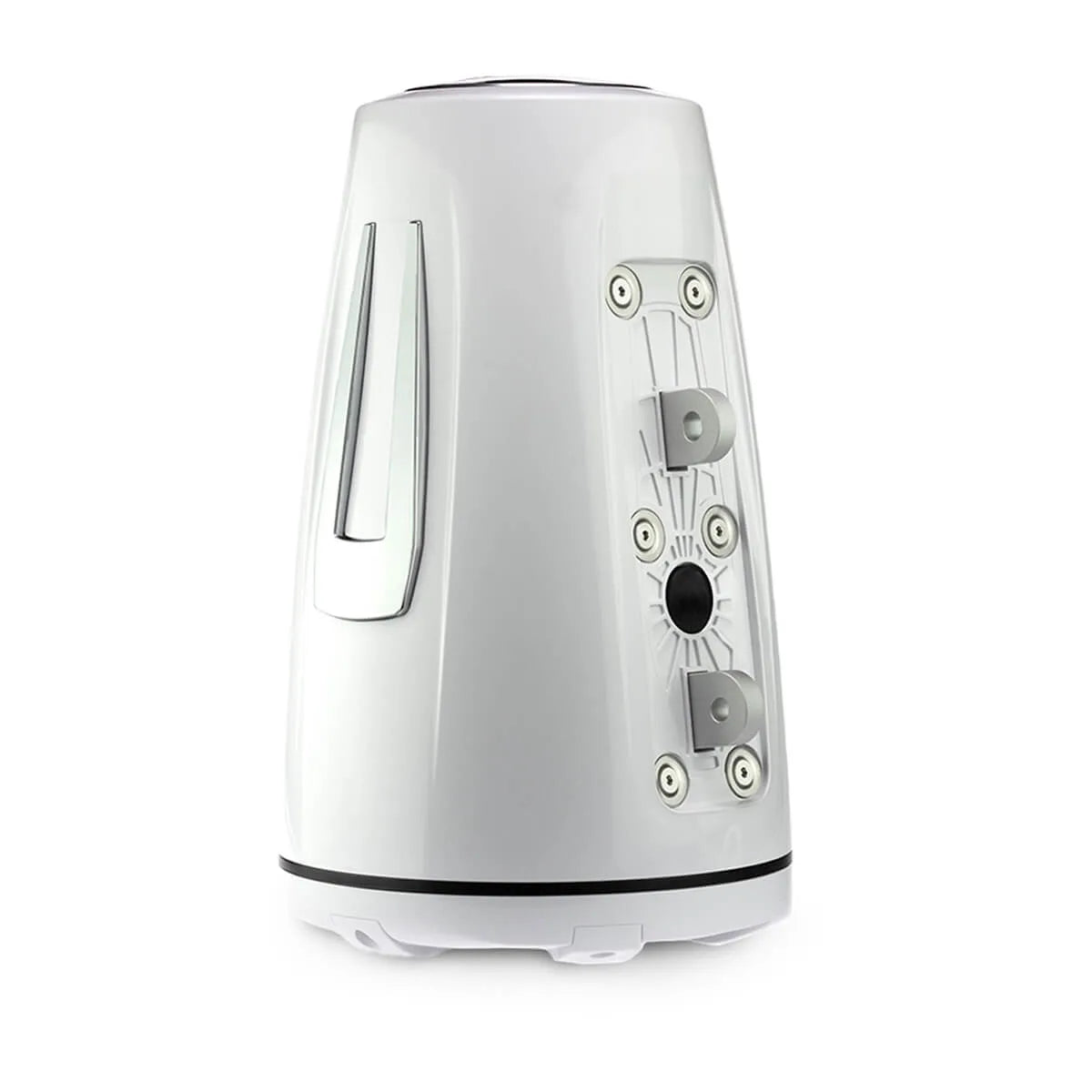

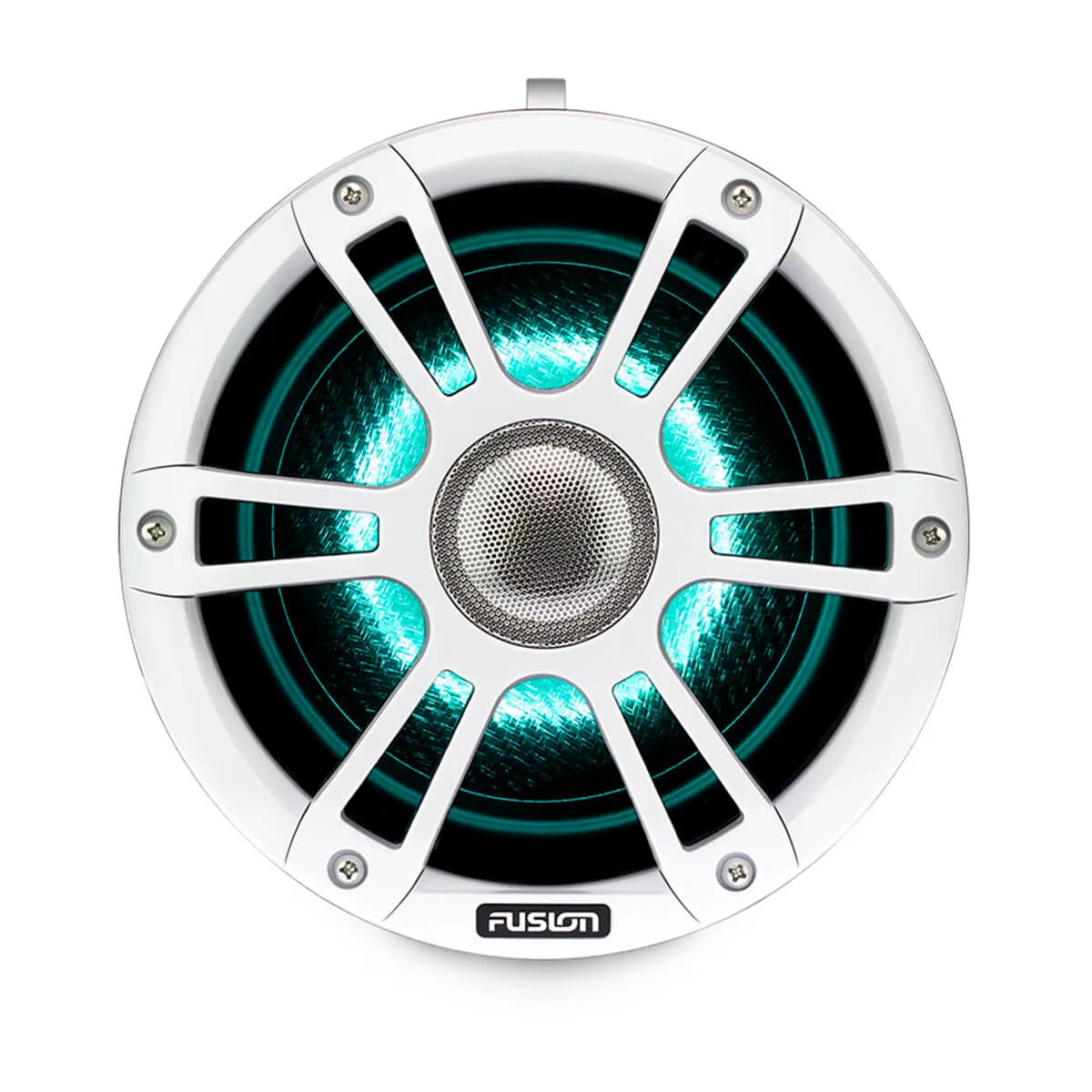

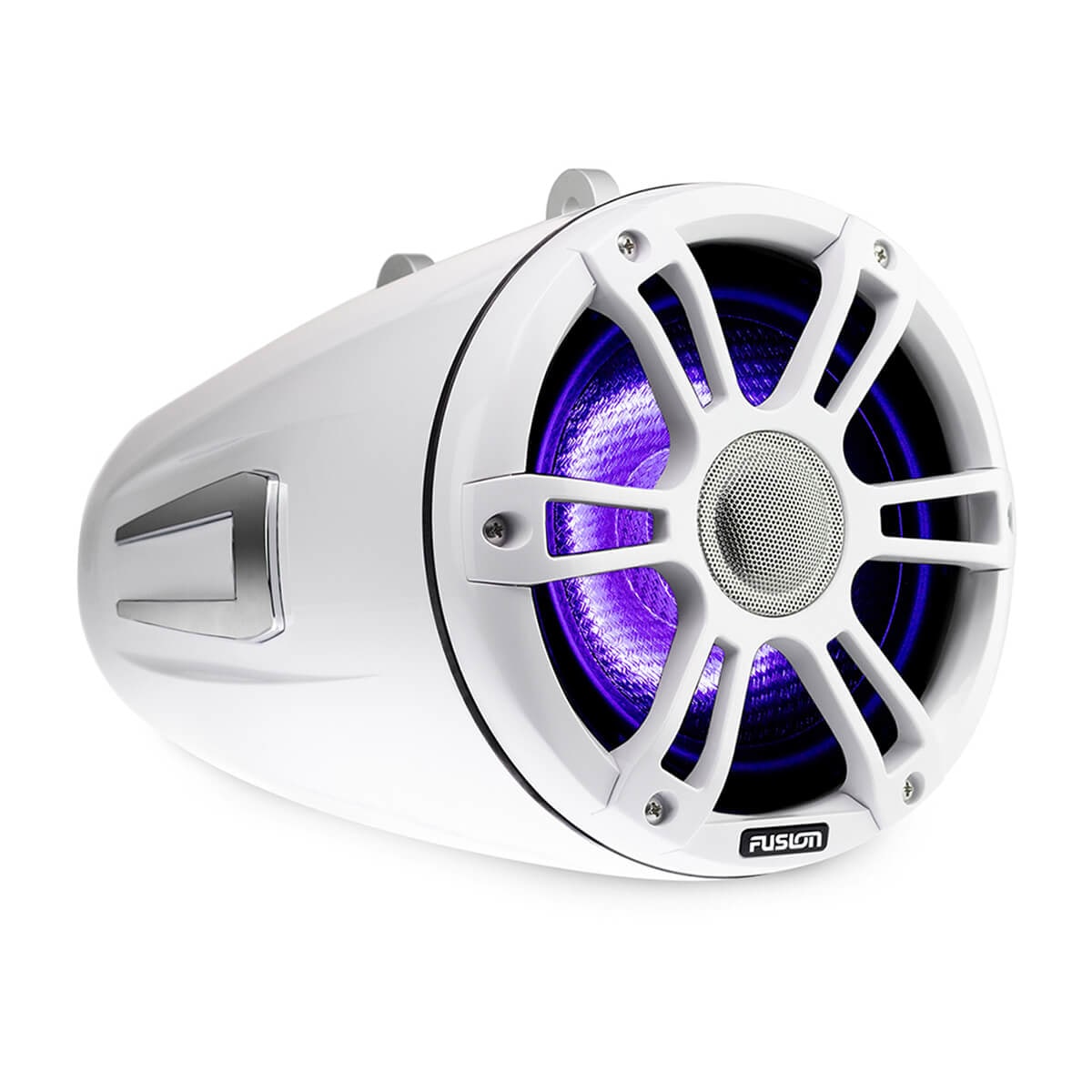

6.5" 230 Watt Sports White Marine Wake Tower Speakers (Pair) with CRGBW
