General |
|
| Physical dimensions (Diameter x Depth) | 8.8" classic speaker: 9.75" x 5.19" (247 x 131.5 mm) 8.8" sports speaker: 8.82" x 5.24" (224 x 133 mm) 7.7" classic speaker: 8.66" x 4.31" (220 x 109.5 mm) 7.7" sports speaker: 7.72" x 4.31" (196 x 111 mm) 6.5" classic speaker: 7.87" x 4.06" (200 x 103 mm) 6.5" sports speaker: 6.93" x 4.11" (176 x 104.5 mm) |
| Water and dust rating | IP65 |
| Configuration | coaxial |
| Speaker size | SG-FL882SPW / SG-FL882SPC / SG-F882W: 8.8" SG-FL772SPW / SG-FL772SPC / SG-F772W: 7.7" SG-FL652SPW / SG-FL652SPC / SG-F652W: 6.5" |
| Peak power (Watts) | 8.8" speaker: 330 W 7.7" speaker: 280 W 6.5" speaker: 230 W |
| RMS power (Watts) | 8.8" speaker: 130 W 7.7" speaker: 100 W 6.5" speaker: 75 W |
| Sensitivity (1 W / 1 m) | 8.8" speaker: 91 dB 7.7" speaker: 91 dB 6.5" speaker: 90 dB |
| Frequency response | 8.8" speaker: 50 Hz - 20 kHz 7.7" speaker: 60 Hz - 22 kHz 6.5" speaker: 70 Hz - 22 kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 8.8" speaker: 25 140 W/Ch 7.7" speaker: 25-120 W/Ch 6.5" speaker: 30-90 W/Ch |
| LED lighting | yes - CRGBW (sports-style only) |
| LED Supply Voltage | 10.8-16 VDC (sports-style only) |
| LED load current @ 14.4 VDC | 300 mA (sports-style only) |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 8.8" speaker: 1.5" 7.7" speaker: 1.4" 6.5" speaker: 1.2" |
| Cone material | CURV cone with rubber surround |
| Tweeter type | Silk dome |
| Compass-safe distance | 8.8" speaker: 162" (412 cm) 7.7" speaker: 141" (358 cm) 6.5" speaker: 122" (310 cm) |
| Warranty | 3 years |
Mounting Dimensions |
|
| Mounting diameter clearance | 8.8" speaker: 7.44" (188 mm) 7.7" speaker: 6.14" (156 mm) 6.5" speaker: 5.35" (136 mm) |
| Mounting depth clearance | 8.8" speaker: 4.13" (106 mm) 7.7" speaker: 3.39" (86 mm) 6.5" speaker: 3.11" (79 mm) |
Optimum Enclosure Recommendations |
|
| Sealed enclosure volume (fully filled with absorption material) | 8.8" speaker: 0.78 cubic ft (22 L) 7.7" speaker: 0.71 cubic ft (20 L) 6.5" speaker: 0.64 cubic ft (18 L) |
| Ported (vented) enclosure volume (lined with absorption material) | 8.8" speaker: 1.23 cubic ft (35 L) 7.7" speaker: 1.06 cubic ft (30 L) 6.5" speaker: 0.88 cubic ft (25 L) |
| Port diameter | 3" (76 mm) |
| Port length | 8.8" speaker: 6.7" (170 mm) 7.7" speaker: 6.3" (160 mm) 6.5" speaker: 6.4" (162 mm) |

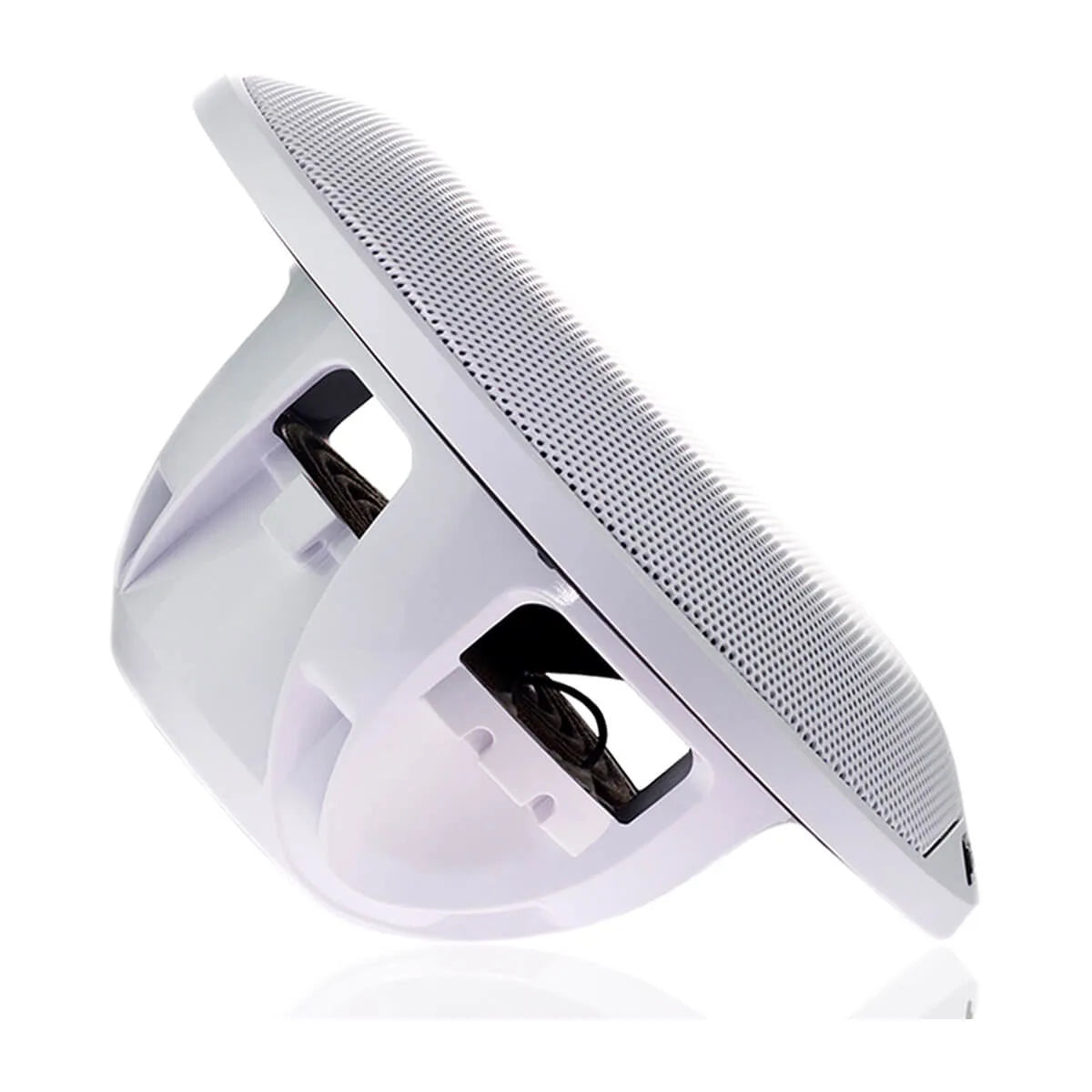

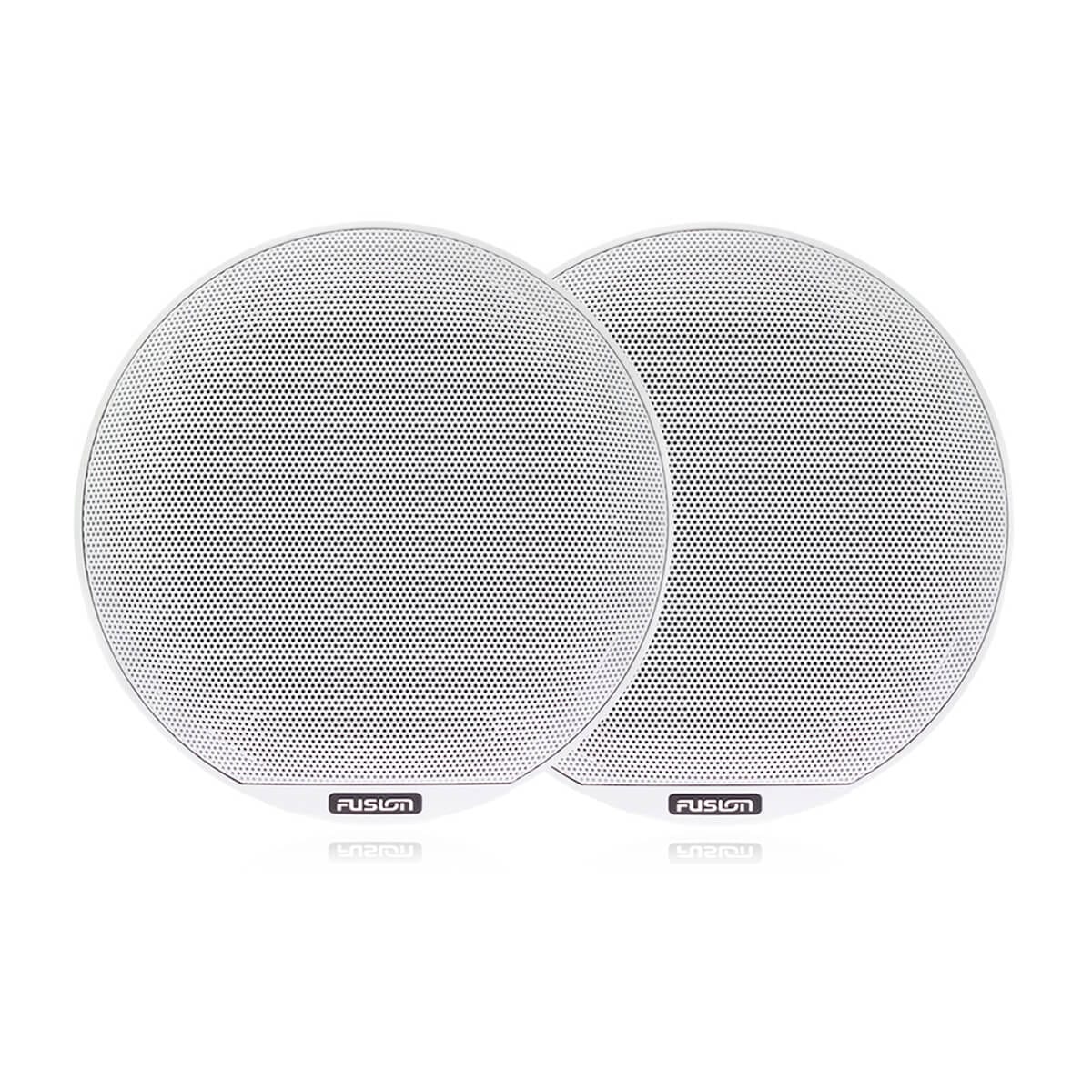

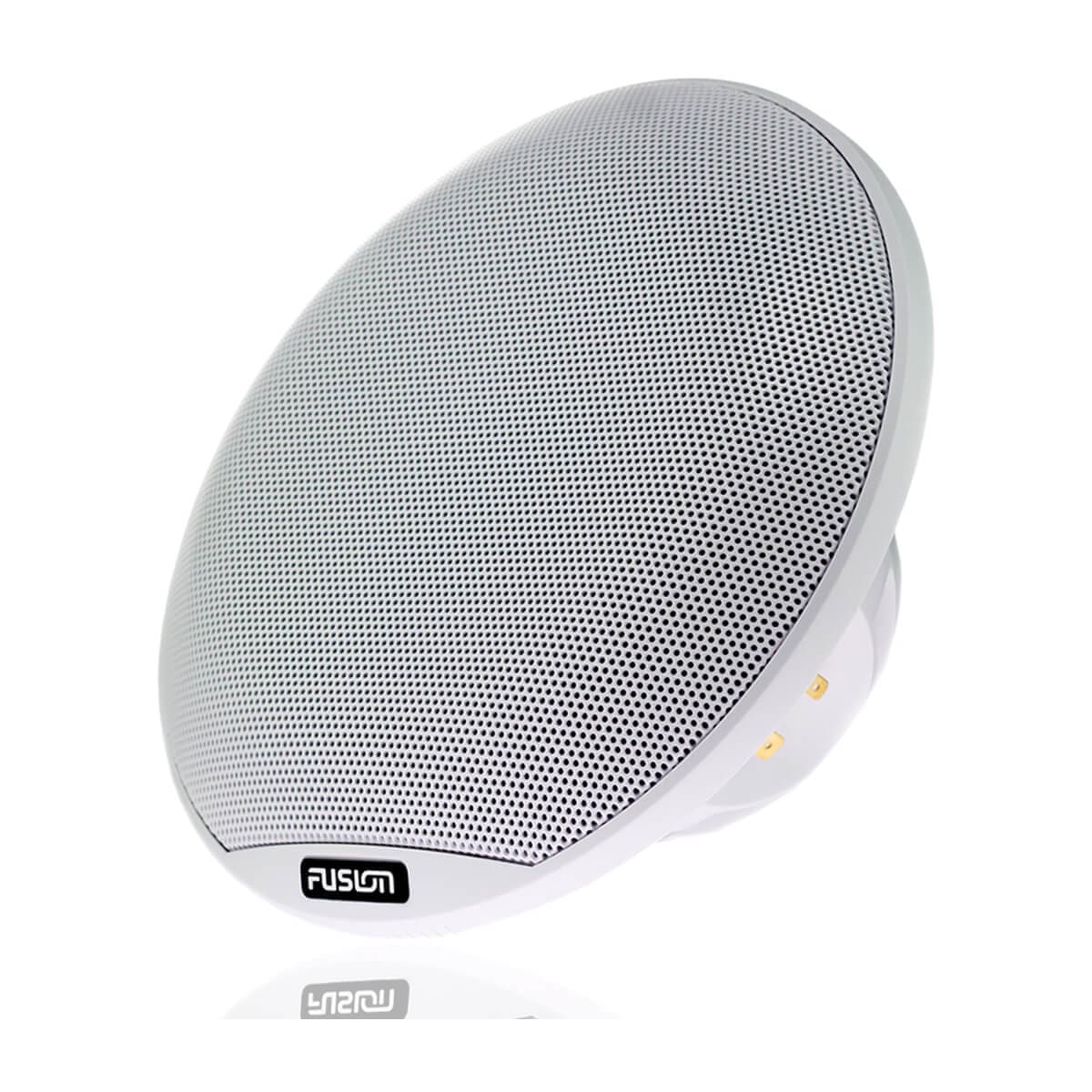

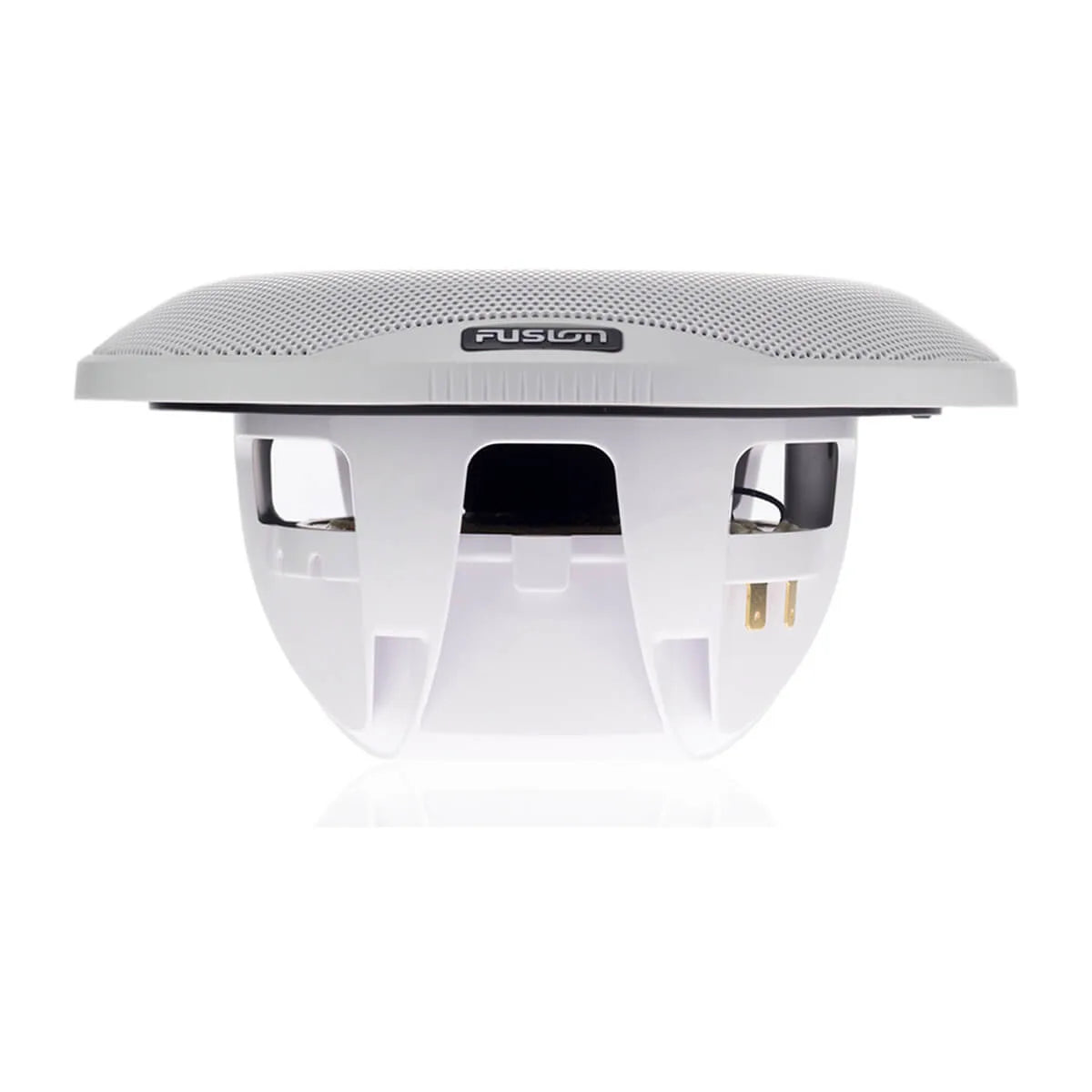

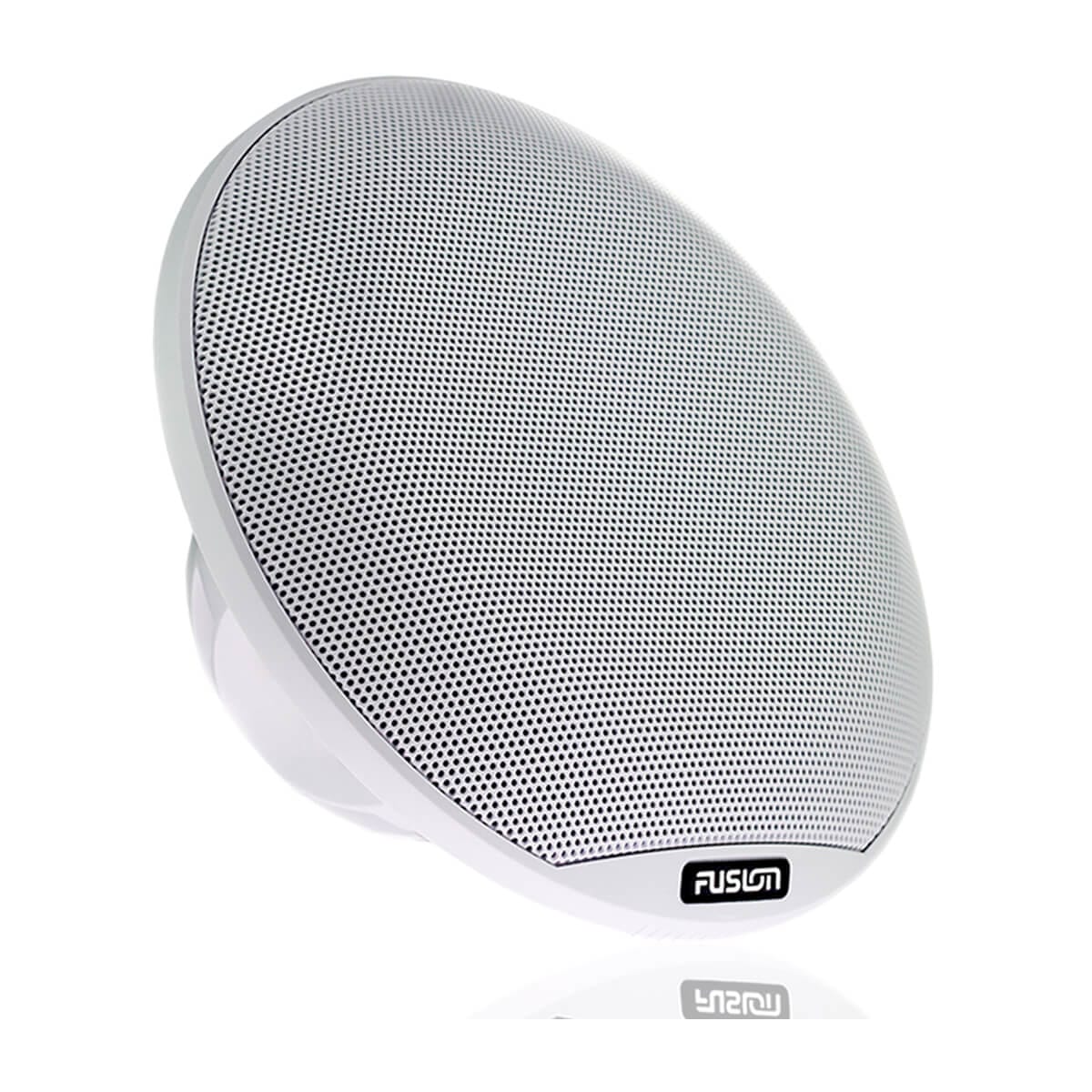

6.5" 230 Watt Coaxial Classic Marine Speakers (Pair)
