- Dimensions (W x D x H): 6.1” x 13.1” x 3.0” (155.5 x 333.6 x 76.2 mm)
- Weight: 28.6 oz (810 g)
- Cable length: 19 ft 8 in (6 m)
- Temperature range: 5° F to 158° F (-15° C to 70° C), white; 5° F to 140° F (-15° C to 60° C), black
- Case material: Glue sealed, high-impact plastic alloy; waterproof to IPX7
- Compass-safe distance: 0" (0 mm)
- Power source input: 9-32 Vdc, unregulated
- Input current: 180 mA at 12 Vdc
- NMEA 2000 Load Equivalency Number (LEN): 6 (300 mA max)
- Position accuracy, typical marine use: < 1 meter CEP, < 3 meters, 95%
- Heading accuracy: 2° RMS
- Heave accuracy: 8 cm RMS

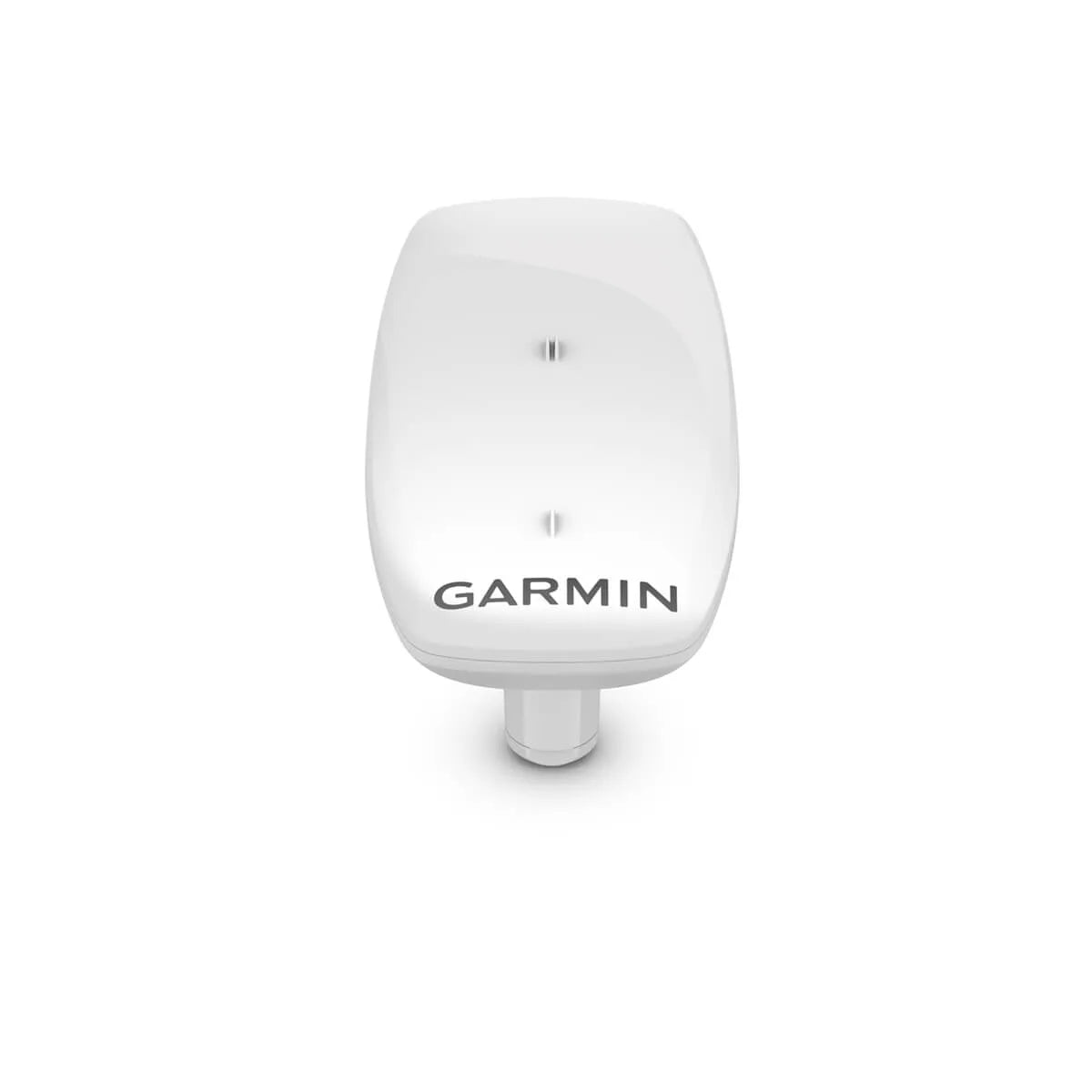

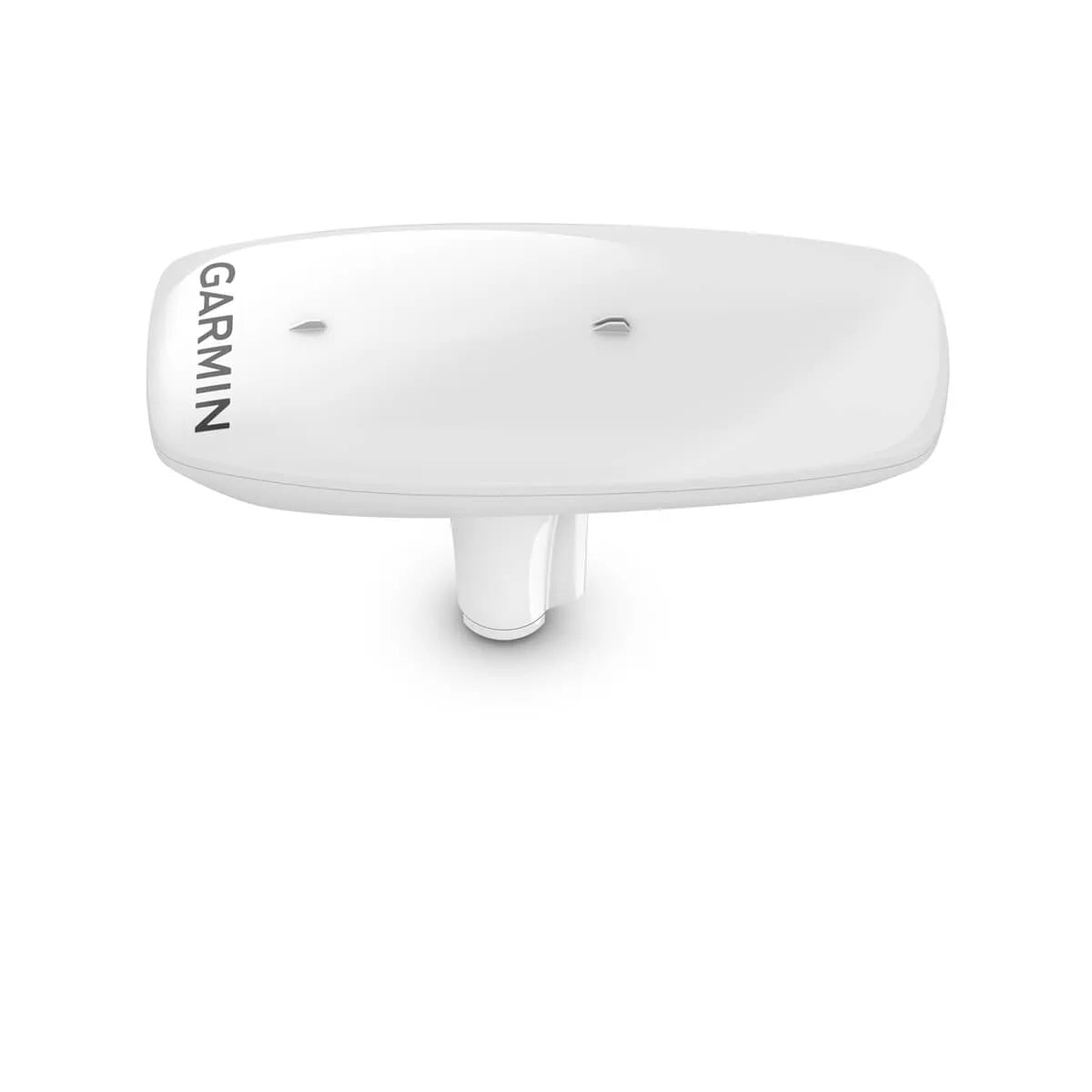

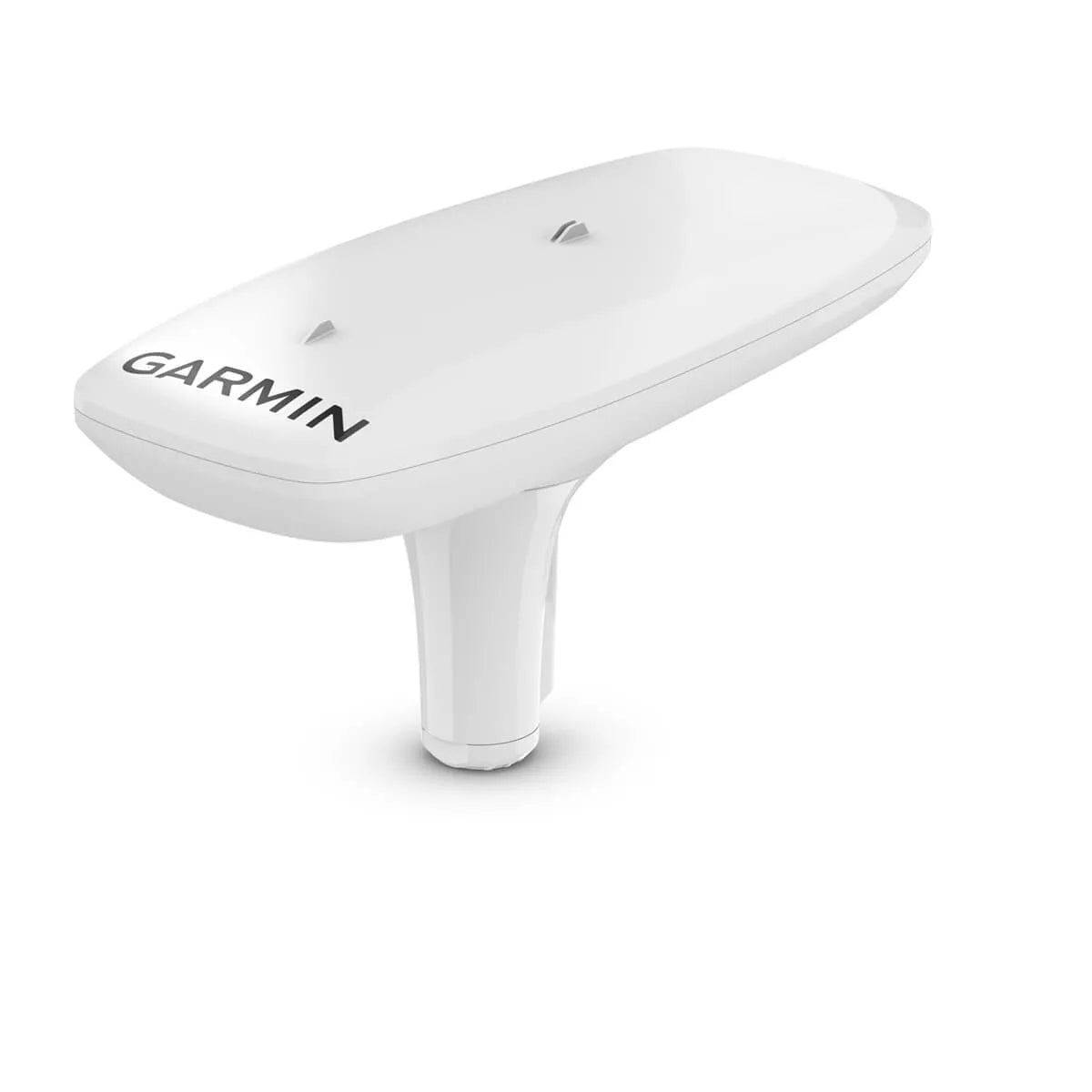

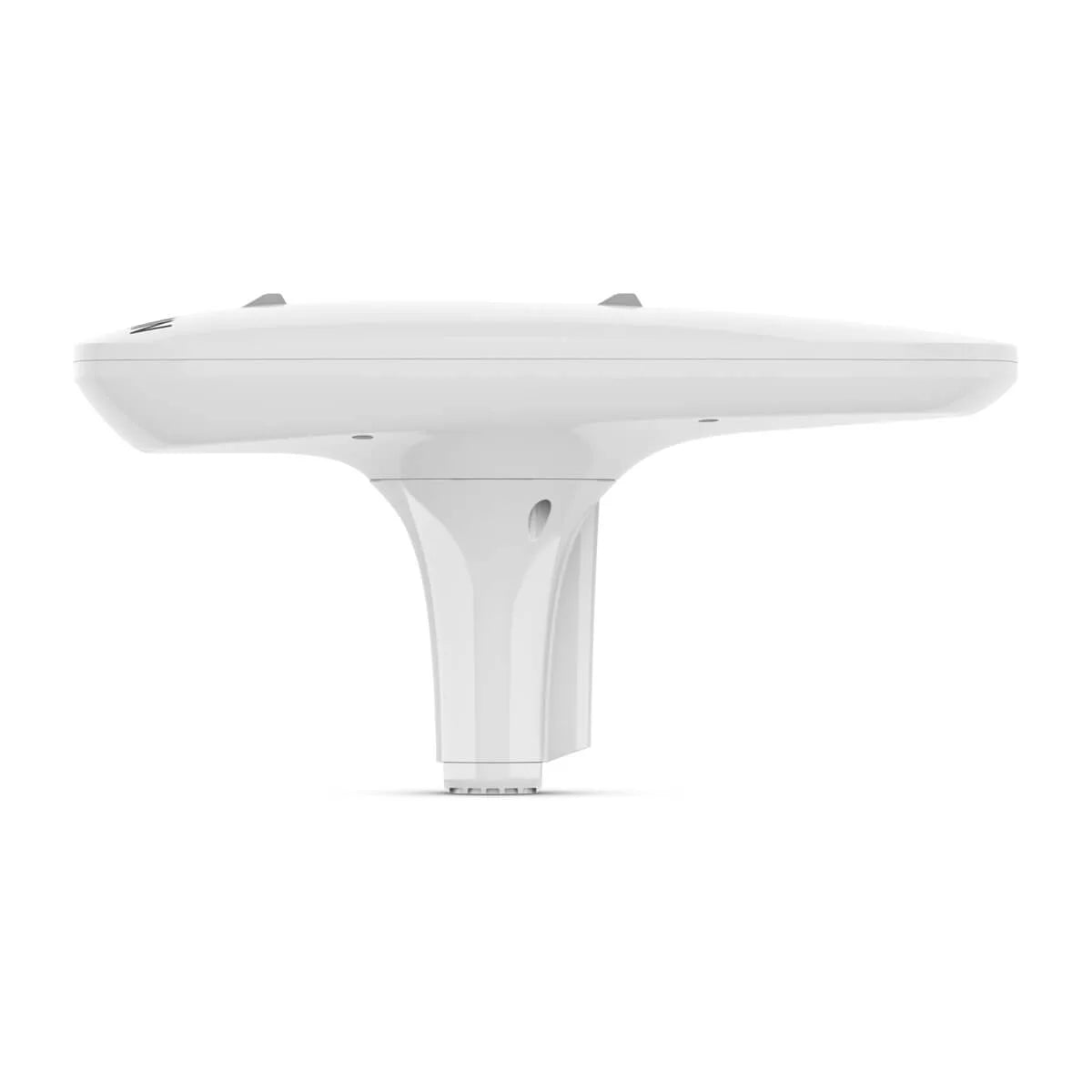

Heading Sensor and Multi-band GPS Receiver
