General |
|
| Dimension | 6.18" x 2.68" x 4.06" (156 x 68 x 103.2 mm) |
|---|---|
| Weight | 0.7 lbs (316 g) |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Display | 2.3" perimeter bonded monochrome LCD |
| Operating temperature | 32° to 122° F (0° to 50° C) |
| Current (max) | 15 A |
| Multi-language interface | Dutch, English, French, German, Italian, Spanish |
Audio |
|
| Amplifier | Class-D (4 ohm) |
|---|---|
Electrical Features |
|
| Power Input | 10.8 - 16 VDC |
|---|---|
| Compass-safe distance | 5.9" (150 mm) |
Stereo Features |
|
| Peak power | 180 watts |
|---|---|
| Rated power output (4 ohm) | 22 watts RMS x 4 @ 14.4 V input < 10% THD |
| Fusion-Link™ control | yes (smart device and Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| Bluetooth® wireless technology | |
| ANT® wireless technology | |
| DAB+ ready | |
| Software updates | Over-the-air updates via Fusion-Link™ app |
Sources |
|
| Supported sources | AM, FM, BLUETOOTH®, AUX x1 DAB+ (available in Europe and Australia only) |
|---|---|
Networking & Connections |
|
| Auxiliary inputs (RCA) | 1 |
|---|---|
| AM/FM ports (Motorola antenna connector) | 1 |
| Speaker connections | 4 (2 zone amplified) |
| RCA pre-out (left, right and subwoofer) | 1 zone (requires external amplification) |
| Line out | Zone 1 (L + R, requires external amplification) |
| Subwoofer out | Zone 1 (mono output, requires external amplification) |
| Wireless frequencies/protocols | BLUETOOTH®: 2.4 GHz @ +12 dBm nominal ANT®: 2.4 GHz @ +7 dBm nominal |
| ANT® wireless range | Up to 10 ft |
| Bluetooth® wireless range | up to 30 ft |

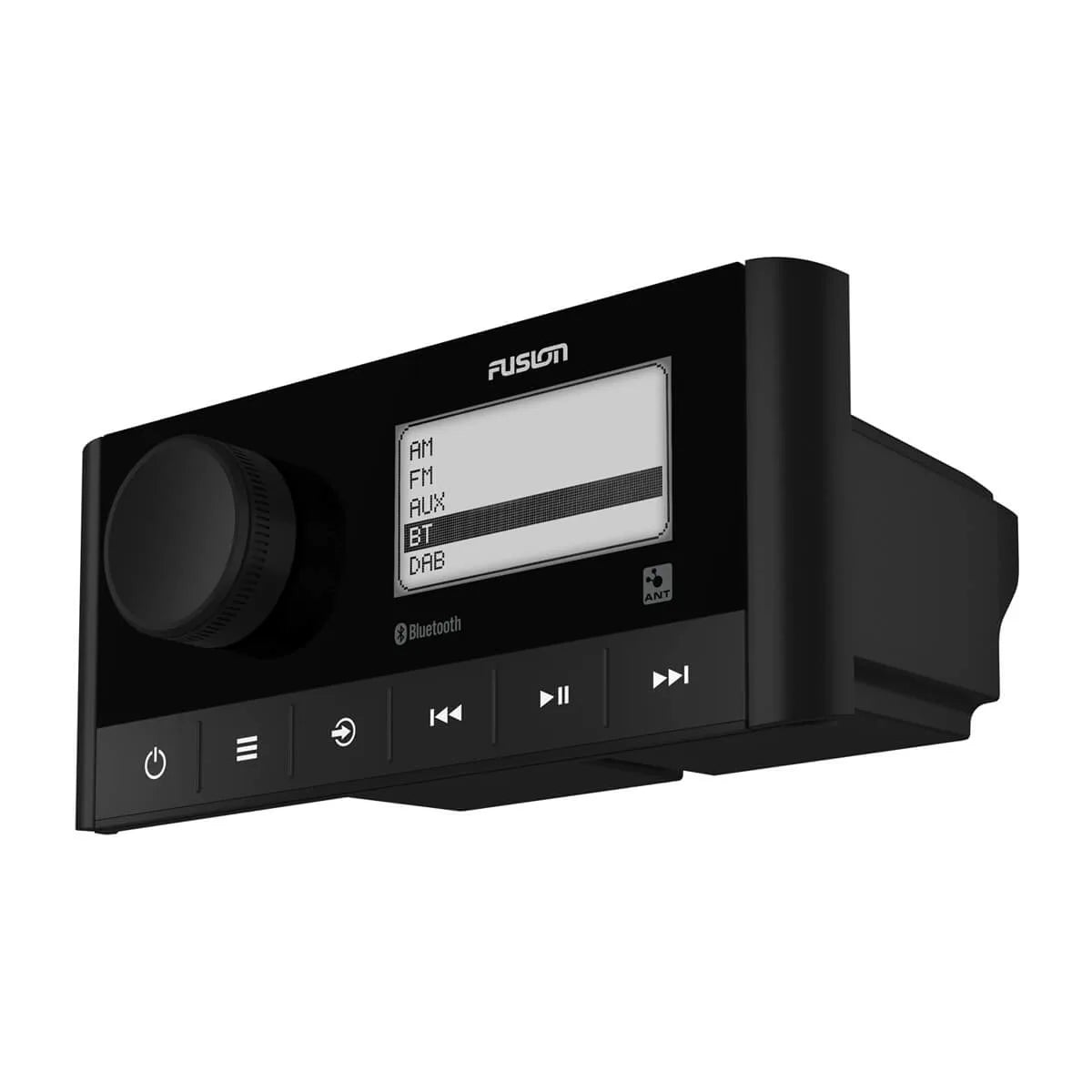

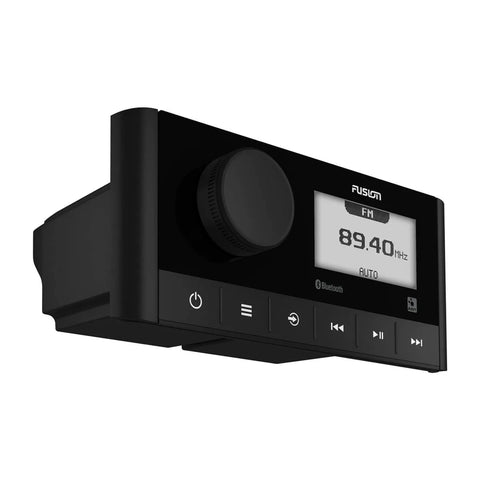

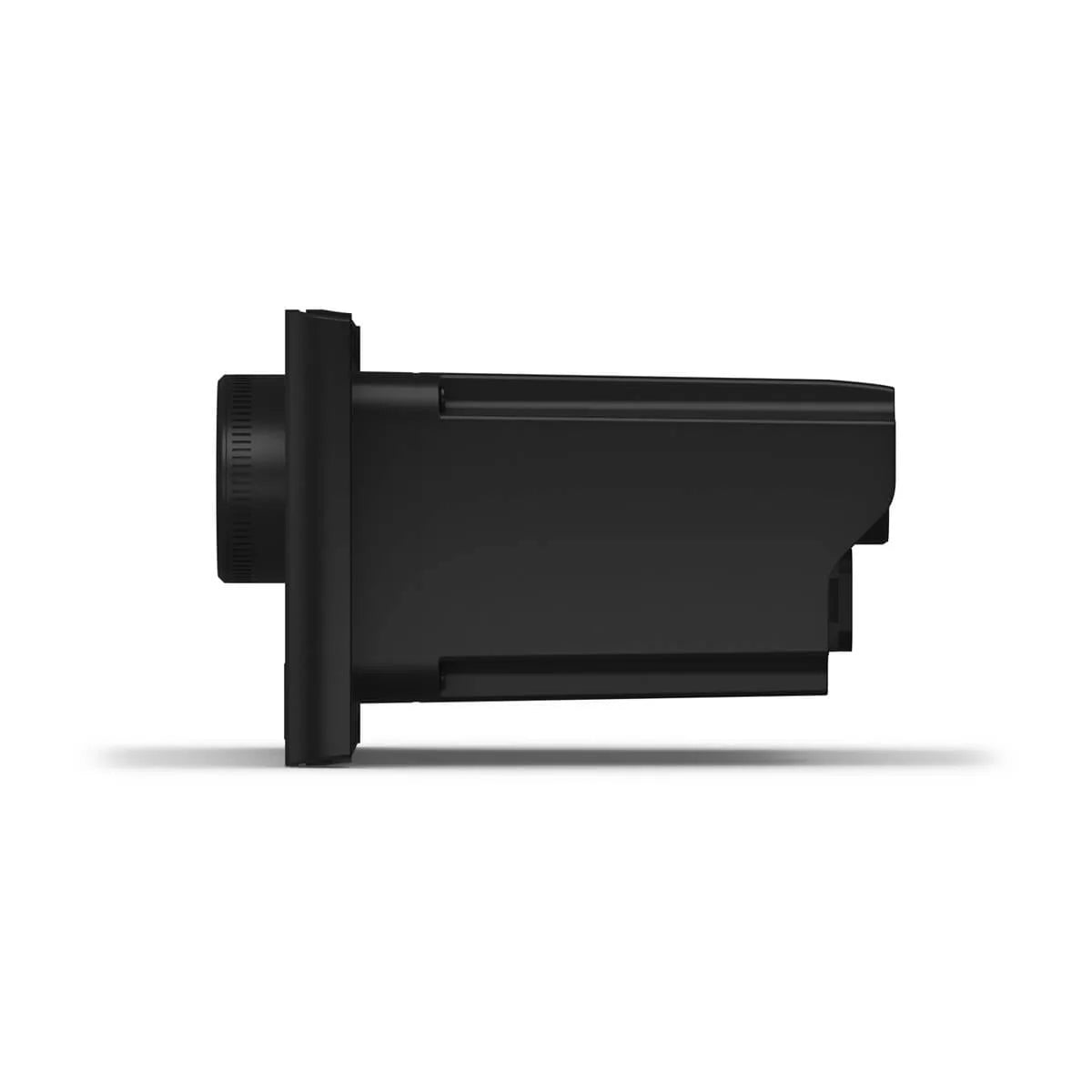

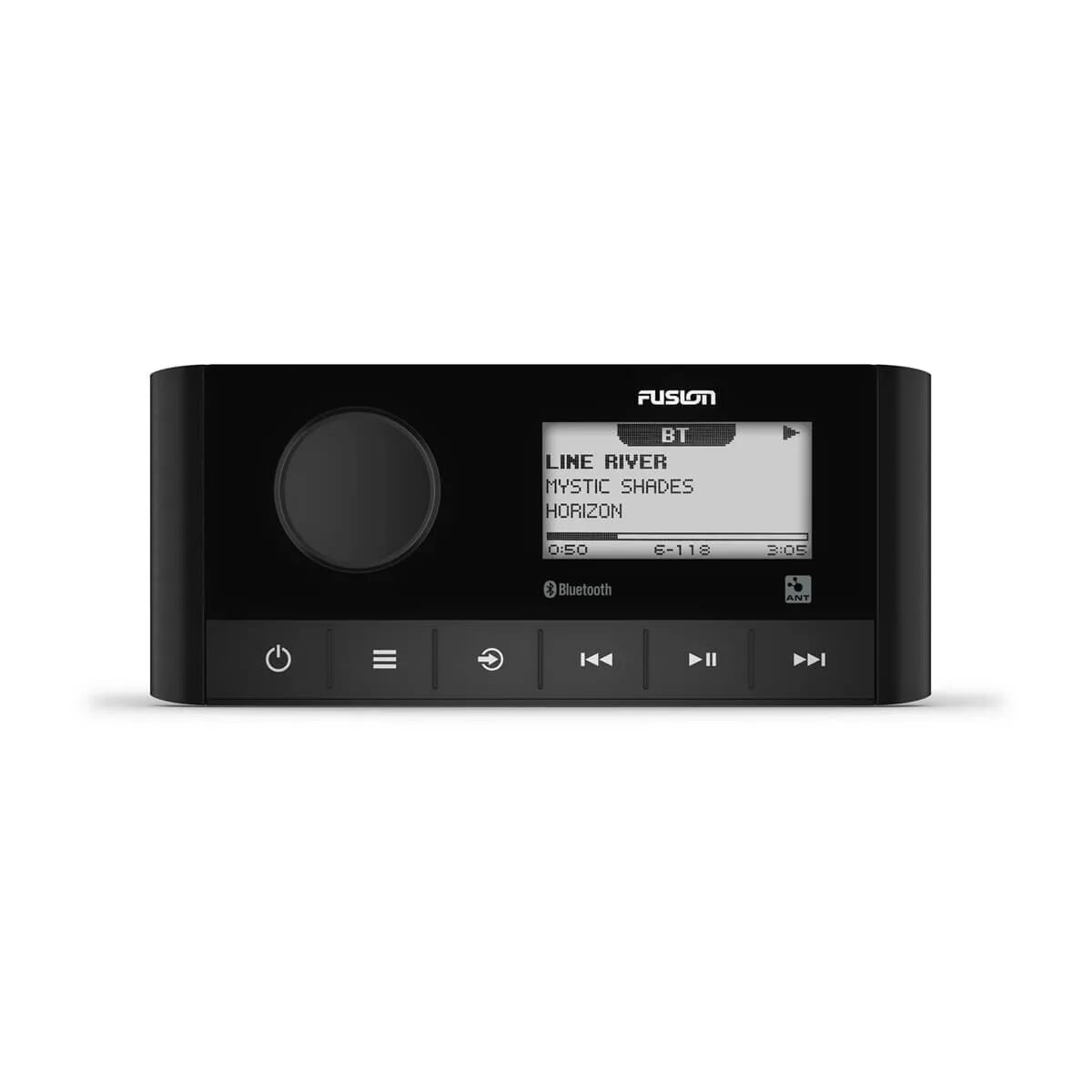

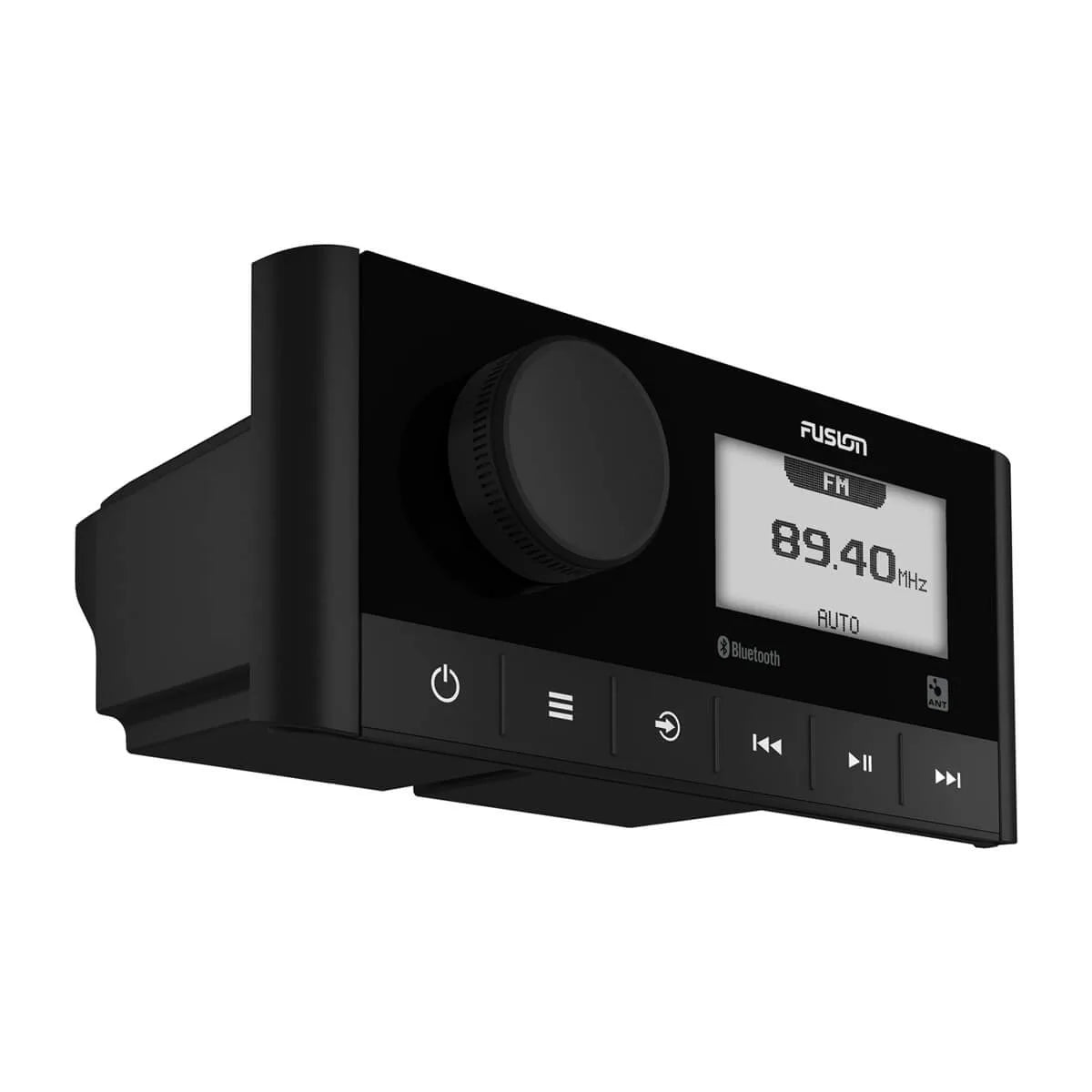

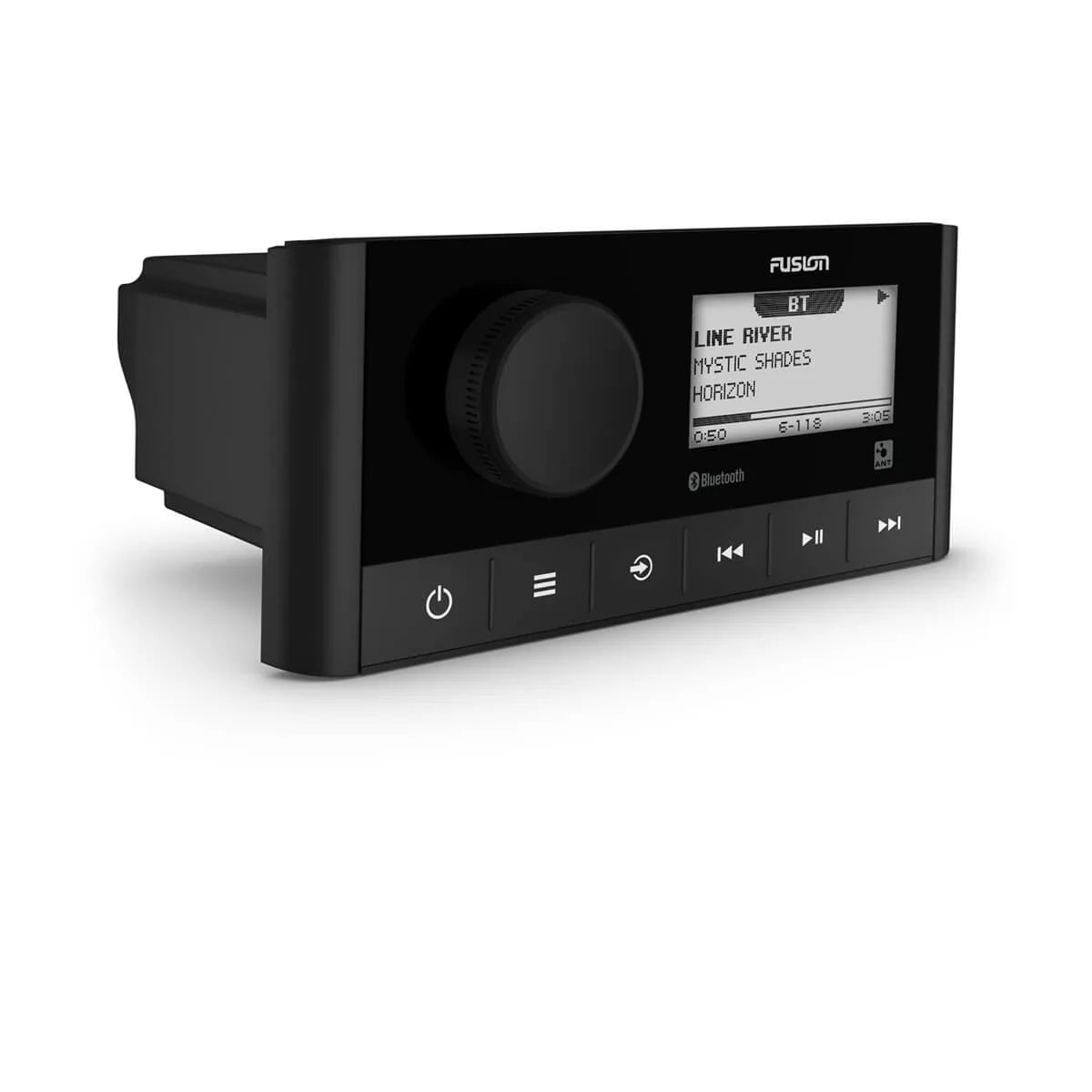

Fusion® MS-RA60 Marine Stereo
