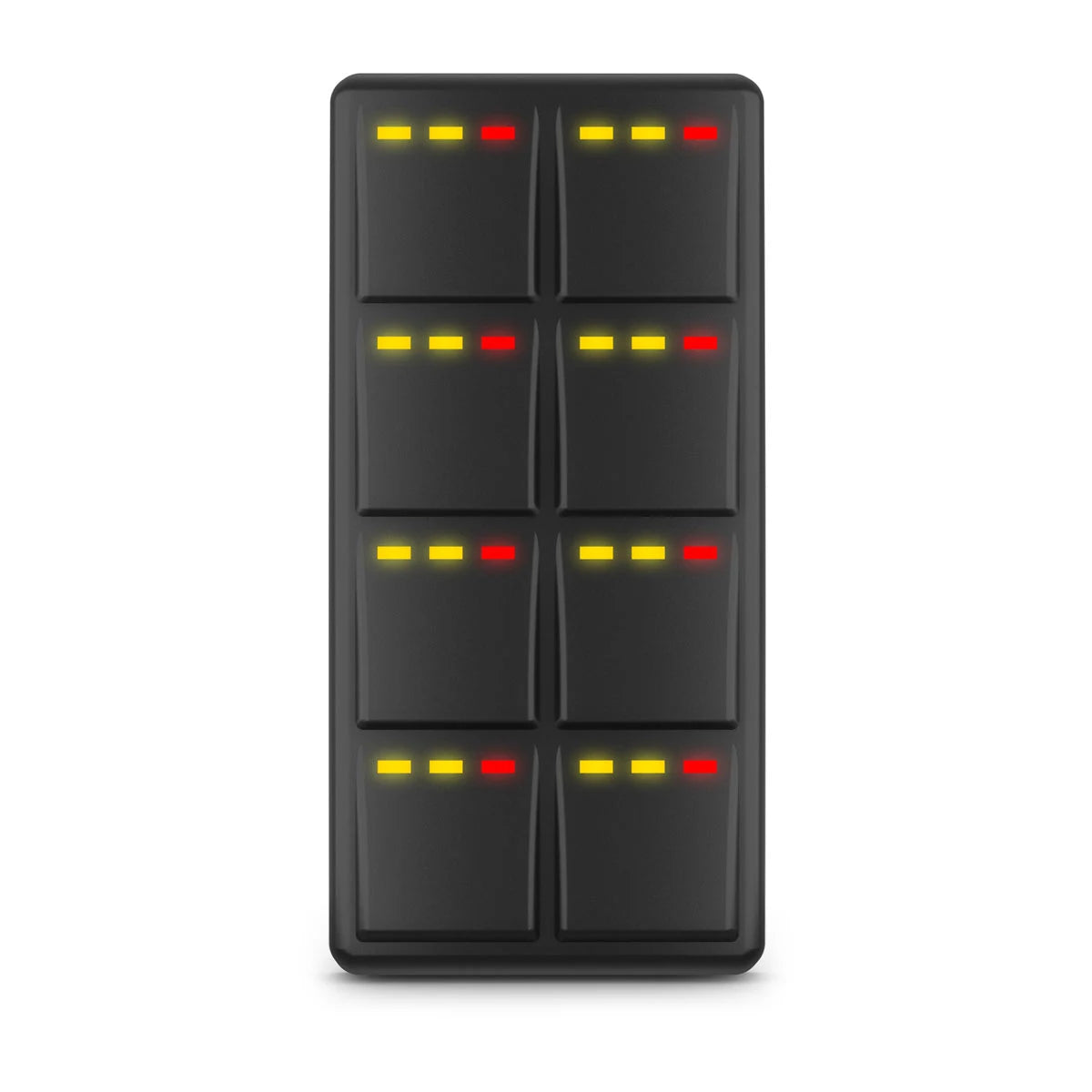

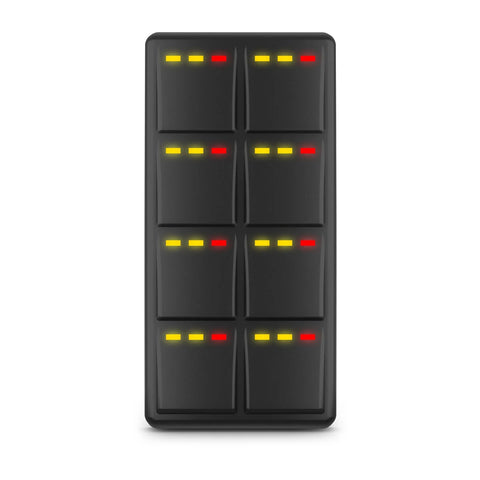

SP8
General |
|
| Manufacturer | Grayhill, Inc. |
| Series | 3K |
| Package | bulk |
| Dimensions | 4 x 2: (55.2 x 115.8 x 14.4 mm) 2 x 4: (104.7 x 62.8 x 21.7 mm) |
| Switch type | snap dome |
| Number of keys | 8 |
| Matrix (columns x rows) | 2 x 4 4 x 2 |
| Illumination | yes |
| Key type | rubber overlay |
| Output type | CAN-bus (J1939) |
| Legend color | white |
| Key color | black |
| Mounting type | panel mount, front |
| Power supply | 12/12 V |
| Connector | 4-pin Dutch DT |
| Operating tempature | -40° C ~ 85° C |
| Ingress protection | IP67 |
SP12
General |
|
|
Dimensions |
127.5 x 90.5 x 12.2 mm |
| Weight (unit only) | 0.2 kg |
| Ambient temperature | -20° C to +55° C |
| Enclosure water rating | Ingress Protection - IP21 |
| Communication | CAN-bus NMEA 2000® |
| Regulation comp | ABYC, RoHS, CE |
Power Supply |
|
| Power consumption | max/average 500 mA/0.25 mA |
| Supply voltage | 9-32 Vdc |
Connector |
|
| NMEA 2000 | micro 5-pin M12 Male |

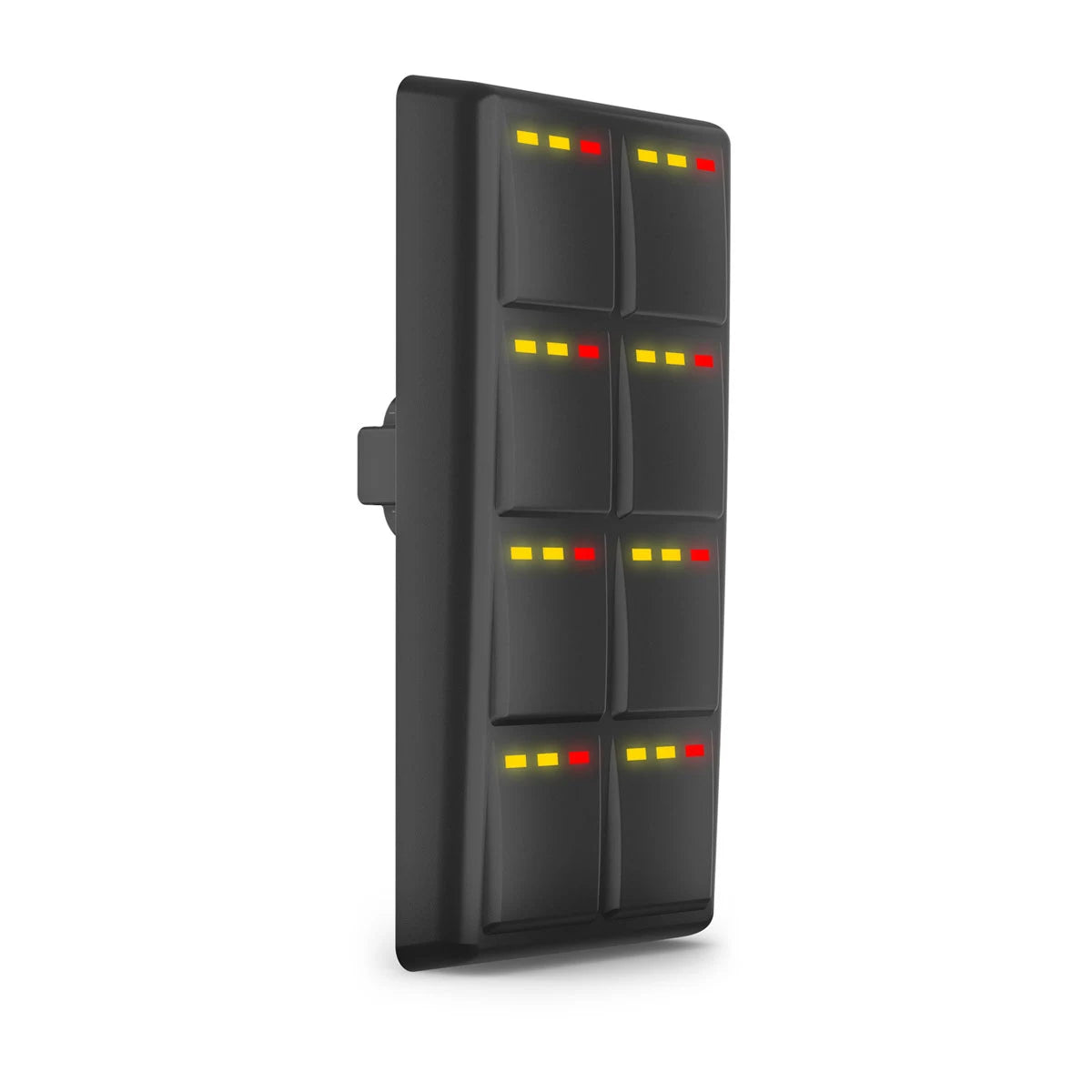

SP8, Vertical
