General |
|
| Dimension | 5.1" x 5.1" x 2.2" (130 x 130 x 56 mm) |
|---|---|
| Weight | 1.05 lbs (475 g) |
| Water rating | IPX2 (when properly installed) |
| Operating temperature | 32° to 122° F (0° to 50° C) |
| Current (max) | 15 A |
Audio |
|
| Amplifier | Class-D (2 ohm stereo-stable) |
|---|---|
Electrical Features |
|
| Power Input | 10.8 - 16 VDC |
|---|---|
| Compass-safe distance | 5.9" (150 mm) |
Stereo Features |
|
| Peak power | 280 W |
|---|---|
| Rated power output (2 ohm) | 43 watts RMS x 4 @ 14.4 V input < 10% THD |
| Rated power output (4 ohm) | 26 watts RMS x 4 @ 14.4 V input < 10% THD |
| Built-in Digital Signal Processing (DSP) | yes (with custom DSP profile setup using Fusion-Link™ app) |
| Stereo networking | yes (wired) |
| Fusion-Link™ control | yes (MFD, smart device and Garmin watch) |
| Multi-Zone™ technology | 4 zones |
| Bluetooth® wireless technology | |
| ANT® wireless technology | |
| SiriusXM-ready | |
| DAB+ ready | |
| Optical audio input | |
| Supports ERX wired remote | |
| Supports NRX wired remote | |
| Software updates | Over-the-air updates via Fusion-Link™ app / USB |
| Warranty | 3years |
Sources |
|
| Supported sources | AM, FM, BLUETOOTH®, Apple® AirPlay® 2, digital optical input, USB audio, iPhone®, iPod®, AUX x1, UPnP, MTP SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner) DAB+ ready (available in Europe and Australia only) |
|---|---|

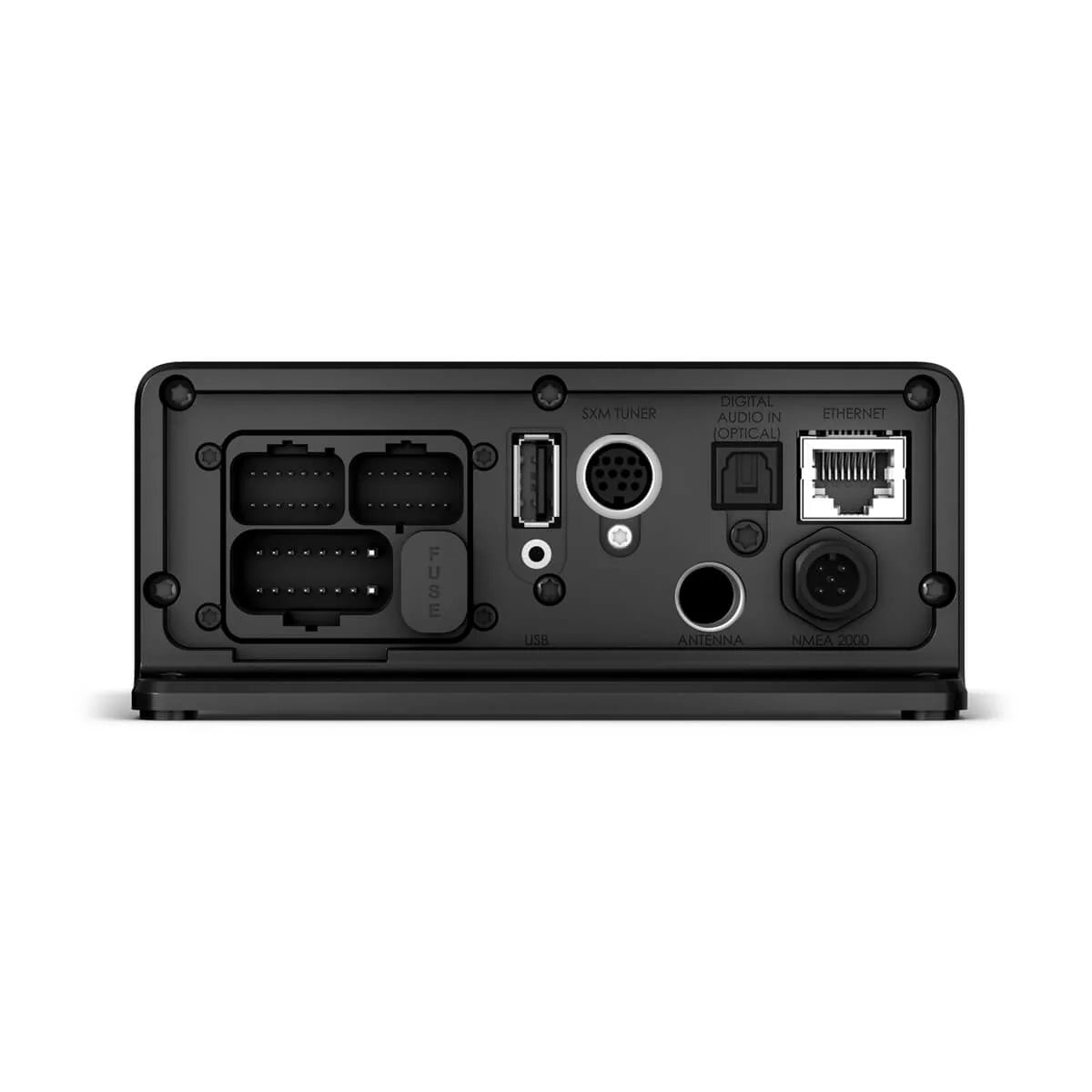

Networking & Connections |
|
| Auxiliary inputs (RCA) | 1 |
|---|---|
| Optical audio inputs (Digital Optical Input SPDIF) | 1 |
| Ethernet ports | 1 |
| NMEA 2000® ports | 1 |
| NMEA 2000® LEN | 1 (50 mA) |
| USB 2.0 ports | 1 |
| SiriusXM ports | 1 |
| AM/FM ports (Motorola antenna connector) | 1 |
| Speaker connections | 4 (2 zone amplified) |
| RCA pre-out (left, right and subwoofer) | 4 zones (requires external amplification) |
| Line out | 4 (L + R per zone, requires external amplification) |
| Subwoofer out | 4 (1 mono output per zone, requires external amplification) |
| Wireless frequencies/protocols | BLUETOOTH®: 2.4 GHz @ +12 dBm nominal ANT®: 2.4 GHz @ +7 dBm nominal |
| ANT® wireless range | Up to 10 ft |
| Bluetooth® wireless range | up to 30 ft |

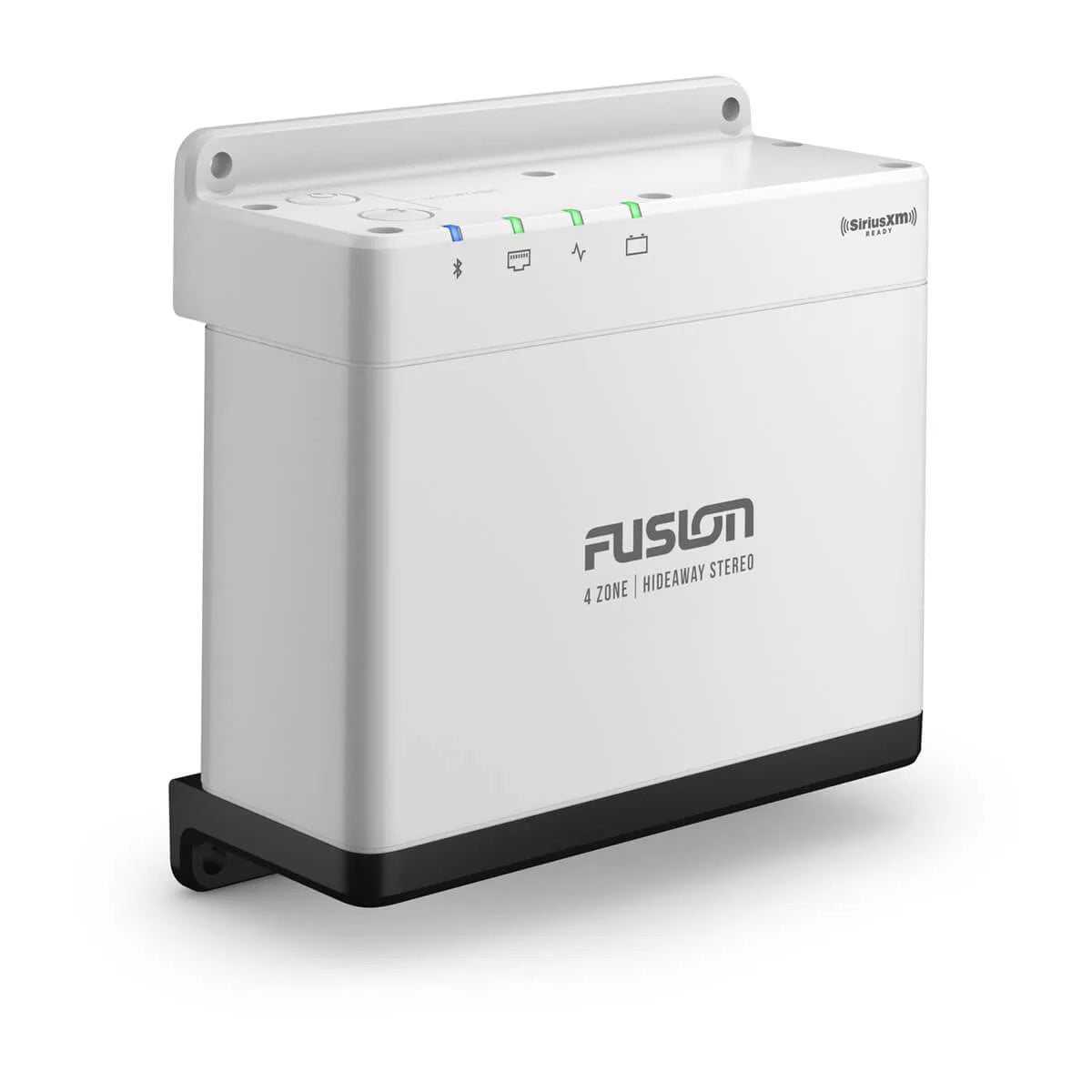

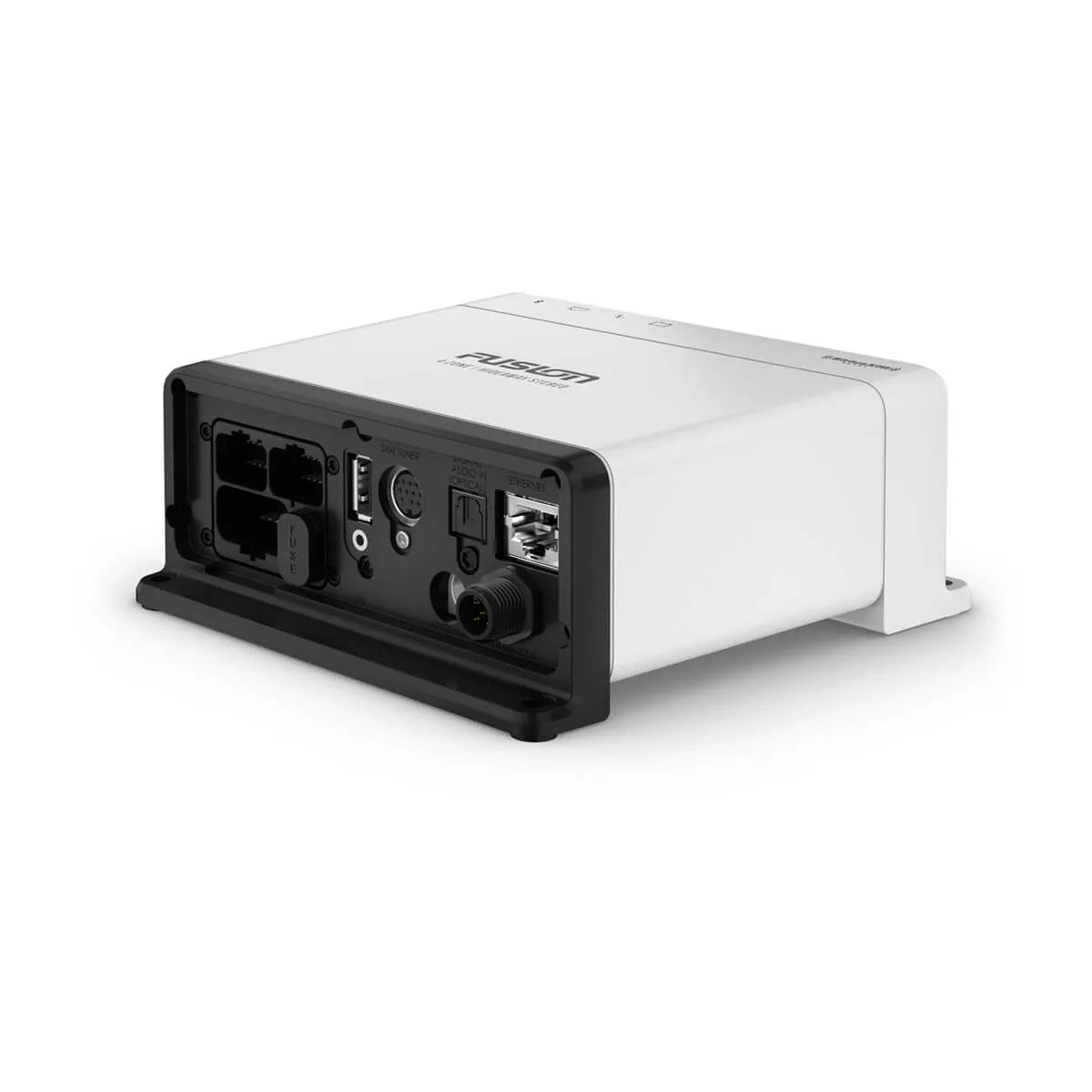

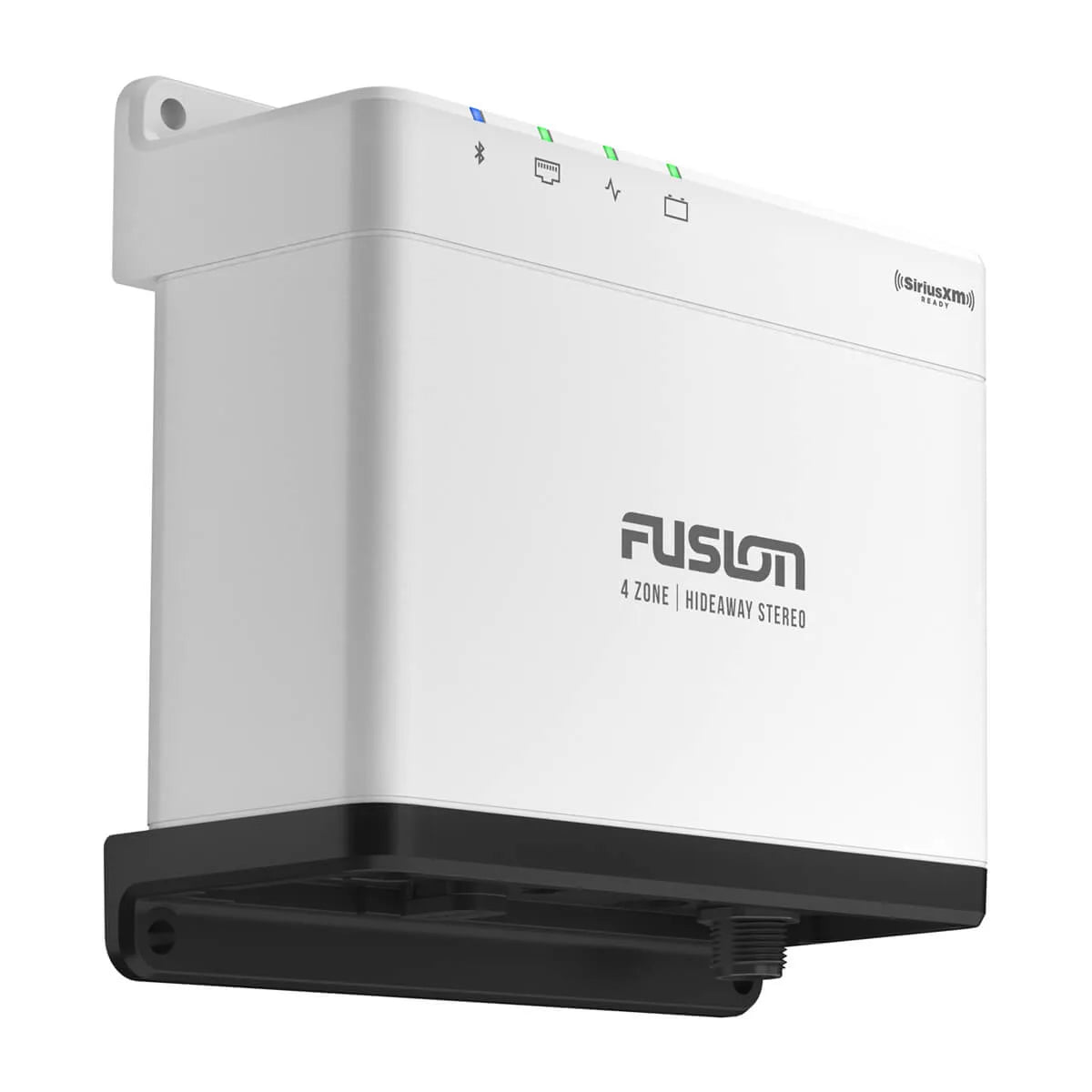

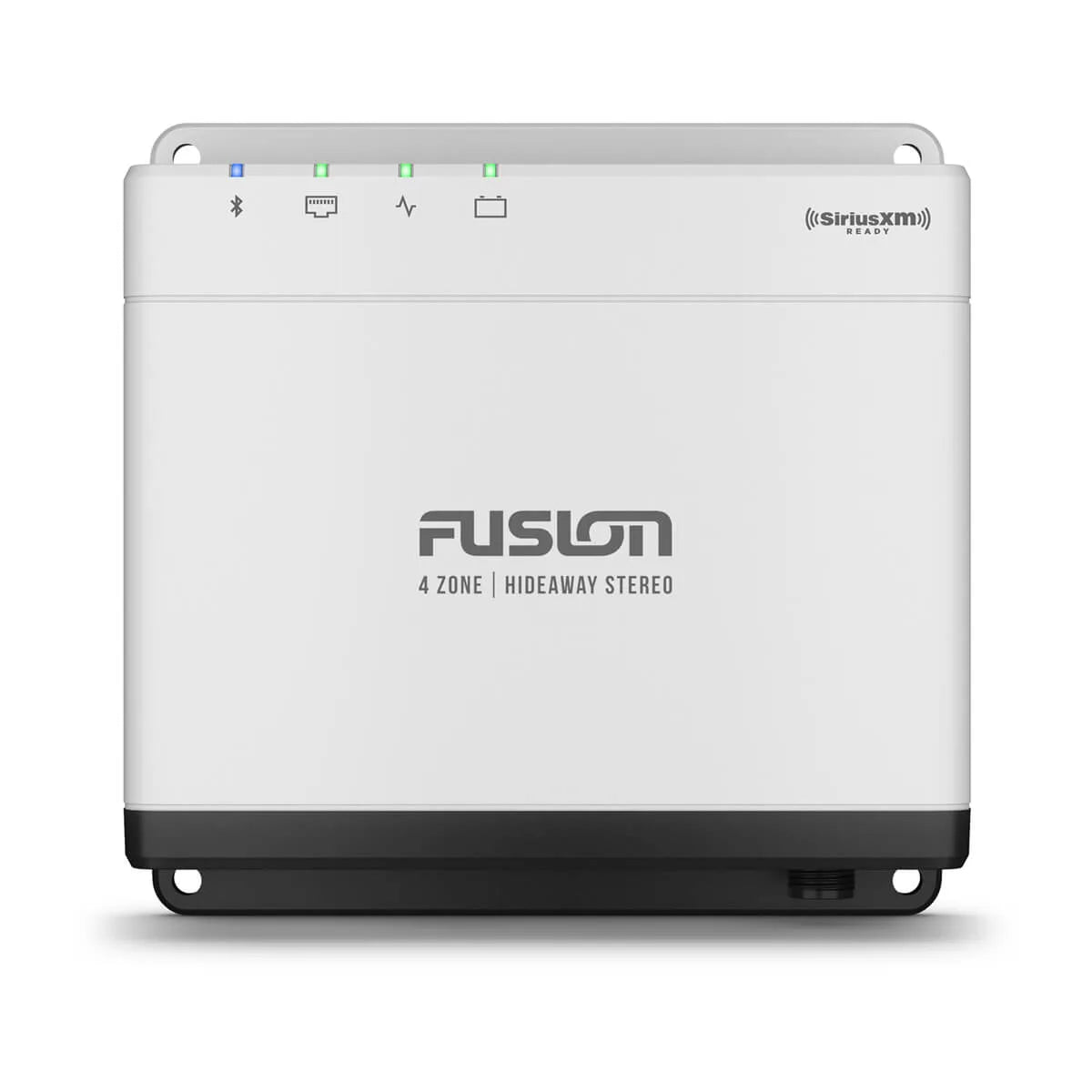

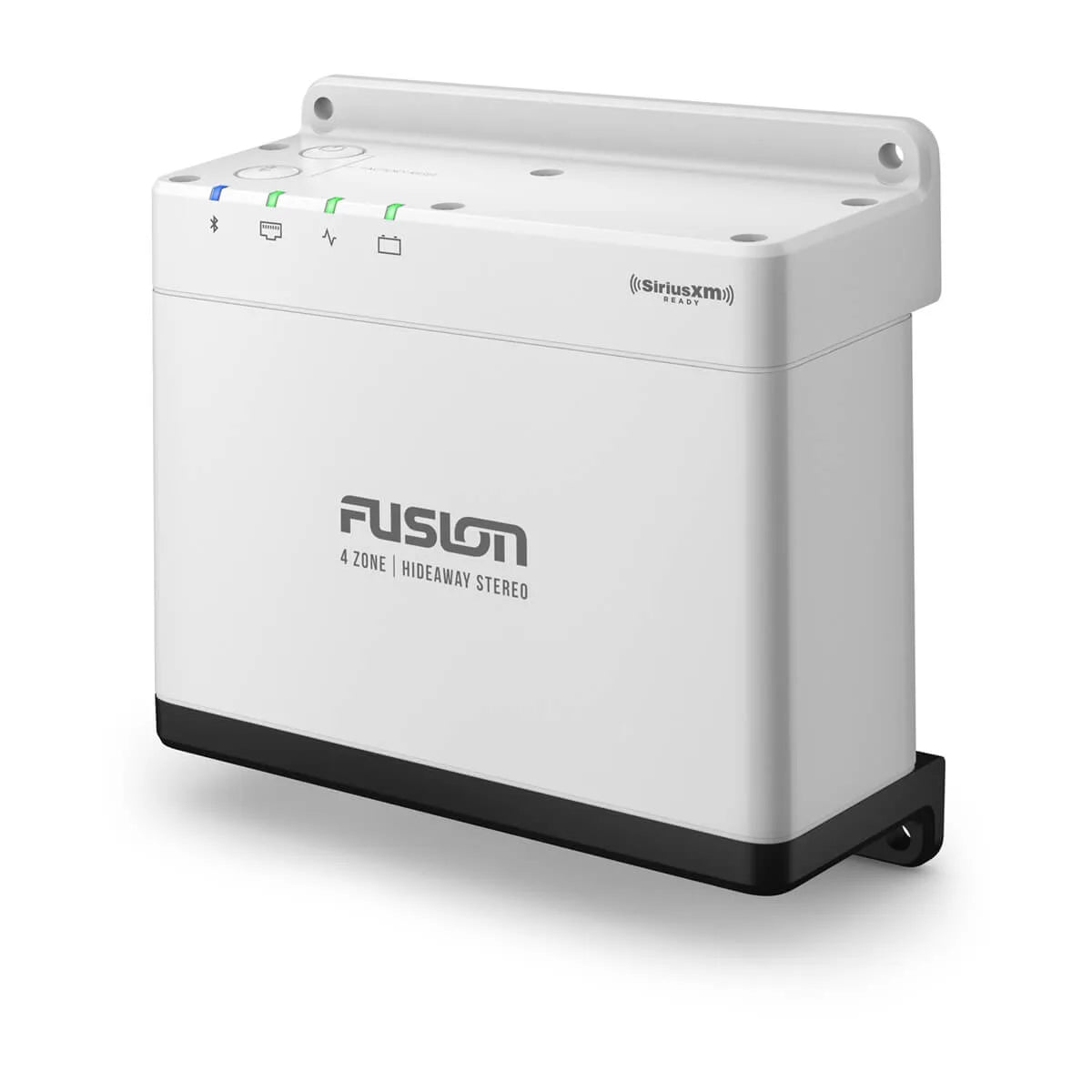

Fusion® Apollo™ MS-WB675 Marine Hideaway Stereo
