General |
|
| Dimension | 3'' x 2.97'' x 2.28'' (75.8 x 75.5 x 57.87 mm) |
|---|---|
| Weight | 2.6 oz (75 g) |
| Water rating | IPX7 |
| Battery life | 10 hours |
Maps & Memory |
|
| Waypoints/favorites/locations | 5000 |
|---|---|
Sensors |
|
| GPS | |
|---|---|
| Has built-in receiver | |
| Receiver | 260/455 kHz |
| Supports WAAS | |
Optional Map Support |
|
| Garmin Quickdraw Contours | |
|---|---|
Sonar Features |
|
| Displays sonar | |
|---|---|
| Traditional sonar (dual frequency/beam) | |
| Frequency | 260/455 kHz |
| Transmit power | 7.78 dBm maximum |
| Bottom Lock (shows return from the bottom up) | |
| Water Temperature Log | |
Networking & Connections |
|
| Bluetooth® pairing | |
|---|---|
Fishfinder Features |
|
| Fish Symbol ID (helps identify fish targets) | |
|---|---|
| Autogain technology (minimizes clutter; maximizes targets) | |
| Adjustable depth line (measures depth of underwater objects) | |
| A-scope (real time display of fish passing through transducer beam) | |
| Water temperature sensor included | |
| Depth range shading | |
Castable Fishfinder Features |
|
| Included teather length | 16.4 ft (5 m) |
|---|---|
| Streaming range | 60 m (200') |

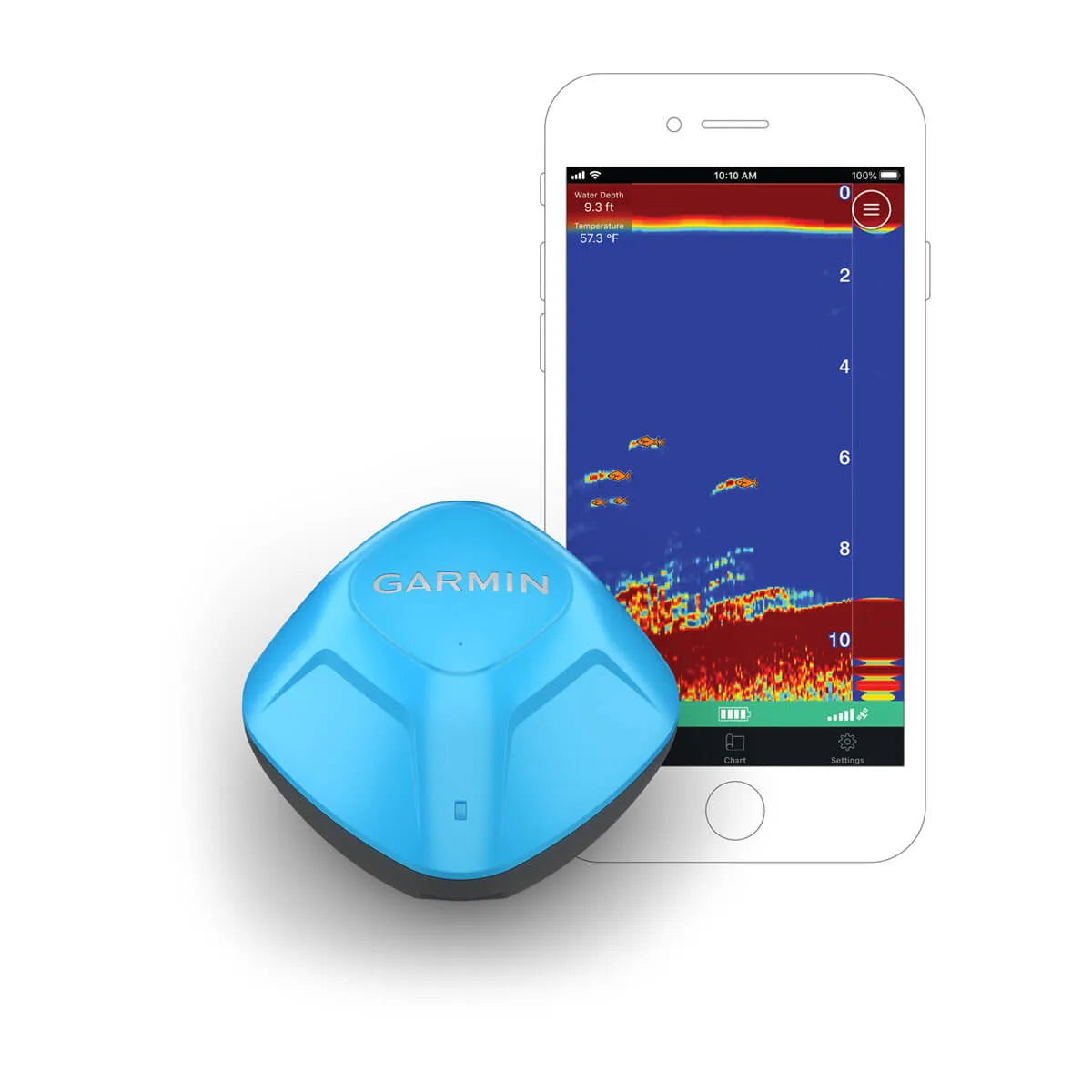

Castable Sonar Device – With GPS
