General |
|

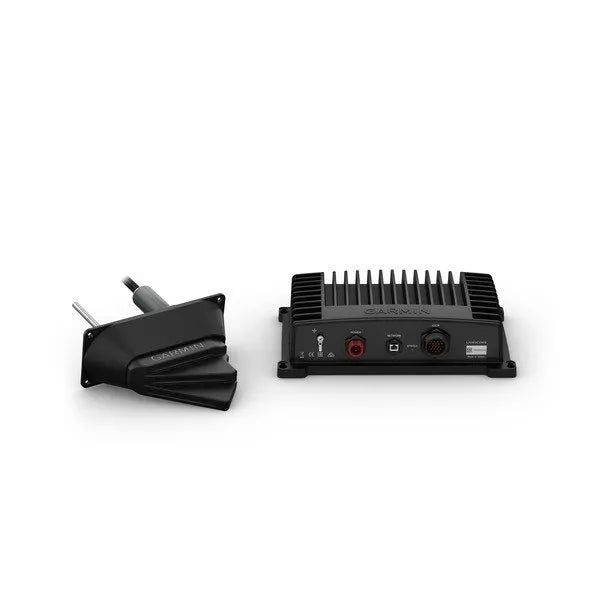

| Dimension | GLS 10 sonar black box: 9.6” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LVS32-TH transducer without fairing block: 9.6” x 1.8” x 5.4” (24.4 x 4.6 x 13.7 cm) LVS32-TH transducer with fairing block: 9.6” x 3.4” x 8.1” (24.4 x 8.6 x 20.6 cm) |
|---|---|
| Weight | GLS 10 sonar black box: 4.3 lbs (2.0 kg); LVS32-TH transducer without fairing block: 4.4 lbs (2.0 kg) LVS32-TH transducer with fairing block: 5.0 lbs (2.3 kg) |
| Water rating | IPX7 |
| Temperature range | GLS 10 Black Box: Operating: -15 C to 70 C Panoptix LiveScope LVS12 Transducer: Operating: 0 C to 40 C |
Electrical Features |
|
| Power input | 10-32 V |
|---|---|
| Power usage | 21 W typical, 58 W max |
| Fuse | 7.5 A |
Sonar Features |
|
| Frequency | 530 - 1,100 kHz |
|---|---|
| Transmit power | 500 W |
| Maximum depth | Forward: 200’ (61.0 m) |
Networking & Connections |
|
| Garmin Marine Network Ports | 1 (small connector) |
|---|---|
Thru-hull Mount
