- Unit dimensions (WxHxD): 3.4" x 3.4" x 3.1" (8.7 x 8.7 x 7.9 cm)
- Power: Hardwired (10 VDC to 16 VDC or over Garmin marine network through the Garmin Power and Audio Module (010-12527-00) sold separate)
- Camera connection: Garmin Marine Network
- Images: Standard and reversed; rotated, 180
- Night vision: Built-In IR LEDs
- Night vision distance: Up to 30 meters
- Viewing angle: 99 degrees horizontal/74 degrees vertical
- Image sensor: 2.0 megapixel ½.8” SONY STARVIS CMOS
- Scanning system: progressive scan
- White balance: auto
- Shutter speed: auto
- Resolution: Up to 1920 x 1080 pixels*
- Video output: H.264 over GMN
- Operating temperature: -20C to 60C
- Water rating: IPX7
- Power consumption: Max 5 W with IR LEDs On
- Operating current @ 12 VDC: 210mA (IR Off)/370mA (IR ON)
*All current Garmin chartplotters can support up to 1280 x 720 pixels

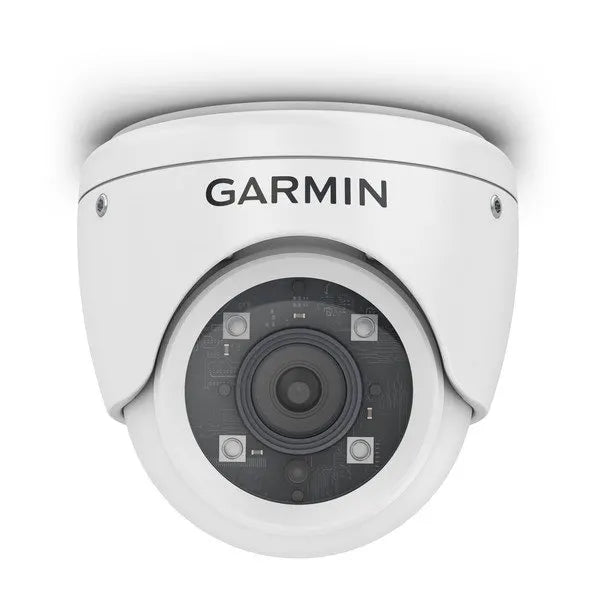

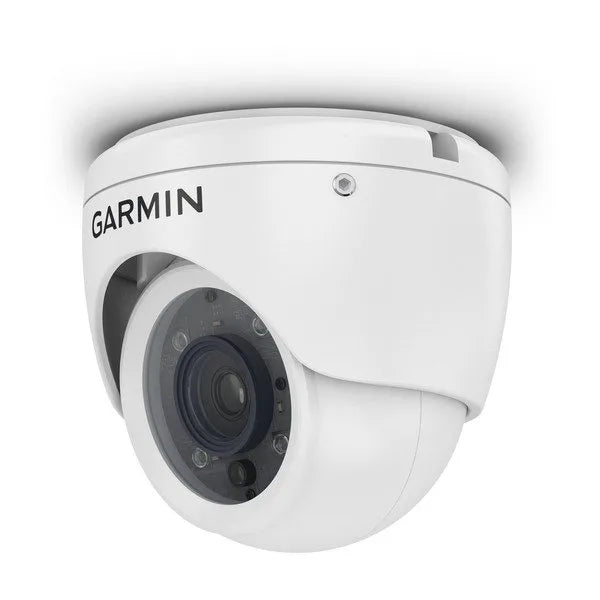

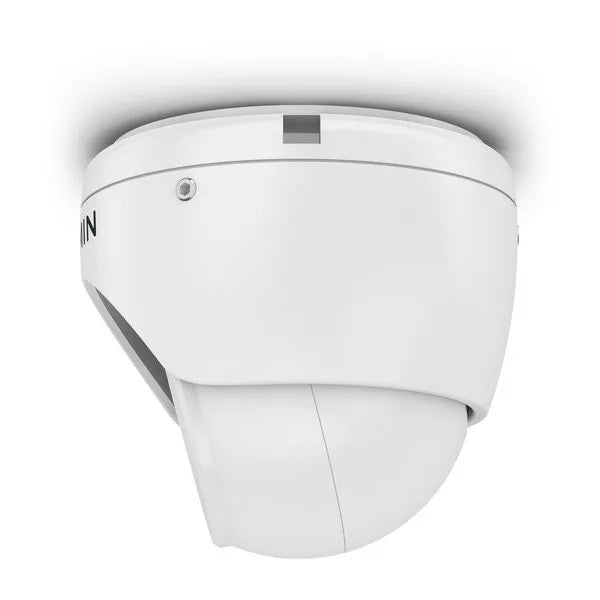

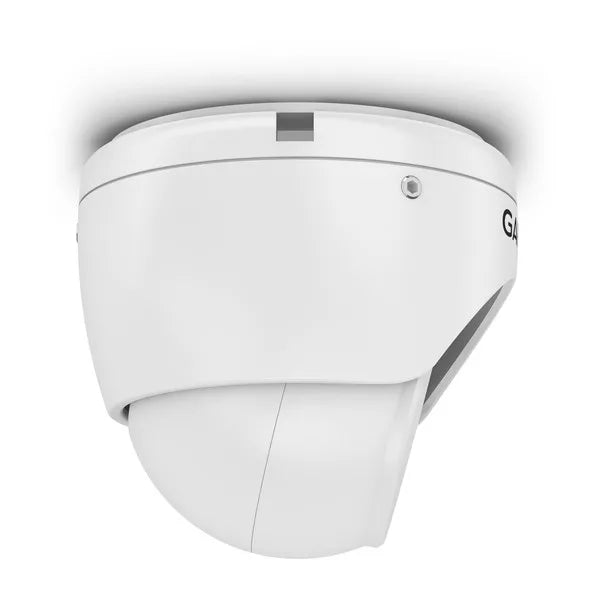

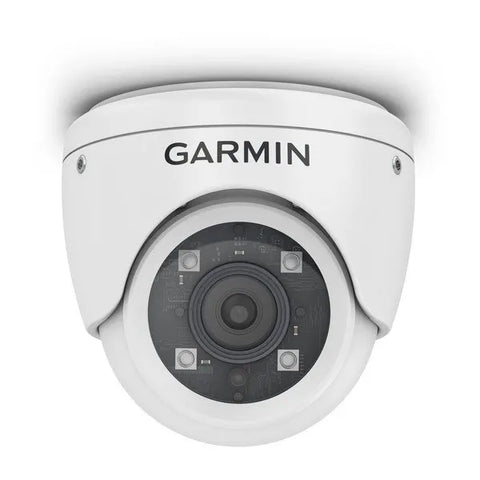

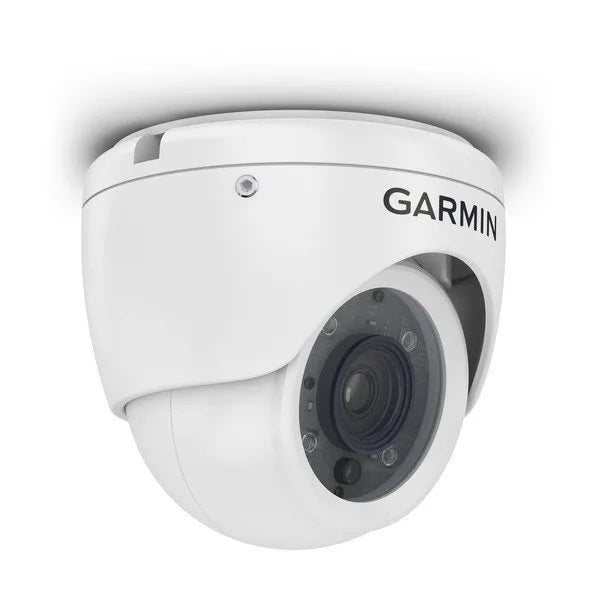

GC™ 200 Marine IP Camera
