General |
|
| Unit size | 98 x 197 x 149 mm (3.9" x 7.8" x 5.8") |
|---|---|
| Weight | Without microphone 42.8 oz (1.2 kg)
With microphone 8.8 oz (0.25 kg) |
| Operating voltage | 10.8 - 15.6 VDC |
| Water rating | IPX7 |
| Display Type | monochrome FSTN LCD |
| Operating temperature | –15° to 55° C (5° to 131° F) |
| Inland waterways (ATIS) | |
| Multi-language interface | |
VHF Features |
|
| Dual/Tri watch | |
|---|---|
| NOAA weather alert | |
| Loud hailer | |
| Loud Hailer listen-back | |
| Intercom support | |
VHF Radio |
|
| Region | All U.S., Canadian and International marine channels; NOAA weather channels |
|---|---|
| VHF frequency range Tx | 156.025–162.025 MHz |
| VHF frequency range Rx | 156.050 MHz to 163.275 MHz (including WX channels) |
| VHF transmit power (max) | 25 W, 1 W (high, low) |
| Transmitter frequency tolerance | +/0.5 kHz |
| Adjacent channel power | 70 dB |
| Spurious emissions | –80 dBc (at 25 W) / 0.25uW |
| Sensitivity (12 dB SINAD) | -118 dBm (-11 dBu/0.28 uV) |
| Adjacent channel selectivity | 70 dB |
| Spurious response | 70 dB |
| VHF intermodulation | 68 dB |
| Max antenna gain | 9 dBi |
DSC |
|
| Class | Class D |
|---|---|
| Sensitivity (1% BER) | -113 dBm |
| Adjacent channel selectivity | 70 dB |
| Spurious response | 70 dB |
| Intermodulation | 68 dB |
AIS Transponder Features |
|
| Remote station support | GHS 11 (x1) |
|---|---|
GNSS |
|
| Integrated GNSS receiver | |
|---|---|
| Integrated GNSS antenna | |
| Constellations | GPS, GLONASS |
| Differential support | WAAS, EGNOS |
| Navigation rate | 1 Hz |
Sensors |
|
| NMEA 2000 Compatible | |
|---|---|
| NMEA 0183 Compatible | |
Audio |
|
| Max speaker output power | 1 W |
|---|---|
| Max external speaker output power | 4 W at 4 Ω |
| Max hailer loudspeaker output power | 20 W at 4 Ω |
Electrical Features |
|
| Typical current draw at 12 Vdc | 600 mA, 6 A max |
|---|---|
| Compass-safe distance | 75 cm (29.5") |
Networking & Connections |
|
| External GNSS antenna connector | BNC |
|---|---|
| Ant connector | SO-239 (50 Ω) |

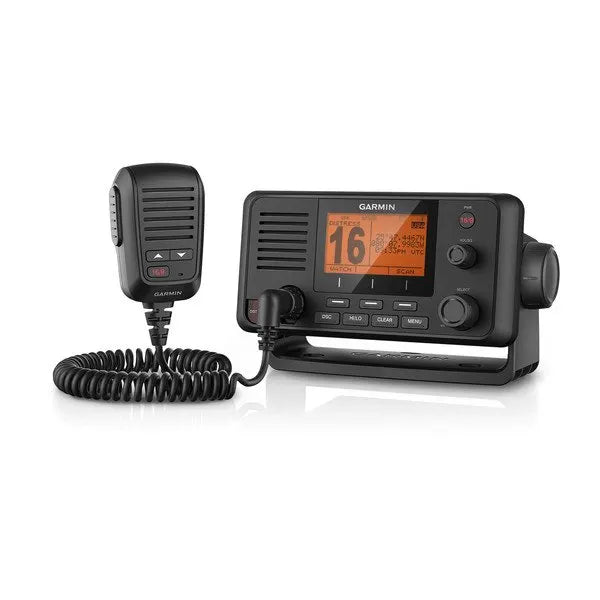

VHF 215 Marine Radio
