General |
|
| Unit size | 175 x 142 x 55 mm (6.9" x 5.6" x 2.1") |
|---|---|
| Weight | 0.9 lb (414 g) |
| Operating voltage | 9.6 - 31.2 VDC |
| Water rating | IPX7 |
| Operating temperature | -15°C to 55°C (5°F to 131°F ) |
| Splitter connector | TNC |
VHF Radio |
|
| Spurious response | 70 dB |
|---|---|
| Max antenna gain | 6 dBi |
AIS Transponder Features |
|
| AUX VHF splitter | |
|---|---|
AIS |
|
| Class | SOTDMA Class B; CSTDMA Class B (optional) |
|---|---|
| Long range position reports (Msg 27) | |
| Frequency range | 156.025 – 162.025 MHz |
| AIS Sensitivity (20% PER) | -110 dBm |
| Adjacent channel selectivity | 70 dB |
| Intermodulation | 65 dB |
| Splitter insertion loss | RX 0 dB, TX -0.9 dB |
GNSS |
|
| Integrated GNSS receiver | |
|---|---|
| Integrated GNSS antenna | |
| Constellations | GPS, GLONASS, Galilleo |
| Differential support | SBAS, AIS Msg 17 |
| Navigation rate | 1 Hz |
Sensors |
|
| NMEA 2000 Compatible | |
|---|---|
| NMEA 0183 Compatible | |
Tactical Features |
|
| Stealth Mode | |
|---|---|
Electrical Features |
|
| Typical current draw at 12 Vdc | 400 mA |
|---|---|
| Compass-safe distance | 40 cm (15.8") |
Sonar Features |
|
| Power output | 5 W |
|---|---|
Networking & Connections |
|
| NMEA 0183 detail | 1 NMEA 0183 port, AIS & GPS sentences, 4800/38400 baud |
|---|---|
| External GNSS antenna connector | BNC |
| Ant connector | SO-239 (50 Ω) |

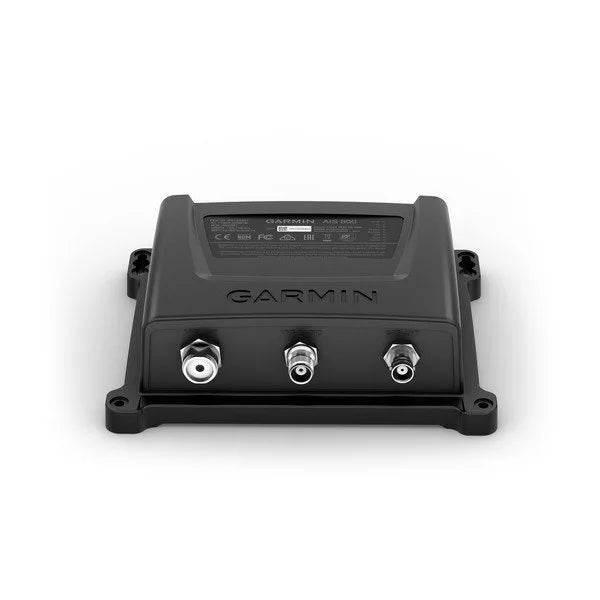

AIS 800 Blackbox Transceiver
