General |
|
| Dimension | 9.9"×7.6"×2.6" (251 mm × 192 mm × 66 mm) |
|---|---|
| Weight | 1.86 lbs (845 g) |
| Water rating | IPX7 |
| Temperature range | From 5°F to 158°F (from -15°C to 70°C) |
Electrical Features |
|
| Power input | 10-35 V |
|---|---|
| Power usage | 10.5 W maximum |
| Fuse | 4.0 A |
| Compass-safe distance | 10.2 in. (26 cm) |
Sonar Features |
|
| Ultra High-Definition ClearVü | |
|---|---|
| Ultra High-Definition SideVü | |
| Frequency | Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,020-1,230 kHz |
| Transmit power | 500 W rms |
| Maximum depth | 200' Ultra High-Definition ClearVü 125' to each side Ultra High-Definition SideVü, 250' total, at a maximum depth of 30' |
Transducer Support |
|
| Ultra High-Definition ClearVü | |
|---|---|
| Ultra High-Definition SideVü | |
Networking & Connections |
|
| Garmin Marine Network Ports | 3 |
|---|---|

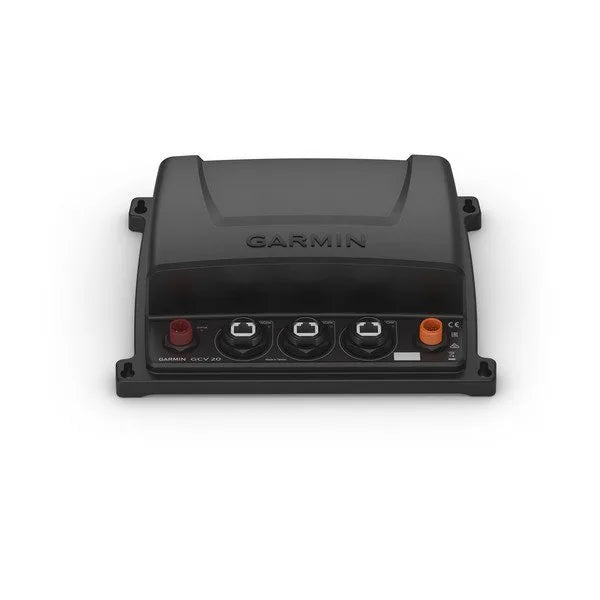

Scanning Sonar Black Box
