General |
|
| Dimension | 3.9" x 3.1" x 3.8" (100.3 x 79.4 x 97.1 mm) |
|---|---|
| Weight | 14.7 oz (418.0 g) |
| Water rating | IPX7 |
| Display Type | sunlight-visible, transflective memory-in-pixel (MIP) |
| Display Size | 1.00"W x 0.42"H (2.5 x 1.1 cm); 2.0" diag (5.0 cm) |
| Display resolution | 160 x 68 pixels |
| Battery Type | 2 lithium AAA (not included) |
| Battery life | up to 1 year |
| Operating range | -20° C (-4° F) to 60° C (140° F) with two AAA lithium batteries |
| Laser classification | Class 1 |
Sensors |
|
| GPS | |
|---|---|
| Compass | |
Scope Features |
|
| Colored pins | 2 colors (red and green) |
|---|---|
| Pin diameter | .007” and larger for red, .009” and larger for green |
| Ranging distance | 100 yards to game; 300 yards to reflective targets |
| Glass lens coating | target side is anti-reflective, water repellant and easy clean archer side is 20% reflective, water repellant and easy clean |
| Light projection | no visible light is ever projected toward the target |
| Pin brightness | ambient light sensor controlled or manual |
| Silent button trigger | |
| Shot counter | |
| Customizable fixed pins | |
| Laser Locate™ feature | |
| Multiple arrow profiles | |
| Shot dynamics | |
| Compatible with Garmin GPS devices | |
| Electronic level | |
| Angle compensated distance | |
| Auto brightness | |

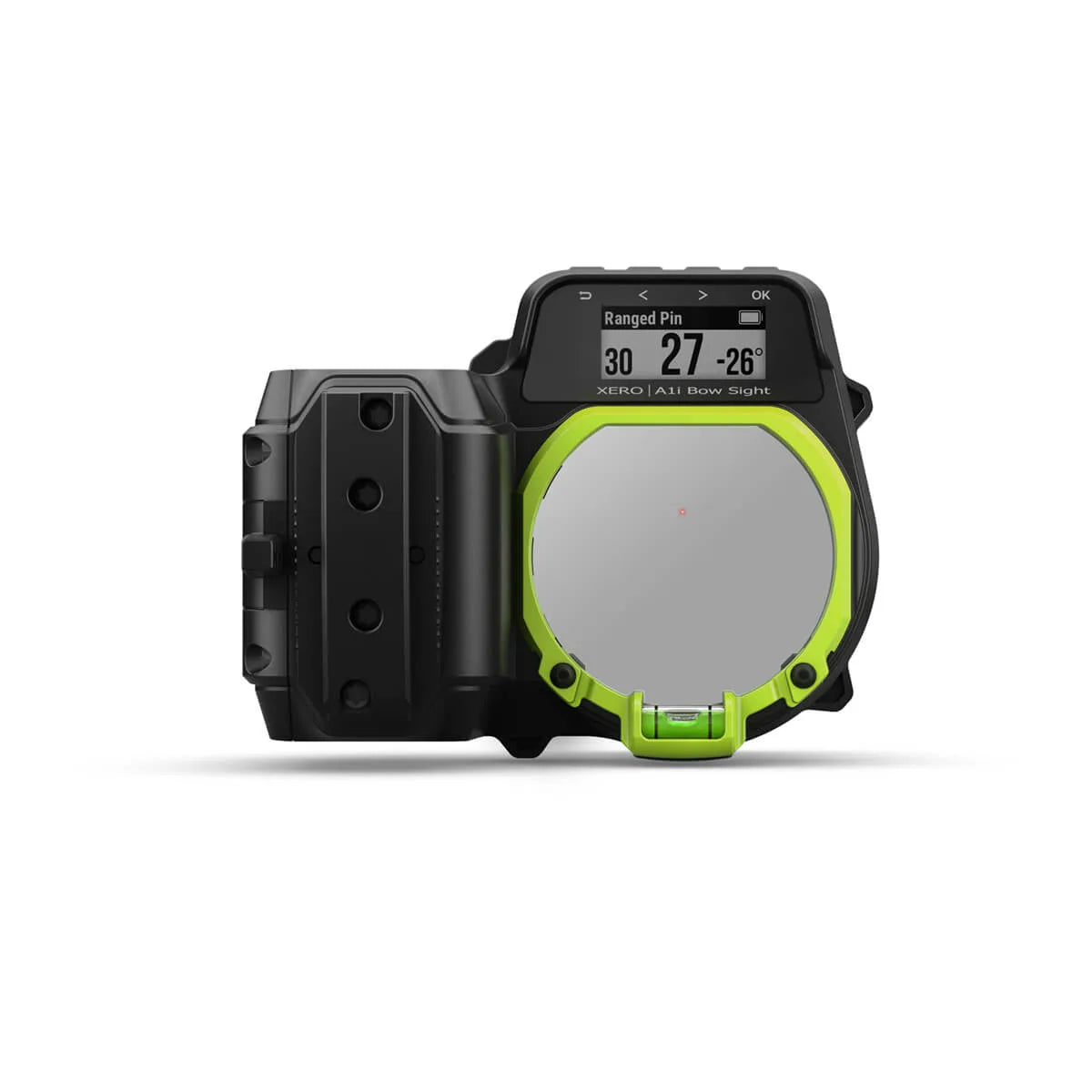

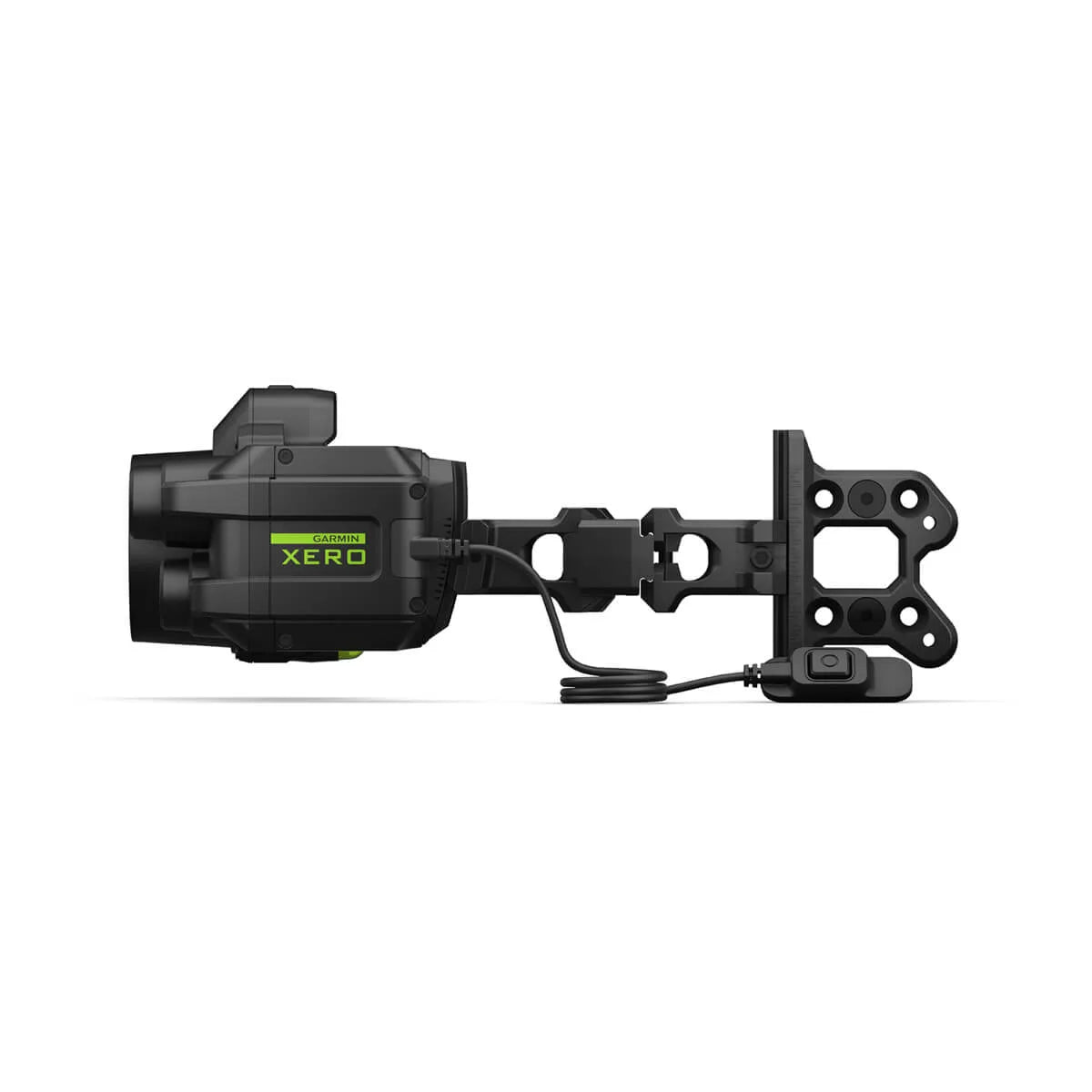

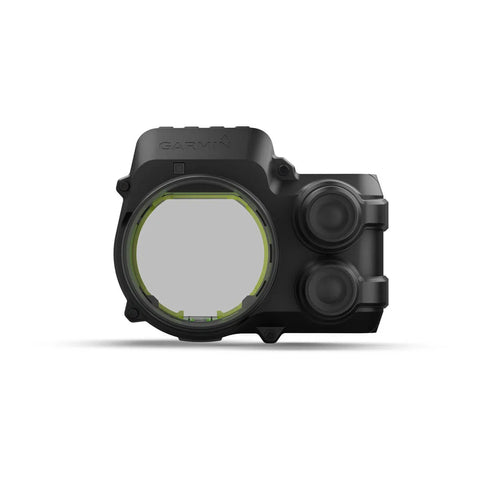

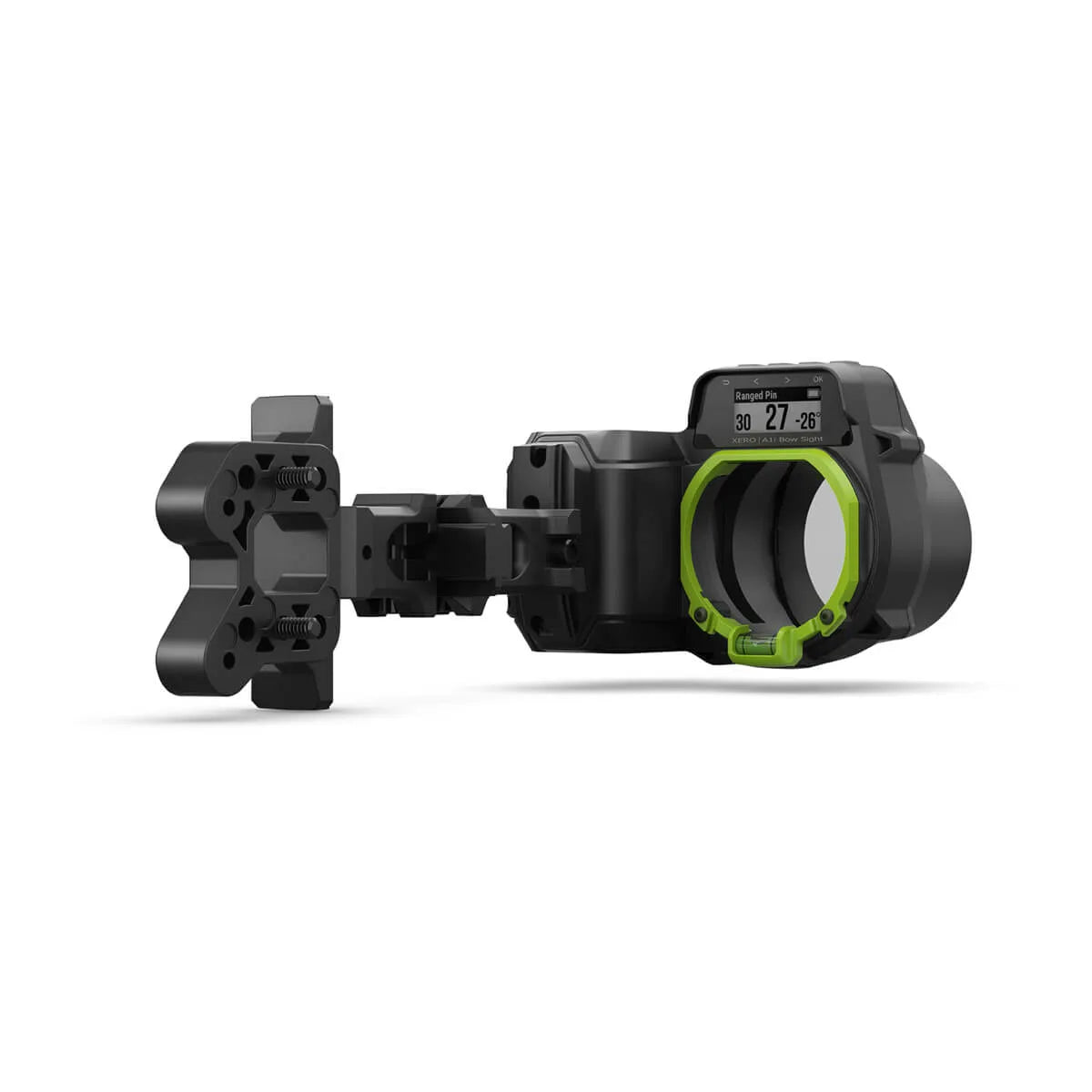

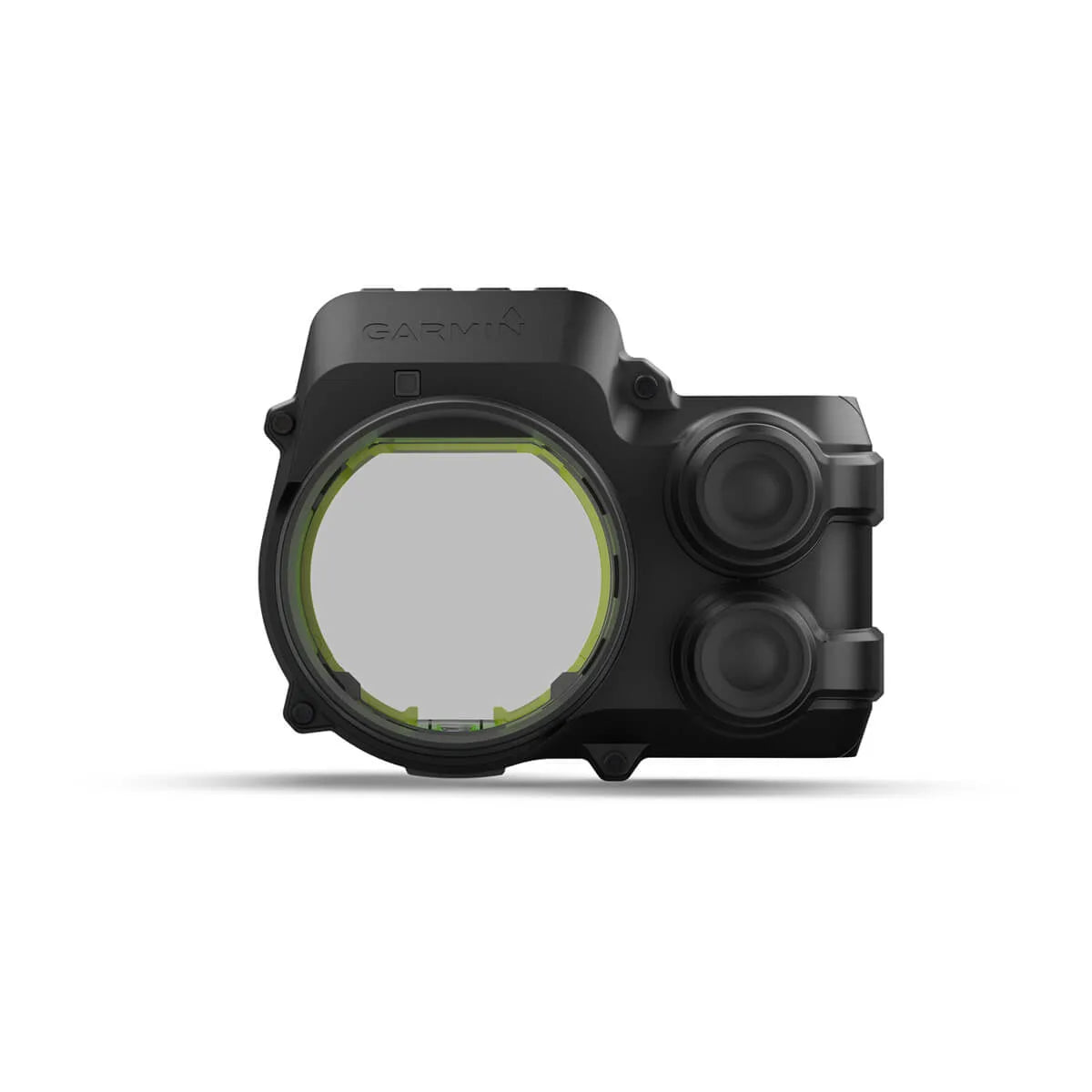

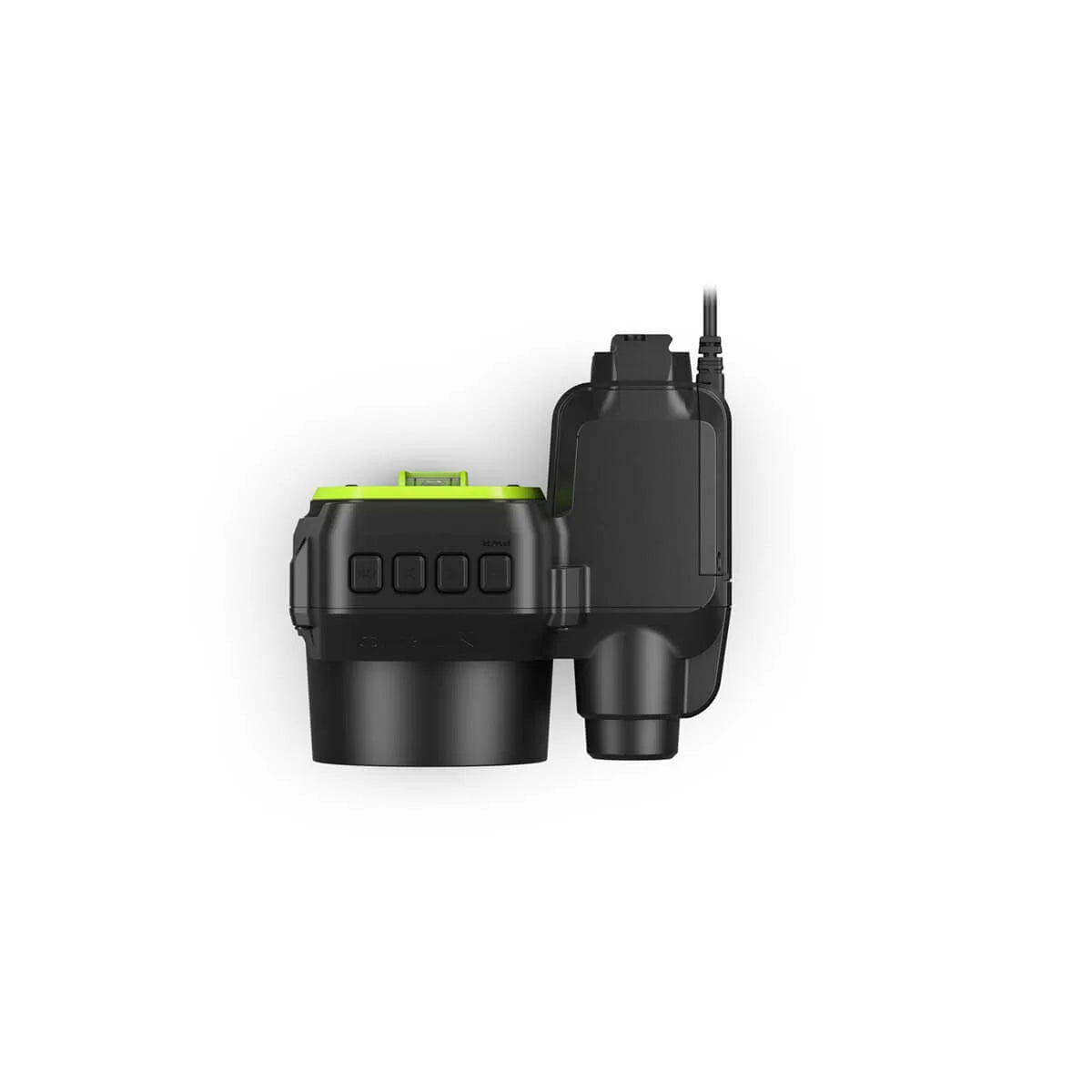

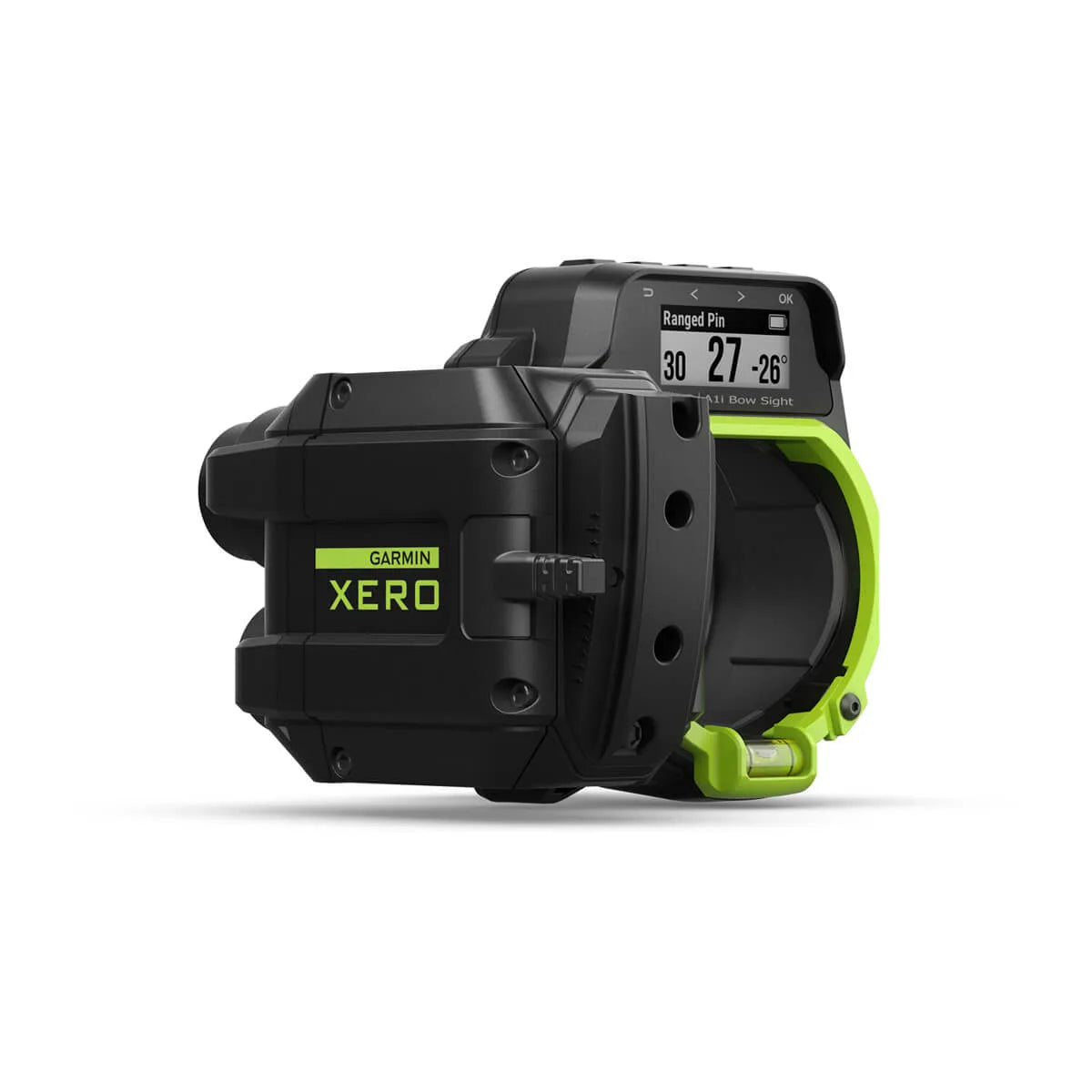

Auto-ranging Digital Sight with Dual-color LED Pins
