Physical
- Unit dimensions, WxHxD: 4.9" x 1.3" x 3.4" (12.44 x 3.30 x 8.64 cm)
- Weight: 0.75 lbs (0.34 kg)
- Anti-slip mat (bottom of unit only)
Performance
- Operating temperature: -20°C to +60°C (-4°F to 140°F)
- Operating altitude: To 55,000 ft
- Nominal operating velocity range: 0 – 800 kts (411 m/s)
- Power input: 10 to 32 VDC, 3.5 W max.
- Battery type: Lithium-ion rechargeable (built-in)
- Charge temperature: Unit may not charge at extreme temperatures below 0° C (32° F) or above 32° C (90° F)
- Typical battery operating time: 8 hours
Connections
- 18-pin power and data connector

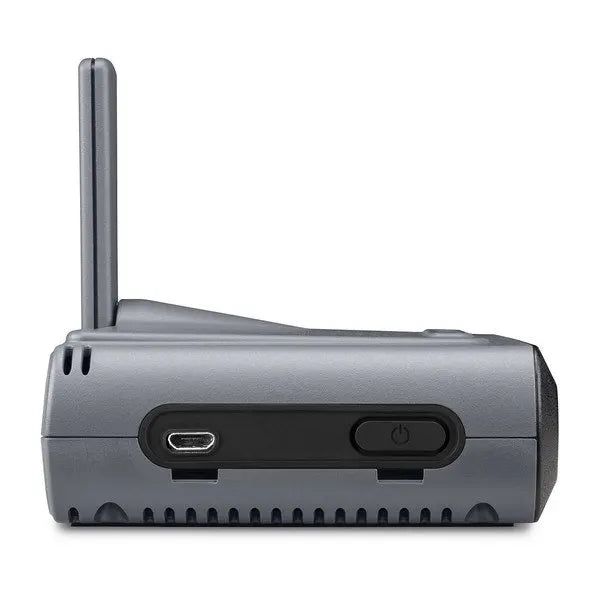

- microUSB

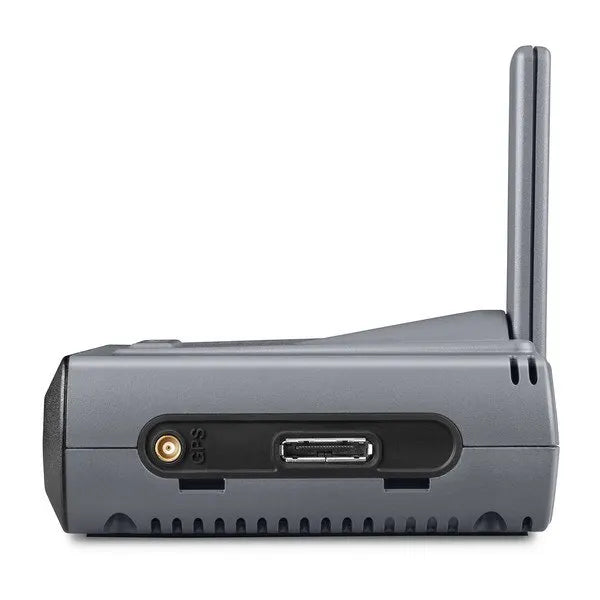

- ADS-B MCX antenna port
- GPS MCX antenna port
- Wireless Connext™ (Bluetooth®)
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

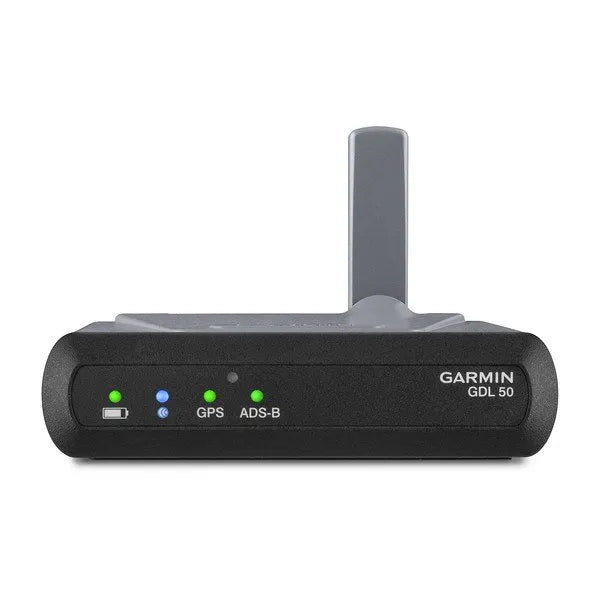

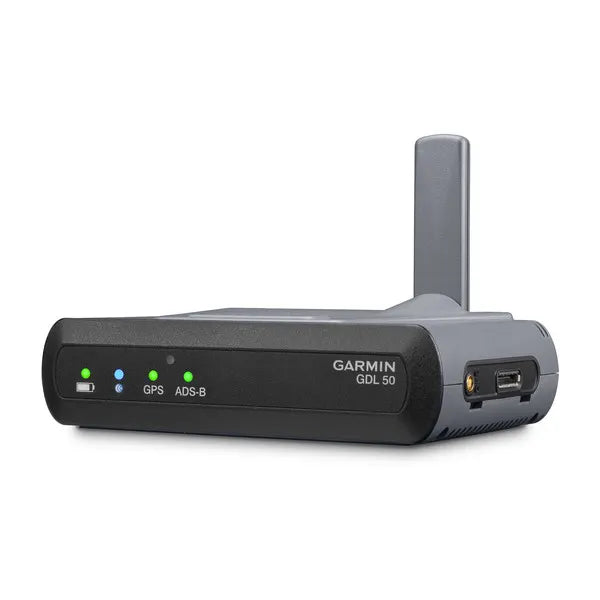

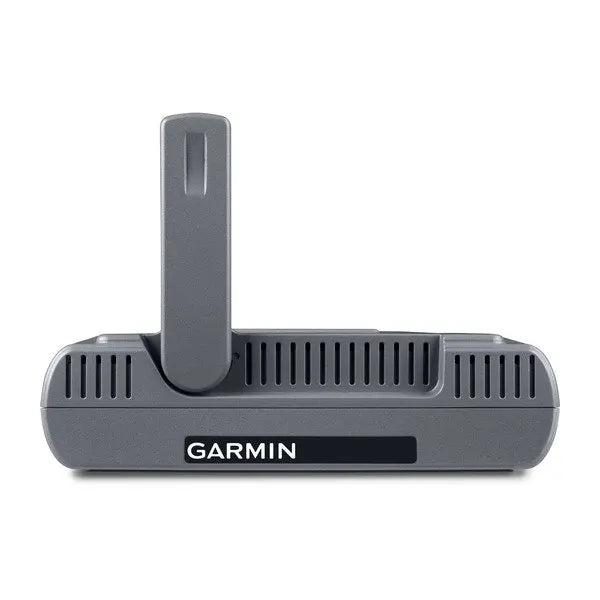

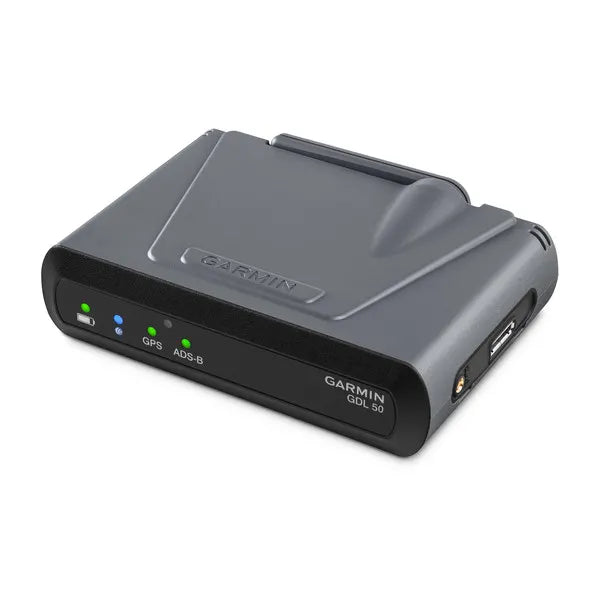

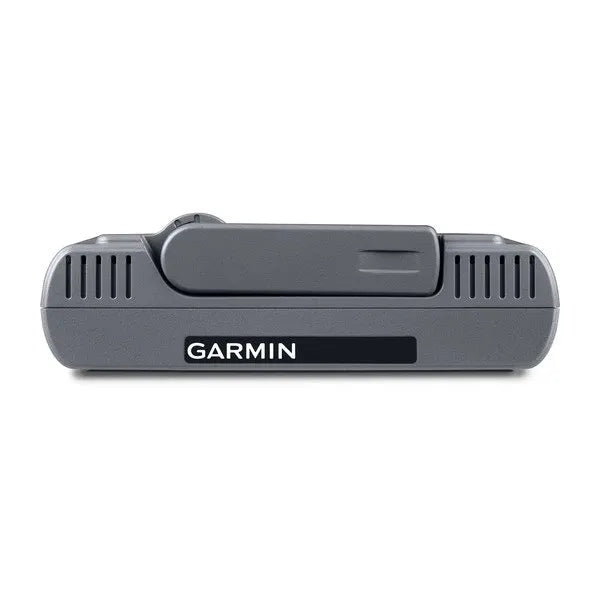

Portable ADS-B Receiver
