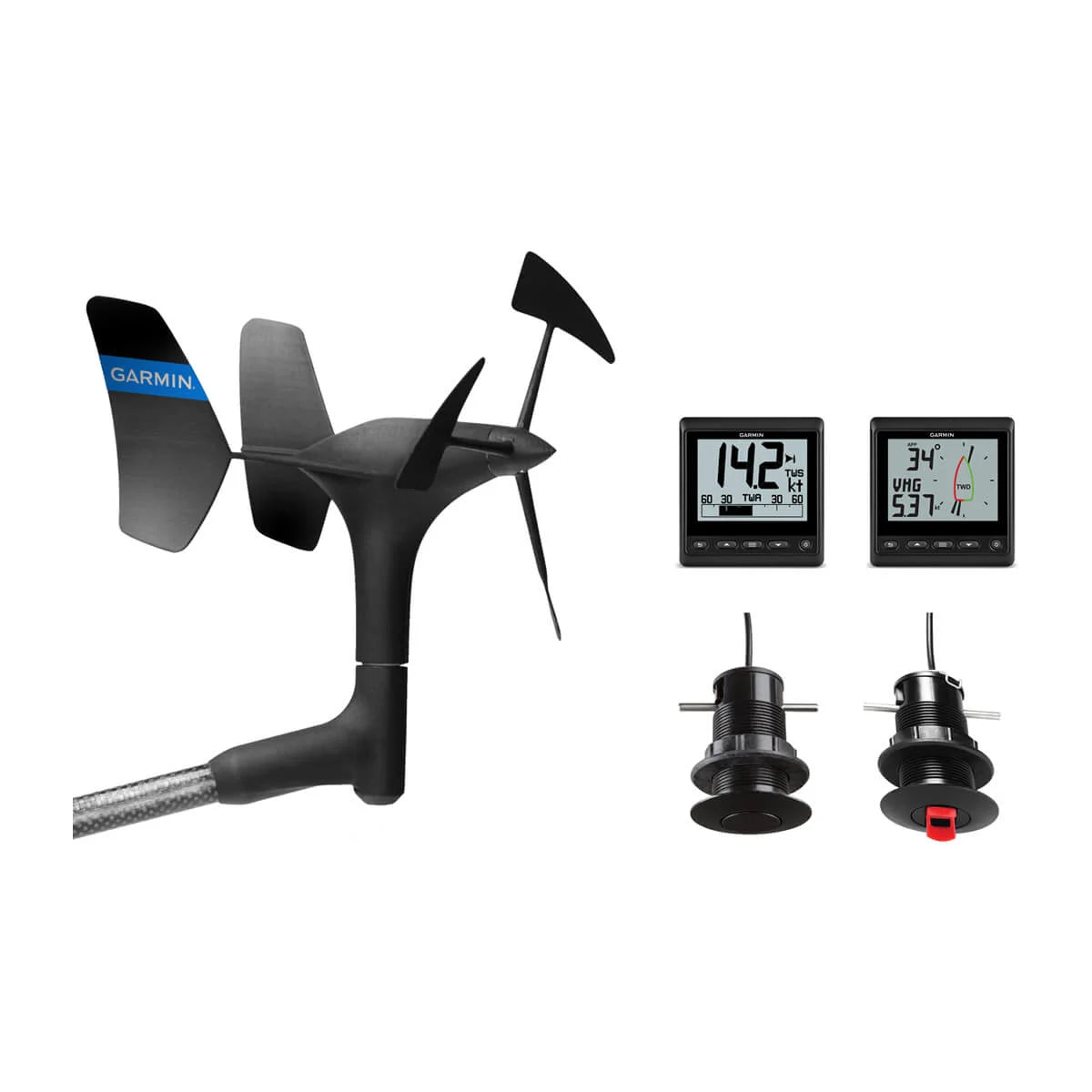

GNX™ Wired Sail Pack 43

gWind Transducer

• Unit Dimension, WxH: 13.6" x 24" (345 mm x 610 mm)
• Weight: 260 g
• Cable Length: 25 m
• Waterproof: Yes (IPX6¹)
• Temp Range: From 5°F to 158°F (-15°C to 70°C)
• Storage Temperature: From -4°F to 176°F (-20°C to 80°C)
• Voltage Range: 9-16V
• Power Usage: 0.33W
• Typical Current Draw at 12 VDC: 28 mA
• Compass Safe Distance: N/A
• Accuracy Angle: Better than ±1.5°
• Speed: Better than ±3%
• Wind Speed Range: 0. 8-90 knots (0. 4-50 m/s)
• NMEA 2000® Load Equivalency Number (LEN): N/A
• Wireless Connectivity: No

GNX Wind instrument

• Physical dimensions: 4.3" x 4.5" x 1.2" (110 x 115 x 30 mm)
• Display size, WxH: 3.3" x 2.4"; 4.0" diagonal (83 x 60 mm; 101.6 mm diagonal)
• Weight: 8 oz (230 g)
• Water rating: IPX7
• NMEA 2000 certified: Yes
• Power consumption: 0.35 W (day); 0.4 W (night)
• Voltage range: 9-16 V (from NMEA 2000)
• Mounting options: Flush or Flat
• Temperature range: From 5 to 158 degrees F (from -15 to 70 degrees C)
• Compass-safe distance: 8.25" (209 mm)

GNX 20 instrument

• Physical dimensions: 4.3" x 4.5" x 1.2" (110 x 115 x 30 mm)
• Display size, WxH: 3.3" x 2.4"; 4.0" diagonal (83 x 60 mm; 101.6 mm diagonal)
• Weight: 8.0 oz (230 g)
• Water rating: IPX7
• NMEA 2000 certified: Yes
• Power consumption: 0.35 W (day); 0.4 W (night)
• Voltage range: 9-16 V (from NMEA 2000)
• Mounting options: Flush or Flat
• Temperature range: From 5 to 158 degrees F (from -15 to 70 degrees C)
• Compass-safe distance: 8.25" (209 mm)
